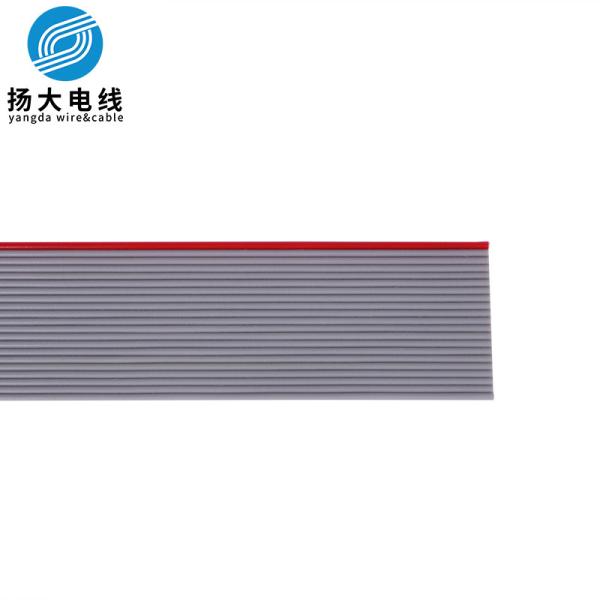

26 Pin Flat Flex Ribbon Cable 28 Awg 1.27mm Pitch With PVC Insulation
26 Pin Flat Flex Ribbon Cable 28 Awg 1.27mm Pitch With PVC Insulation
26 Pin Flat Flex Ribbon Cable 28 Awg 1.27mm Pitch With PVC Insulation
26 Pin Flat Flex Ribbon Cable 28 Awg 1.27mm Pitch With PVC Insulation
26 Pin Flat Flex Ribbon Cable 28 Awg 1.27mm Pitch With PVC Insulation
26 Pin Flat Flex Ribbon Cable 28 Awg 1.27mm Pitch With PVC Insulation
26 Pin Flat Flex Ribbon Cable 28 Awg 1.27mm Pitch With PVC Insulation
26 Pin Flat Flex Ribbon Cable 28 Awg 1.27mm Pitch With PVC Insulation
Specifications
MOQ :
3050m
Price :
0.02usd per meter
Payment Terms :
T/T
Brand Name :
YANGDA
Model Number :
2651
Certification :
UL
Place of Origin :
CHINA
Supply Ability :
1000000 per week
Delivery Time :
5-8days
Packaging Details :
rolls in carton
Material :
PVC
Color :
Gary and red
specification :
28,24,22
Pitch :
1.0,1.27,2.0,2.54
rating :
300V
Standard :
UL758
Description

UL approved PVC insulation ul2651 28awg 1.27mm pitch 26 Pin Flexibble Flat Ribbon Cable

Product Description:

1.Tinned,annealed,stranded or solid copper conductor.

2.Color -coded PVC insulation.

3.Rated temperature:105°C .Rated voltage:300volts

4.Uniform thickness of wire to ensure easy stripping and cutting.

5.Passes UL VW-1&CSA FT1 vertical flamt test.

6.Executed standard:UL758.UL1581.CSA22.2.

Applications:

For use in internal wiring of appliances,Computers.

UL Style & CSA Type Cores Conductor Pitch Insulation
Thickness		 Overall Dianeter Conductor
Resistance at 20℃
AWG mm mm mm mm Ω/KM
UL2651
(Stranded)		 9 28 7/0.12 1.27 0.23 0.9×11.43 239.00
10 0.9×20.32
14 0.9×12.70
15 0.9×17.78
16 0.9×19.05
20 0.9×25.40
25 0.9×31.75
26 0.9×33.02
30 0.9×38.10
34 0.9×43.18
36 0.9×45.72
40 0.9×50.80
50 0.9×63.50
60 0.9×76.20

26 Pin Flat Flex Ribbon Cable 28 Awg 1.27mm Pitch With PVC Insulation
