Ul1354 28awg PE PTFE Insulation With Braid Shield Coaxial Cable For Tv Tvr Radio
Ul1354 28awg PE PTFE Insulation With Braid Shield Coaxial Cable For Tv Tvr Radio
Ul1354 28awg PE PTFE Insulation With Braid Shield Coaxial Cable For Tv Tvr Radio
Ul1354 28awg PE PTFE Insulation With Braid Shield Coaxial Cable For Tv Tvr Radio
Ul1354 28awg PE PTFE Insulation With Braid Shield Coaxial Cable For Tv Tvr Radio
Ul1354 28awg PE PTFE Insulation With Braid Shield Coaxial Cable For Tv Tvr Radio
Specifications
MOQ :
5000m
Price :
0.6USD PER METER
Payment Terms :
T/T
Supply Ability :
100000 PER WEEK
Delivery Time :
10DAYS
Packaging Details :
CARTON
Brand Name :
YANGDA
Model Number :
1354
Certification :
UL,ISO,CSA,VDE
Place of Origin :
CHINA
Material :
PE
Color :
Blue, Transparent, black, clear, can be customized
Type :
Customized
Thickness :
15mic-50mic, 10~40MIC, 0.6mil--20mil, 30mic-200mic, 5-200mm
Processing Type :
Extrusion
Feature :
Flamed Retardant
Length :
2000ft
Application :
TV,TVR,Radio
Product Name :
Factory price polyethylene wrapping of Pallet Shrink Wrap, PP, HDPE pipe, 23 micron strech film for pallet shrink wrap film, PE
Specification :
Multi
Standard :
UL
Packing :
Carton Box
Description

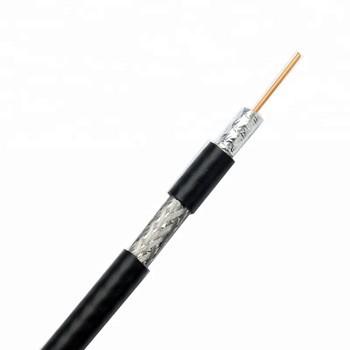

UL1354 28AWG PE Insulation with Braid Shield Coaxial Cable for TV, TVR, radio

Ul1354 28awg PE PTFE Insulation With Braid Shield Coaxial Cable For Tv Tvr Radio

Product Description

1. The conductor uses a single or stranded wire of 40AWG or more, bare soft copper or tinned soft copper wire.
Solid, foamed or flame resistant PE insulation.
2.Woven isolation of bare soft copper or tinned soft copper wire.
3.Low loss, low latency and interference can be minimized.
4.Rated temperature: 60 degrees or 80 degrees,

5.rated voltage: 30 volts.
6.Can pass the UL VW-1 vertical flame resistance test.
7.Reference standard: UL 758, UL 1581.

Rated temperature: 60℃ or 80℃
Rated voltage: 30V
Reference Standard: UL Subject 758, UL1581 & CSA C22.2 NO.210.2
Tinned or bare, stranded or solid copper conductor, 40 AWG minimum
Solid foamed or FRPE insulation
Tinned or bare copper wire spiral or braid shield
Passes UL VW-1 & CSA FT1 vertical flame test
Application: For internal or external wiring of TV, radio, receiver, VTR and
tape recorder,etc.

CHARACTERISTIC
High temperature resistance, low temperature resistance, anti-acid, anti-oil, antisepsis and moisture, UL758 & UL1581, RoHS compliance, passed VW-1.

APPLICATION


Apply to Household appliance, Illumination & Lighting & Headlamp, electric machines, temperature sensor, Military Series, Metallurgy Chemical series, Motor cars & Ships, Electrical Installation.

Item UL Certificated Coaxial Cable UL1354Conductor

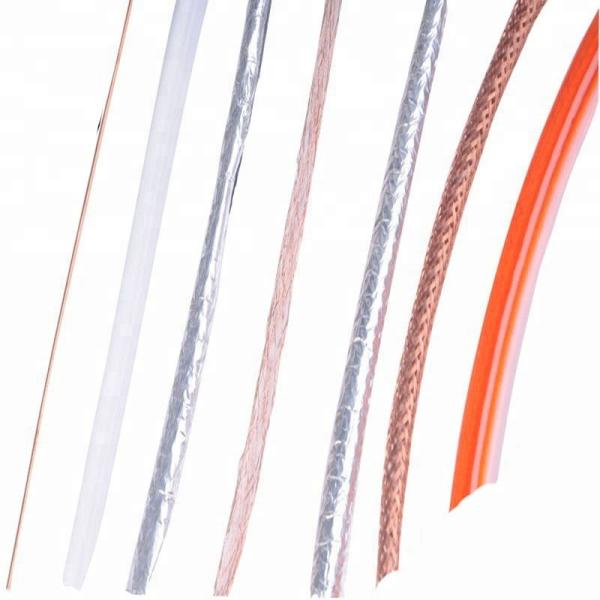

CABLE CONSTRUCTION

CONDUCTOR

INSULATION

BRAID

JACKET

CHARACTERISTIC

IMPEDANCE

(Ω)

AWG

CONSTR-

UCTION

(No./mm)

DIA.

(mm)

INSULATION

THICKNESS

(mm)

O.D.

(mm)

CONSTRUCTION

(No./No./mm)

JACKET

THICKNESS

(mm)

O.D.

(mm)
30

1/0.254

7/0.10

0.25

0.30

0.68

0.65

1.60

1.90

16/4/0.10

16/5/0.10

0.80

0.80

3.60

3.90

75

75
28

1/0.32

7/0.127

0.32

0.38

0.84

0.41

2.00

1.20

16/4/0.12

16/3/0.10

0.81

0.80

4.10

3.20

75

50
26

1/0.404

7/0.16

0.40

0.48

0.45

0.59

1.30

1.65

16/3/0.12

16/4/0.12

0.81

0.79

3.40

3.70

50

50
24 7/0.20 0.60 0.66 1.90 16/4/0.12 0.81 4.00

50

Conductor Insulation Braid Shield
No./No./mm 		Jacket
AWG No./mm Dia.
mm		 Nom. Thick.
mm		 Nom.Dia.
mm		 Spiral Shield
No./mm		 Nom. Thick.
mm		 Nom.Dia.
mm
30 7/0.1 0.30 0.37 1.05 *34/0.1 0.18 1.60
28 7/0.127 0.38 0.61 1.6 16/5/0.1 0.46 3.00
28 7/0.127 0.38 0.61 1.6 *42/0.12 0.35 2.55
26 7/0.16 0.48 0.51 1.5 16/5/0.1 0.30 2.50
21 19/0.18 0.91 1.02 2.95 16/8/0.12 0.74 4.90
