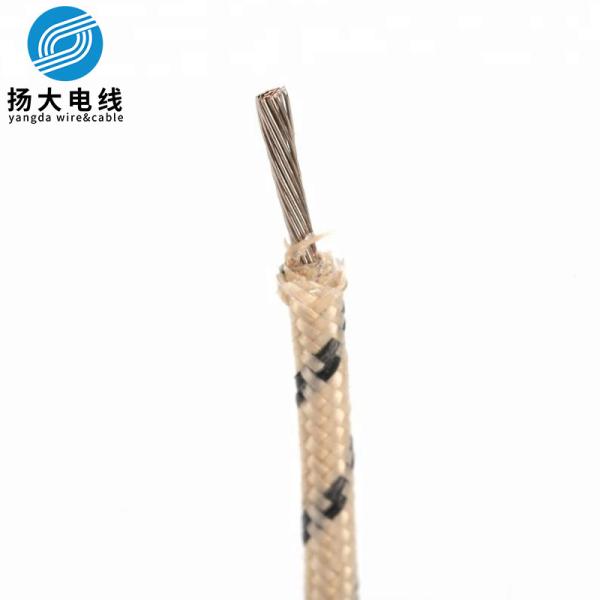

30awg-12awg Fiberglass Braided Silicon Rubber Wire Tinned Copper Conductor
30awg-12awg Fiberglass Braided Silicon Rubber Wire Tinned Copper Conductor
30awg-12awg Fiberglass Braided Silicon Rubber Wire Tinned Copper Conductor
30awg-12awg Fiberglass Braided Silicon Rubber Wire Tinned Copper Conductor
30awg-12awg Fiberglass Braided Silicon Rubber Wire Tinned Copper Conductor
30awg-12awg Fiberglass Braided Silicon Rubber Wire Tinned Copper Conductor
Specifications
Brand Name :
YANGDA
Model Number :
3135
Certification :
UL
Place of Origin :
CHINA
MOQ :
6100M
Price :
0.17 USD PER METER
Payment Terms :
T/T
Supply Ability :
2000000 METERS PER MONTH
Delivery Time :
12DAYS
Packaging Details :
CARTON
MATERIAL :
SILICON RUBBER
SIZE :
30AWG-12AWG
RATED VOLTAGE :
600V
CONDUCTOR :
TINNED COPPER
COLOR :
RED,BLACK,ETC.
Description

Flame Retardant Cable Ul 3069 Ul 3070 Fiberglass Braided Silicon Rubber Insulated Heat Resistance Copper Wire

Product Description:

1)Conductor: 18AWG - 12AWG

2)Tinned,annealed,stranded or solid copper conductor.

3)Silicone Rubber insulation Braid:Fiberglass+Silicone

4) Rated temperature: 150 °C .Rated voltage:600volts

5) Uniform thickness of wire to ensure easy stripping and cutting.

6) Passes UL VW-1&CUL FT1 vertical flame test

7) Top coated conductor is available

Applications:

Apply to Household appliance,lumination&Lighting

Metallurgy&Headlamp,electric machines,tempurature

sensor,Military series,Metallurgy Chemical series,

Motor cars&Ships,Electrical installation

UL Style& Cul Type Conductor
Insulation
Thickness
Overall
Diameter
 Standard Put-up
Conductor
Resistance at 20°C
AWG No/mm mm mm Ft/Reel M/Reel Ω/KM
UL3070
CUL AWM I A
(Stranded)
 18 7/0.39 0.76 3.05 1000 305 23.20
34/0.178 0.76 3.05 1000 305
16 7/0.5 0.76 3.39 1000 305 14.60
26/0.25 0.76 3.39 1000 305
14 37/0.26 0.76 3.74 1000 305 8.96
41/0.25 0.76 3.74 1000 305
12 45/0.32 0.76 4.30 1000 305 5.64
65/0.25 0.76 4.30 1000 305
UL3070
CUL AWM I A
(Stranded)
 18 1/1.02 0.76 2.84 2000 610 21.80
16 1/1.29 0.76 3.11 1000 305 13.70
14 1/1.63 0.76 3.45 1000 305 8.62
12 1/2.05 0.76 3.87 1000 305 5.43

Part NO. Conductor Insulation

Braild thick

mm

MaximumResistanceat20℃

Ω/km
AWG NO./mm Dia.mm

Nom.Thick.

mm

 Nom.Dia.mm
UL3069 26 7/0.160 0.48 0.76 2.04 0.15 139.76
24 11/0.160 0.61 0.76 2.17 0.15 88.36
22 17/0.160 0.76 0.76 2.32 0.15 60.16
20 21/0.178 0.94 0.76 2.5 0.15 38.58
Product Description:
1. Rated temperature:150℃
2. Rated voltage:600V
3. Reterence standard:UL Subject 758, UL1581, UL62
4. Tinned or bare,stranded or solid copper conductor
5. Colour-coded silicone rubber insulation
6. Covering for fiberglass braid
7. Uniform insulation thickness to ensure easy stripping and cutting
8. Passes UL VW-1, FT2 flame test

30awg-12awg Fiberglass Braided Silicon Rubber Wire Tinned Copper Conductor
