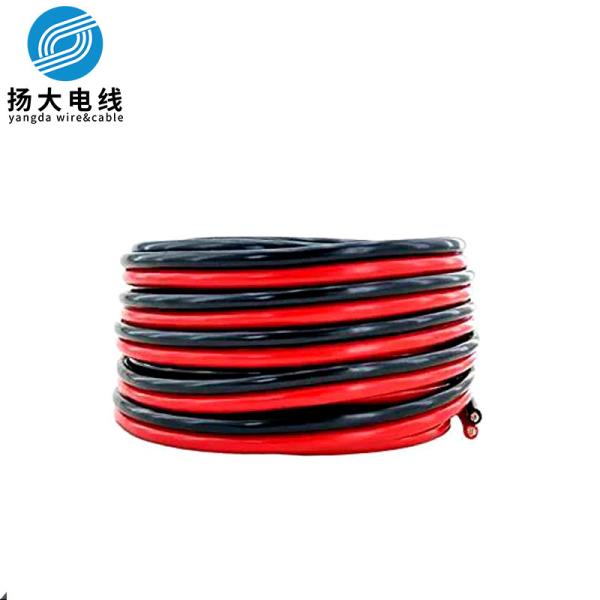

TPE Insulation Tinned Copper PUR Cable Durable For Electronic Product
TPE Insulation Tinned Copper PUR Cable Durable For Electronic Product
TPE Insulation Tinned Copper PUR Cable Durable For Electronic Product
TPE Insulation Tinned Copper PUR Cable Durable For Electronic Product
TPE Insulation Tinned Copper PUR Cable Durable For Electronic Product
TPE Insulation Tinned Copper PUR Cable Durable For Electronic Product
Specifications
Brand Name :
YANGDA
Model Number :
21498
Certification :
ul
Place of Origin :
CHINA
MOQ :
6100 meters
Price :
0.46 usd per meter
Payment Terms :
T/T
Supply Ability :
100000 meters per day
Delivery Time :
10 days
Packaging Details :
rolls in carton
Material :
TPE
Color :
Black,white
Specification :
customised
Temperature :
60 deg.
Voltage :
30V
Type :
Low Voltage,Medium Voltage,Insulated,Customizable
Jacket :
TPE
Insulation material :
PP,PE,FR-PE
Application :
Underground,Construction,industrial,in tunnel,indoor
Product name :
600v 1000v multi core xlpe /pvc armoured power cable 5x120mm2,multi conductor electric cable,XLPE Insulated Armoured Shielded Cable,Promotional multi core OEM 240mm xlpe 4 core armoured cable,AA-8000 aluminum alloy conductor MC cable
Rated voltage :
0.6/1KV
Conductor :
Copper Core
Standard :
CSA
Insulation :
PP,PE,FR-PE
Conductor type :
solid,compacted or shaped stranded copper or aluminium conductor,Stranded,Round Conductor/ Sector Conductor
Core :
2 cores
Description

Electrical Wire Cable Ul 21498 Tpe Insulation Muti-Core Tinned Copper Flat Parallel Cable For Electronic Product

1. Tinned,annealed,stranded or solid copper conductor.

2. TPE insulation.

3. Rated temperature: 105°C.Rated voltage:600 volts.

4. Tinned or bare copper wire spiral or braid shield.

5. Passes UL VW-1&CUL FT1 vertical flame test.

Applications:

Internal wiring of electronic equipment and appliances.

UL Style& CUL Type Core Conductor Thickness Over Diameter Packing Conductor
Resistance at 20℃
AWG No/mm mm mm 1KFT/Coil Ω/KM
UL21498
CUL
(Stranded)		 2C 18 34/0.178 1.143 4.3*8.6 1KFT 23.20
16 26/0.25 1.143 4.6*9.2 1KFT 14.60
14 41/0.25 1.143 6.0*11.8 1KFT 14.60
12 65/0.25 1.143 7.4*14.00 1KFT 14.60
10 105/0.25 1.143 9.1*18.2 1KFT 14.60
UL21498
CUL
(Stranded)		 3C 18 34/0.178 1.143 4.4*10.7 1KFT 23.20
16 26/0.25 1.143 4.7*11.6 1KFT 14.60
14 41/0.25 1.143 6.0*14.5 1KFT 14.60
12 65/0.25 1.143 7.3*16.5 1KFT 14.60
10 105/0.25 1.143 9.1*18.8 1KFT 14.60
UL Style Type Cores Conductor Insulation
Thickness		 Nom.Dia Shield Coverage Jacket Thickness Overall
Diameter		 Conductor
Resistance at 20℃
AWG No/mm mm mm % mm mm Ω/KM
UL20968
CUL
(Stranded)		 2C 30 7/0.100 0.23 0.80 >=65 0.55 3.20 381.00
28 7/0.127 0.23 0.90 >=65 0.55 3.40 239.00
26 7/0.16 0.23 1.00 >=65 0.55 3.60 150.00
24 11/0.16 0.23 1.10 >=65 0.55 3.80 94.20
22 17/0.16 0.23 1.30 >=65 0.55 4.20 59.40
20 21/0.178 0.23 1.50 >=65 0.55 4.60 36.70
18 34/0.178 0.23 1.80 >=65 0.55 5.20 23.20
16 26/0.25 0.23 2.10 >=65 0.55 5.80 14.60
UL20968
CUL
(Stranded)		 3C 30 7/0.100 0.23 0.80 >=65 0.55 3.40 381.00
28 7/0.127 0.23 0.90 >=65 0.55 3.50 239.00
26 7/0.16 0.23 1.00 0.65 0.55 3.80 150.00
24 11/0.16 0.23 1.10 >=65 0.55 4.00 94.20
22 17/0.16 0.23 1.30 >=65 0.55 4.40 59.40
20 21/0.178 0.23 1.50 >=65 0.55 4.80 36.70
18 34/0.178 0.23 1.80 >=65 0.55 5.50 23.20
UL20968
CUL
(Stranded)		 4C 30 7/0.100 0.23 0.80 >=65 0.55 4.80 381.00
28 7/0.127 0.23 0.90 >=65 0.55 5.10 239.00
26 7/0.16 0.23 1.00 >=65 0.55 5.30 150.00
24 11/0.16 0.23 1.10 >=65 0.55 5.50 94.20
22 17/0.16 0.23 1.30 >=65 0.55 6.00 59.40
20 21/0.178 0.23 1.50 >=65 0.55 6.50 36.70
UL20968
CUL
(Stranded)		 5C 30 7/0.100 0.23 0.80 >=65 0.55 5.00 381.00
28 7/0.127 0.23 0.90 >=65 0.55 5.30 239.00
26 7/0.16 0.23 1.00 >=65 0.55 5.60 150.00
24 11/0.16 0.23 1.10 >=65 0.55 5.80 94.20
22 17/0.16 0.23 1.30 >=65 0.55 6.40 59.40
UL20968
CUL
(Stranded)		 6C 30 7/0.100 0.23 0.80 >=65 0.55 5.30 381.00
28 7/0.127 0.23 0.90 >=65 0.55 5.60 239.00
26 7/0.16 0.23 1.00 >=65 0.55 5.90 150.00
24 11/0.16 0.23 1.10 >=65 0.55 6.20 94.20
