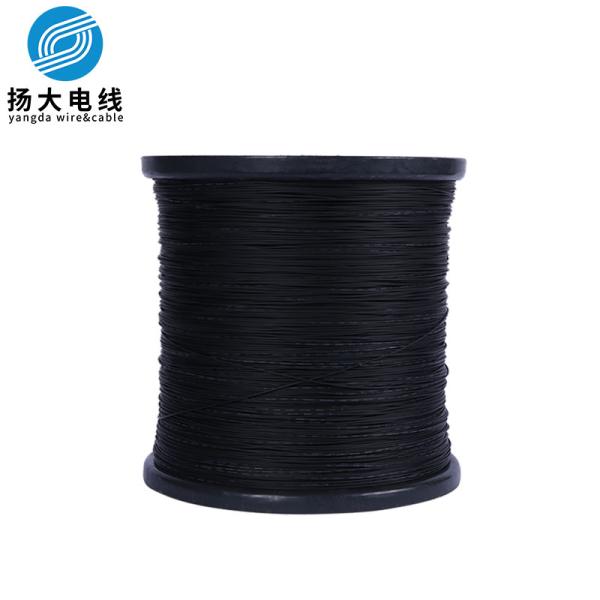

300V XLPE Wire Cable Low Smoke Zero Halogen For Household Appliance
300V XLPE Wire Cable Low Smoke Zero Halogen For Household Appliance
300V XLPE Wire Cable Low Smoke Zero Halogen For Household Appliance
300V XLPE Wire Cable Low Smoke Zero Halogen For Household Appliance
300V XLPE Wire Cable Low Smoke Zero Halogen For Household Appliance
300V XLPE Wire Cable Low Smoke Zero Halogen For Household Appliance
300V XLPE Wire Cable Low Smoke Zero Halogen For Household Appliance
300V XLPE Wire Cable Low Smoke Zero Halogen For Household Appliance
Specifications
Brand Name :
YANGDA
Model Number :
3386
Certification :
UL
Place of Origin :
CHINA
MOQ :
3050M
Price :
0.25USD PER METER
Payment Terms :
T/T
Supply Ability :
10000000 PER WEEK
Delivery Time :
10DAYS
Packaging Details :
CARTON
MATERIAL :
XLPE
SPECIFICATION :
32AWG-16AWG
STANDARD :
UL758
COLOR :
CUSTOMIZED
Description

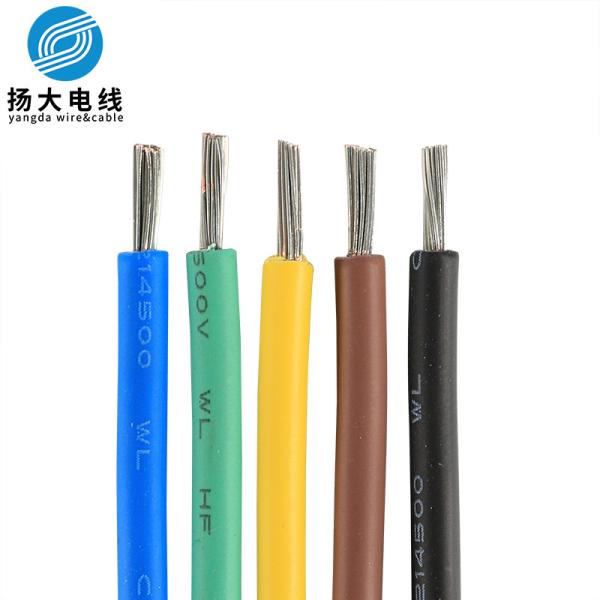

High Quality Ul3386 Low Smoke Zero Halogen Xlpe Insulated Tinned Copper Electronic Wire For Househole Appliance

Rated temperature:105ºC
Rated voltage:300V
According to:UL Subject758,UL1581,C22.2
Solid or stranded,tinned or bare copper conductor 40--10AWG
XLPE insulation
Passes UL VW-1&CSA FT1 vertical flame test
Uniform insulation thickness of wire to ensure easy stripping and cutting
For general purpose internal wiring of appliance

our wires and cables are made of 99.99% pure oxygen free copper and high quality PE which comply with the European Union RoHS environmental protection instruction.

SPECIFICATION: 18 AWG

REFERENCE STANDARD: UL758,UL1581

F LAME TEST: FT2 flame test

RATED TEMPERATURE: 150 Deg Centigrade

RATED VOLTAGE: 600v

CONDUCTOR: 16/0.254mm stranded bare copper

INSULATION THICKNESS: 0.76mm

PE OUTER DIAMETER:2.80 mm

MAX. CONDUCTOR RESISTANCE: 23.2 Ω/km

DIELECTRIC STRENGTH: 2000v

300V XLPE Wire Cable Low Smoke Zero Halogen For Household Appliance

CONDUCTOR INSULATION

MAX.COND.

RESISTANCE (Ω/km,20°C,DC)

DIELECTRIC

STRENGTH

(VAC,1min)
AWG

CONSTRUCTION

(No./mm)

DIA.

(mm)

THICKNESS

(mm)

O.D.

(mm)
30 7/0.10 0.30 0.76 1.90 381 2,000
28 7/0.127 0.38 0.76 2.00 239 2,000
26 7/0.16 0.48 0.76 2.10 150 2,000
24 11/0.16 0.61 0.76 2.20 94.2 2,000
22 17/0.16 0.76 0.76 2.35 59.4 2,000
20 26/0.16 0.94 0.76 2.55 36.7 2,000
18 41/0.16 1.18 0.76 2.80 23.2 2,000
16 26/0.254 1.50 0.76 3.15 14.6 2,000
14 41/0.254 1.88 0.76 3.55 8.96 2,000
12 65/0.254 2.36 0.76 4.05 5.64 2,000
10 105/0.254 3.10 0.76 4.90 3.546 2,000
8 168/0.254 4.25 0.76 6.60 2.23 2000
6 266/0.254 5.35 0.76 8.50 1.403 2000
4 420/0.254 6.70 1.15 9.80 0.882 2000
2 665/0.254 8.45 1.53 11.60 0.5548 2000
1 836/0.254 9.50 2.04 13.70 0.4398 2500
1/0 1045/0.254 10.60 2.04 14.80 0.3487 2500
2/0 1330/0.254 12.00 2.04 16.20 0.2766 2500
3/0 1330/0.254 13.45 2.04 17.60 0.2194 2500
4/0 2109/0.254 14.85 2.04 19.00 0.1722 2500

Name:UL3386 XLPE insulated hook up wire

Model:AWM 3385

Size:32~10AWG

Feature

Ratings Voltage:600V

Rated temperature: -60℃~+105℃

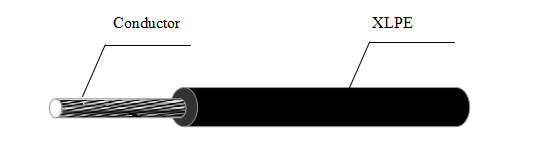

Structure

Conductor:Cooper,Tinned Copper

Insulation: Extruded XLPE

Standard:UL758,UL1581

300V XLPE Wire Cable Low Smoke Zero Halogen For Household Appliance

Size

AWG

Conductor

Construction

(No./mm)

Insulation

Thickness
(mm)

 Diameter
(mm)

Max. Conductor Resistance

(20℃) (Ω/km)
32 7/0.08 ≥0.76 1.8±0.2 590
30 7/0.10 1.9±0.2 381
28 1/0.32 2.0±0.2 239
26 7/0.16 2.1±0.2 150
24 11/0.16 2.3±0.2 94.2
22 17/0.16 2.4±0.2 59.4
20 26/0.16 2.6±0.2 37.4
18 16/0.254 2.8±0.2 23.5
16 26/0.254 3.1±0.2 14.6
14 41/0.254 3.5±0.2 8.96
12 65/0.254 4.0±0.2 5.64
10 105/0.254 5.1±0.2 3.54


300V XLPE Wire Cable Low Smoke Zero Halogen For Household Appliance
