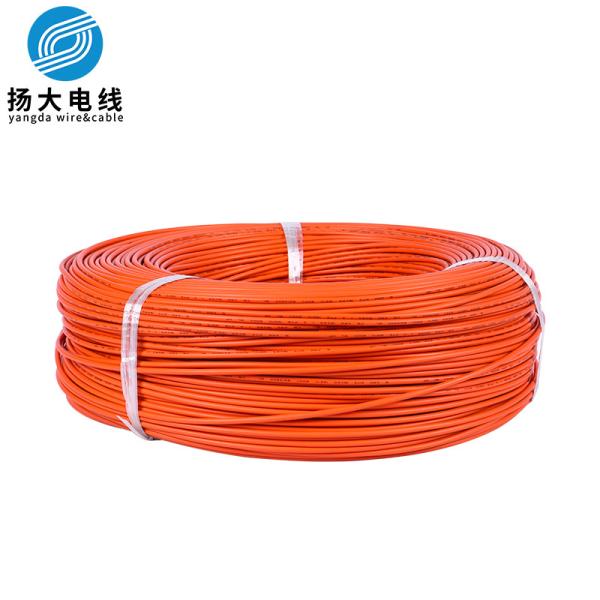

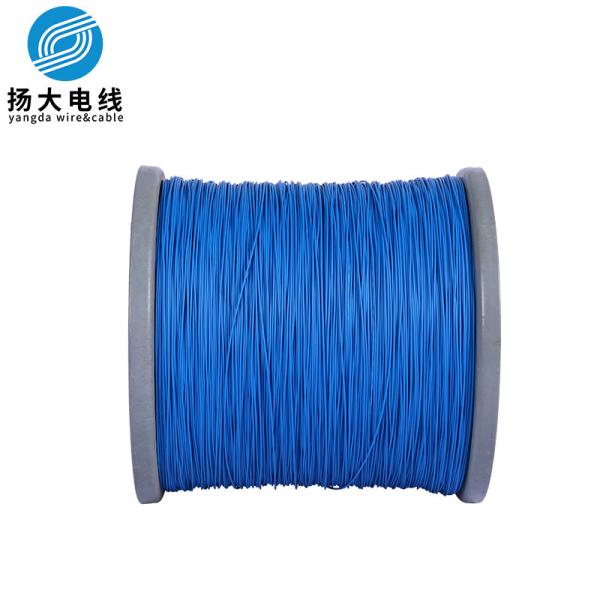

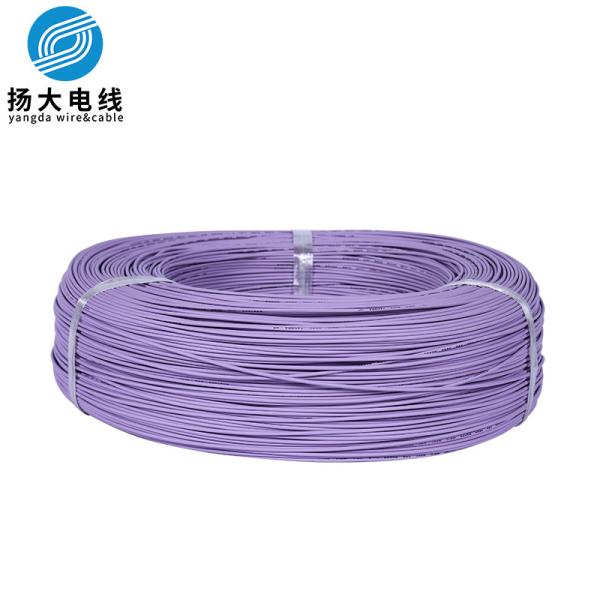

Ul3321 Xlpe Electrical Cable , Tinned Copper Wire Comply With ROHS Environmental Standard
Ul3321 Xlpe Electrical Cable , Tinned Copper Wire Comply With ROHS Environmental Standard
Ul3321 Xlpe Electrical Cable , Tinned Copper Wire Comply With ROHS Environmental Standard
Ul3321 Xlpe Electrical Cable , Tinned Copper Wire Comply With ROHS Environmental Standard
Ul3321 Xlpe Electrical Cable , Tinned Copper Wire Comply With ROHS Environmental Standard
Ul3321 Xlpe Electrical Cable , Tinned Copper Wire Comply With ROHS Environmental Standard
Ul3321 Xlpe Electrical Cable , Tinned Copper Wire Comply With ROHS Environmental Standard
Ul3321 Xlpe Electrical Cable , Tinned Copper Wire Comply With ROHS Environmental Standard
Specifications
Brand Name :
YANGDA
Model Number :
3321
Certification :
UL
Place of Origin :
CHINA
MOQ :
6100M
Price :
0.28USD PER METER
Payment Terms :
T/T
Supply Ability :
2000000M PER MONTH
Delivery Time :
7DAYS
Packaging Details :
CARTON
MATERIAL :
XLPE
COLOR :
MUTI
SPECIFICATION :
MUTI
VOLTAGE :
300V
Description

Heat Resistance Ul3321 Signal Core Xlpe Insulated Low Smoke And Halogen Free Tinned Copper Wire For Car Audio Power

Style 3321 Single conductor with extruded insulation

Rated temperature:150℃

Rated voltage:600V AC, 750V DC

Reference standard:UL758,UL1581,CAS C22.2 No.210.2

Conductor:soild or stranded ,tinned/bare copper, 30-6AWG.

Insulation: FR-XLPE,comply with ROHS environmental standard

Pass UL VW-1,CSA FT2 and JQA-F-Mark flame test

Uniform insulation thickness to ensure easy stripping and cutting

For electrical equipments internal wiring.

Product Parameters:

1.Rated temperature: 150°C
2.Rate value:600V
3.according to: UL758,UL1581
4.solid or stranded ,tinned or bare copper conductor 30AWG-2000KCMIL
5.XLPE insulation
6.passes UL VW-1 CSA FT1 Vertical flame test
7.use for Internal Wiring of Appliances

8.Environmental testing pass ROHS

  • Rated temperature: 150 degree centigrade
  • Rated voltage: 600V AC, 750V DC
  • Reference Standard: UL758, UL1581
  • Conductor: stranded copper conductor 40~4/0AWG
  • Insulation: FR-XLPE insulation, comply with ROHS environmental standard
  • Flame Retardant Test: UL Horizontal, FT2 flame Test
  • Uniform thickness to ensure stripping and cutting easily
  • For general purpose internal wiring of appliance

CONDUCTOR INSULATION

MAX.COND.

RESISTANCE(Ω/km,20°C,DC)

DIELECTRIC

STRENGTH

(VAC,1min)
AWG

CONSTRUCTION

(No./mm)

DIA.

(mm)

THICKNESS

(mm)

O.D.

(mm)
30 7/0.10 0.30 0.80 1.90 381 2,000
28

1/0.32

7/0.127

0.32

0.38

0.79

0.81

1.90

2.00

227

239

 2,000
26

1/0.404

7/0.16

0.40

0.48

0.80

0.81

2.00

2.10

143

150

 2,000
24

1/0.511

11/0.16

0.51

0.61

0.80

0.82

2.10

2.25

89.3

94.2

 2,000
22

1/0.643

17/0.16

0.64

0.76

0.80

0.82

2.25

2.40

56.4

59.4

 2,000
20

1/0.813

26/0.16

0.81

0.94

0.80

0.81

2.40

2.55

35.2

36.7

 2,000
18

1/1.024

16/0.254

41/0.16

1.02

1.17

1.18

0.82

0.82

0.81

2.65

2.80

2.80

22.2

23.2

23.2

 2,000
16

1/1.29

26/0.254

1.29

1.49

0.81

0.81

2.90

3.10

14.0

14.6

 2,000
14

1/1.60

41/0.254

1.60

1.88

0.80

0.81

3.20

3.50

8.78

8.96

 2,000
12 65/0.254 2.36 0.82 4.00 5.64 2,000
10 7/15/0.254 3.40 0.83 5.05 3.54 2,000

Ul3321 Xlpe Electrical Cable , Tinned Copper Wire Comply With ROHS Environmental Standard
