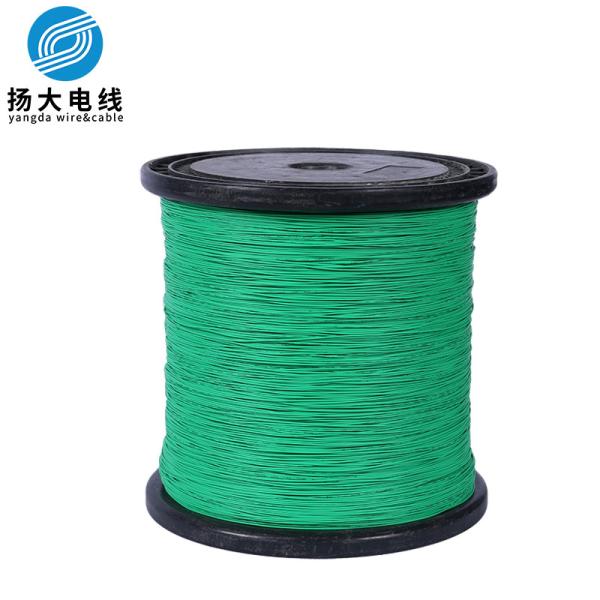

Heat Resistant Ul3266 XLPE Wire Cable For General Purchase Internal Wiring
Heat Resistant Ul3266 XLPE Wire Cable For General Purchase Internal Wiring
Heat Resistant Ul3266 XLPE Wire Cable For General Purchase Internal Wiring
Heat Resistant Ul3266 XLPE Wire Cable For General Purchase Internal Wiring
Heat Resistant Ul3266 XLPE Wire Cable For General Purchase Internal Wiring
Heat Resistant Ul3266 XLPE Wire Cable For General Purchase Internal Wiring
Heat Resistant Ul3266 XLPE Wire Cable For General Purchase Internal Wiring
Heat Resistant Ul3266 XLPE Wire Cable For General Purchase Internal Wiring
Specifications
Brand Name :
YANGDA
Model Number :
3266
Certification :
UL
Place of Origin :
CHINA
MOQ :
3050M
Price :
0.23USD PER METER
Payment Terms :
T/T
Supply Ability :
10000000 PER WEEK
Delivery Time :
10DAYS
Packaging Details :
CARTON
MATERIAL :
XLPE
SPECIFICATION :
32AWG-16AWG
STANDARD :
UL758
COLOR :
CUSTOMIZED
Description

Heat Resistant Ul3266 Low Smoke Zero Halogen Xlpe Insulated Tinned Copper Electronic Wire For Electric Machines

PRODUCT DESCRIPTION

1.Rated temperature: 125℃; Rated Voltage: 300V
2. Insulation: XLPE Insulation; Conductor: Tinned/ Bare copper 30~10 AWG
3. Standard:UL758, UL1581, CSA
4. Colors: Black, white, red, yellow, green, blue, yellow/green, special color can be customized.
5. Application: For general purchase internal wiring of appliances and electronic equipment lead wires of motors and lamps where exposed to temperatures not Exceeding 125℃.

Physical performance:
Excellent mechanical properties;
Excellent thermal stability;
Low temperature soft good performance;
Good flame retardancy;
High of resistance to chemicals;
Chemistry stability is good;

Electrical Properties:
Electrical insulation good;

Good the dielectric properties;

Processing properties:
Using the hot extrusion processing;
Can be twisted pair and multi-core;
According to UL standard design;

Environmental protection:
Low smoke, non-halogen;
ROHS/REACH compliant;

CABLE CONSTRUCTION

CONDUCTOR INSULATION

MAX.COND.

RESISTANCE(Ω/km,20°C,DC)

DIELECTRIC

STRENGTH

(VAC,1min)
AWG

CONSTRUCTION

(No./mm)

DIA.

(mm)

THICKNESS

(mm)

O.D.

(mm)
30

1/0.254

7/0.10

0.25

0.30

0.40

0.40

1.05

1.10

361

381

 2,000
28

1/0.32

7/0.127

7/0.127OS-1*

0.32

0.38

0.38

0.39

0.41

0.41

1.10

1.20

1.20

227

239

239

 2,000
26

1/0.404

7/0.16

7/0.16 OS-1*

0.40

0.48

0.48

0.43

0.41

0.41

1.25

1.30

1.30

143

150

150

 2,000
24

1/0.511

11/0.16

7/0.20OS-1*

0.51

0.61

0.60

0.42

0.40

0.40

1.35

1.40

1.40

89.3

94.2

94.2

 2,000
22

1/0.643

17/0.16

7/0.254 OS-1*

0.64

0.76

0.76

0.43

0.42

0.42

1.50

1.60

1.60

56.4

59.4

59.4

 2,000
20

1/0.813

26/0.16

7/0.32OS-1*

0.81

0.94

0.96

0.42

0.41

0.40

1.65

1.75

1.75

35.2

36.7

36.7

 2,000
18

1/1.024

16/0.254

41/0.16

7/0.404OS-1*

1.02

1.17

1.18

1.20

0.41

0.47

0.46

0.45

1.85

2.10

2.10

2.10

22.2

23.2

23.2

23.2

 2,000
16

1/1.29

26/0.254

1.29

1.49

0.46

0.46

2.20

2.40

14.0

14.6

2,000
