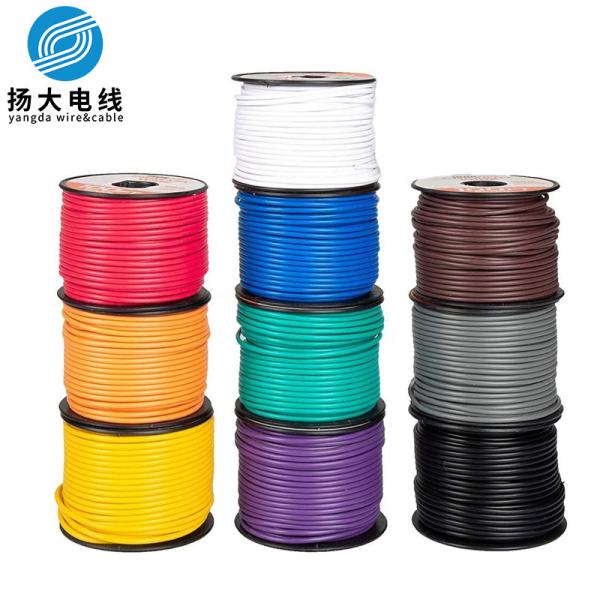

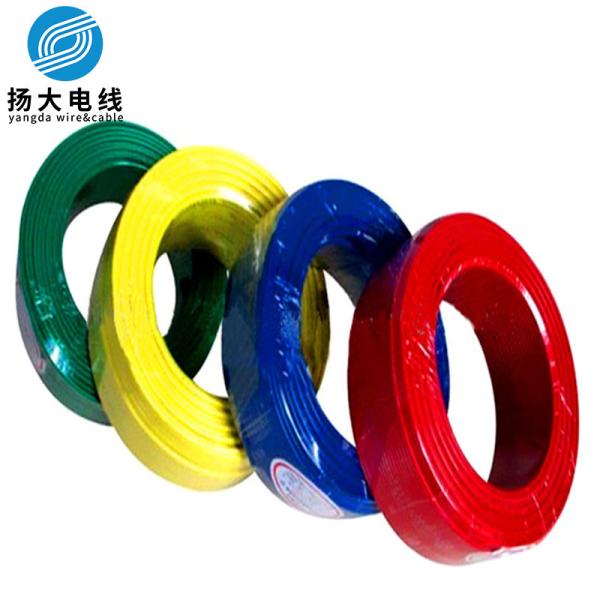

Pvc Electrical Wire Bare Copper Conductor Ul1007 22 Awg pvc Insulated reach standard hook-up Wire
Pvc Electrical Wire Bare Copper Conductor Ul1007 22 Awg pvc Insulated reach standard hook-up Wire
Pvc Electrical Wire Bare Copper Conductor Ul1007 22 Awg pvc Insulated reach standard hook-up Wire
Pvc Electrical Wire Bare Copper Conductor Ul1007 22 Awg pvc Insulated reach standard hook-up Wire
Pvc Electrical Wire Bare Copper Conductor Ul1007 22 Awg pvc Insulated reach standard hook-up Wire
Pvc Electrical Wire Bare Copper Conductor Ul1007 22 Awg pvc Insulated reach standard hook-up Wire
Specifications
Brand Name :
Yangda
Model Number :
UL1007
Certification :
ISO9001,UL
Place of Origin :
China
MOQ :
6100M
Price :
USD10~100/Roll
Payment Terms :
T/T
Supply Ability :
1000000m per Day
Delivery Time :
5-8 work days
Packaging Details :
Roll up cartons
Matial :
PVC
Color :
Multi
Specification :
30AWG-14AWG
Conductor type :
Stranded,Solid,flexible and solid,solid or stranded
Conductor material :
Copper,tinned or bare copper
Application :
Heating,Overhead,For indoor small electrical instruments,Housing project or Building,Underground
Type :
Insulated,low voltage
Insulation material :
PVC
Product name :
copper flexible insulated pvc cable wire electrical,electrical cable solid copper 7 core PVC wire with lowr price,UL1015 Hook-up wire cable,UL1185 1.5mm2
Conductor :
Tinned or Bare,stranded or solid copper,Copper Core
Rated voltage :
300/500V 450/750V
Voltage :
low medium voltage
Insulation :
PVC,PVC Insulation Cable
Rated temperature :
-20c~+105c
Standard :
IEC60227
Sheath :
PVC
Port :
Guangzhou
Usage :
Heating
Material :
copper
Description

Pvc Electrical Wire Bare Copper Conductor Ul1007 22 Awg Pvc Insulated Reach Standard Hook-Up Wire

Product Description

Rated temperature: 80 °C

Rated voltage: 300V

According to : UL758, UL1581, CSA C22.2

Solid or stranded, tinned or bare copper conductor 30-2 AWG

PVC insulation

Passes UL VW-1 & CSA FT1 Vertical flame test

Uniform insulation thickness of wire to ensure easy stripping and cutting

Environmental testing pass RoHS

Internal wiring of appliances or electronic equipment

- 8 AWG & larger - stranded bare copper or tinned copper
- 10 AWG - 16 AWG - stranded tinned copper
- 20 AWG - 24 AWG - stranded or solid tinned copper
- 18 AWG - solid bare, stranded tinned
- Other conductor types and strandings available by request

Insulation: - Color coded PVC, temperature range -40°C to 105°C

Applications: - Internal wiring of electrical and electronic equipment and appliances, internal wiring of panels and meters, point to point wiring

Additional Information: - All colors may be striped - Can be provided in twisted configurations - CT rating available for 1/0 and larger

Application

Internal wiring for electric or electronic equipment.
(Lead wire for primary circuits)

Item UL1007 Electronic Wire, Electrical Installation and Connection Wire
Conductor Material Copper
Insulation Material PVC
Color Red / Yellow / Blue / White / Black or Optional
Working Voltage 300V
Application Internal wires of electronic and electrical equipment
MOQ Capacity 100 meters
Certification CCC,ISO9001,CE,UL,ROHS
Payment T/T,L/C,D/A,Western Union

Cable Construction:

Conductor Insulation Max.Cond Resistance
(Ω/KM)		 Unit length
(M)(Ft)
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)
32 7/0.08 0.24 0.4 1.04 ≤542 610/1000
30 7/0.10 0.30 0.4 1.00 ≤347 610/1000
28 7/0.127 0.38 0.4 1.18 ≤218 610/1000
26 7/0.16 0.49 0.4 1.29 ≤138 610/1000
24 11/0.16 0.61 0.4 1.41 ≤85.9 610/1000
22 17/0.16 0.76 0.4 1.56 ≤54.3 610/1000
20 21/0.18 0.95 0.4 1.75 ≤33.9 610/1000
18 34/0.18 1.21 0.4 2.01 ≤21.4 610/1000
16 26/0.254 1.50 0.4 2.3 ≤13.5 305/1000

Pvc Electrical Wire Bare Copper Conductor Ul1007 22 Awg pvc Insulated reach standard hook-up Wire
