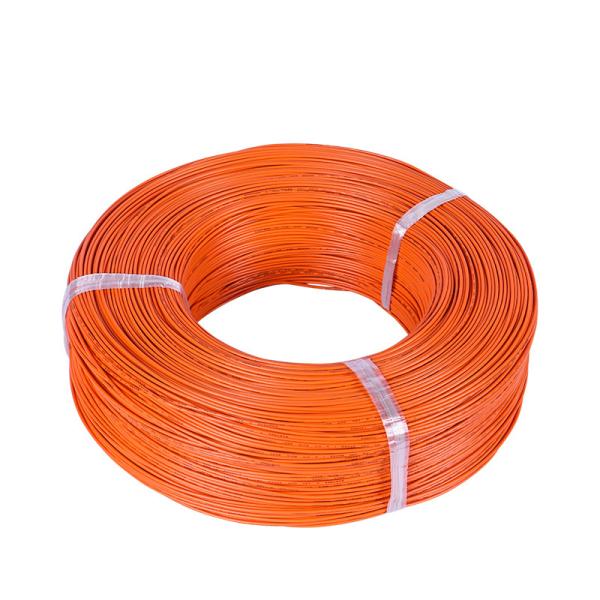

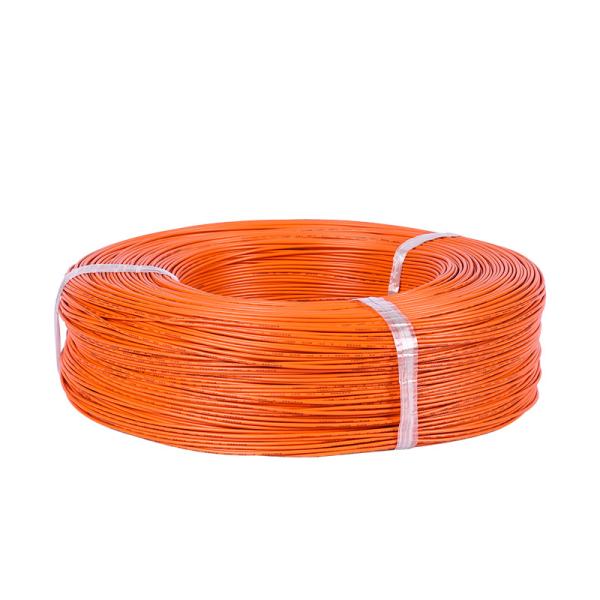

2.5mm PVC Insulated Copper Core BV Electric Wire Cable For Factory
2.5mm PVC Insulated Copper Core BV Electric Wire Cable For Factory
2.5mm PVC Insulated Copper Core BV Electric Wire Cable For Factory
2.5mm PVC Insulated Copper Core BV Electric Wire Cable For Factory
Specifications
Brand Name :
YANGDA
Model Number :
RVVP
Certification :
UL,CSA,VDE
Place of Origin :
CHINA
MOQ :
3050M
Price :
0.25 USD PER METER
Payment Terms :
T/T
Supply Ability :
1000000 PER WEEK
Delivery Time :
10DAYS
Packaging Details :
CARTON
Product name :
PVC Insulated Wire
Conductor material :
tinned or bare copper
Application :
Heating,Overhead,For indoor small electrical instruments,Housing project or Building
Color :
customized
Conductor :
Tinned or Bare,stranded or solid copper,copepr,Copper Core
Rated voltage :
600V,300/500V 450/750V
Voltage :
low medium voltage
Usage :
Heating
Description
2.5mm PVC Insulated Copper Core BV Electric Wire Cable For Home ／ Factory

Installation

Open air, in conduit, in cable trunking, in cable ducting. Thanks to the sliding properties of insulation, The wire is made to facilitate processing while pulling in.
Cross section [mm²]
Construction
[NO./mm]
Insulation
thickness
[mm]
Diameter
[mm]
Approx. weight [kg/km]
1X1.5
1/1.38
0.7
2.78
19.9
1X2.5
1/1.78
0.8
3.38
31.5
1X4
1/2.25
0.8
3.85
46.2
1X6
1/2.76
0.8
4.36
65.7
All drawings, designs, specifications, plans and particulars of weights, size and dimensions contained in the technical or commercial documentation is indicative only and shall
1 Applying Standard

GB/T5023.1~.7-2008 JB/T8734.1~.5-2016 equivalent to IEC60227
GB/T19666-2005 GB/T18380.12-2008
2 Product Application

2.1 The B series is used for fixed installation for power unit with AC rated voltage 450/750V and below, R series is copper core PVC insulation flexible power cable(wires) used for home appliances, small electric tool, instrument, power lighting. with AC rated voltage 300/500V and below.
2.2 Long-term working temperature
The long-term working temperature of cable conductor for model BV-90, RV-90, the Max temperature is 90ºC,for the rest model, the Max temperature is 70ºC.
2.3 Environmental temperature:
The lowest environment temperature is 0 ºC for cable & wires laying.
3 Model & execution standard
