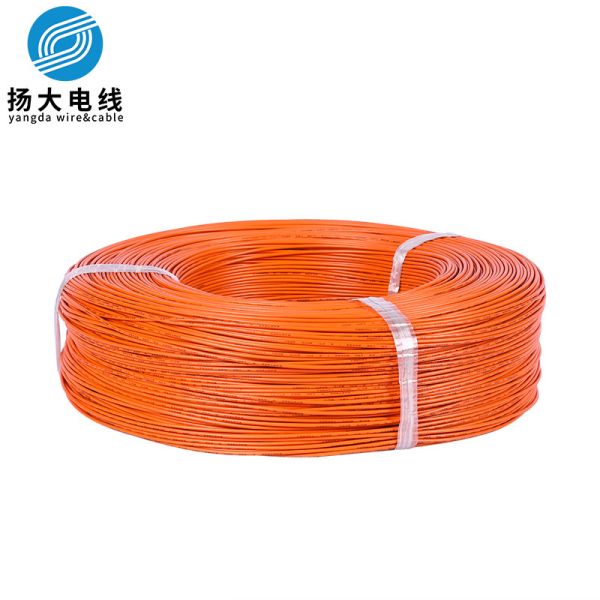

600V Low Smoke Copper Conductor PVC Insulated Wire
600V Low Smoke Copper Conductor PVC Insulated Wire
600V Low Smoke Copper Conductor PVC Insulated Wire
600V Low Smoke Copper Conductor PVC Insulated Wire
Specifications
Brand Name :
YANGDA
Model Number :
1617
Certification :
CCC,UL
Place of Origin :
CHINA
MOQ :
6100M
Price :
0.3USD PER METER
Payment Terms :
T/T
Supply Ability :
2000000M PER MONTH
Delivery Time :
7DAYS
Packaging Details :
CARTON
Product name :
UL1015 Hook-up wire cable
MATERIAL :
PVC
COLOR :
Red/Yellow/Blue/Green/Black
SPECIFICATION :
MUTI
VOLTAGE :
600V
Conductor type :
Stranded
Application :
For indoor small electrical instruments
Description

PVC Insulated Wire And Low Smoke Cable / Copper Conductor Wire

Description:

Polyvinyl chloride insulated cables of rated voltages up to and including 300/500 V——Flexible cables(cords)

Fixed laying power supply connection for Electrical equipment.

PVC Insulated Wire Conductor

PVC Insulated Cable
conductor are stranded, high conductivity plain annealed copper wires meeting the requirements of the class in BS 6360 and IEC 228 specifications for "Conductors in insulated cables with solid copper conductors are offered up to 2.5 Sq.mm.

PVC Insulated Wire Insulation

pvc insulated power cable The insulation of standard wiring cables is PVC grade Type T1 1 of Bs 7655 Formerly BS 6746) suitable for a maximum continous conductor operating temperature of 70C
Where specifically required, wiring cables can be offered with heat resistance PVC insulated grade. Type 5 (85 cType T1 3 (90 c). These cables are identified by the grade of PVC.

PVC Insulated Wire Core identification

Unless specially agreed otherwise, insullation colours are in accordance with BS 6004 specification as follows:
Single Core: Red, Black, Yellow, Blue, Green / Yellow
Two Core: Red and Black
Three Core: Red,Yellow and Blue
Four Core: Red, Yellow, Blue and Black
Five Core: Red, Yellow, Blue, Black and Green / Yellow

UL Style

&

CSA Type

Conductor

Number

Conductor

Diameter

Insulation

Thickness

Jacket

Thickness

Overall

Dimeter

Standard

Put-Up

 Conductor Resistance at 20℃
AWG mm mm mm mm Ft/Coil M/Coil Ω/KM

UL1617

(Stranded)

 28 7/0.127 0.76 0.40 2.70 2000 610 239.00
26 7/0.160 2.90 150.00
24 11/0.160 3.00 1000 305 94.20
22 17/0.160 3.20 59.40
20 21/0.178 3.40 36.70
18 34/0.178 3.60 23.20

UL1617

(Top-coated)

 24 7/0.200 2.90 2000 610 94.20
22 7/0.250 3.00 1000 305 59.40

UL1617

(Solid)

 24 1/0.511 2.90 2000 610 94.20
22 1/0.634 3.10 1000 305 59.40
20 1/0.813 3.25 36.70
18 1/1.024 3.50 23.20

Conductor Insulation Covering


MAX.COND.Resistance

(Ω/km,20 centigrade,DC)


Dielectric

strength

(VAC,1min)
AWG

Construction

(No./mm)

DIA

(MM)

 Insulation thickness

O.D.

(MM)

Jacket thickness

(mm)

O.D.

(MM)
28

1/0.32

7/0.127

0.32

0.38

0.79

0.81

1.9

2.00

0.40

0.40

2.7

2.80

227

239

 2000
26

1/0.404

7/0.16

0.40

0.48

0.80

0.81

2.00

2.10

0.40

0.40

2.80

2.90

143

150

 2000
24

1/0.511

11/0.16

0.51

0.61

0.80

0.80

2.10

2.20

0.40

0.40

2.90

3.00

89.3

94.2

 2000
22

1/0.643

17/0.16

0.64

0.74

0.80

0.77

2.25

2.30

0.43

0.40

3.10

3.20

56.4

59.4

 2000
20

1/0.813

26/0.16

0.81

0.94

0.80

0.81

2.40

2.55

0.40

0.43

3.20

3.40

35.2

36.7

 2000
18

1/1.024

16/0.254

41/0.16

1.02

1.17

1.18

0.82

0.82

0.81

2.65

2.80

2.80

0.43

0.40

0.40

3.50

3.60

3.60

22.2

23.2

23.2

 2000
16

1/1.29

26/0.254

1.29

1.49

0.81

0.81

2.90

3.10

0.40

0.40

3.70

3.90

14.0

14.60

 2000
14

1/1.60

41/0.254

1.60

1.88

0.80

0.81

3.20

3.50

0.40

0.40

4.00

4.30

8.78

8.96

 2000
