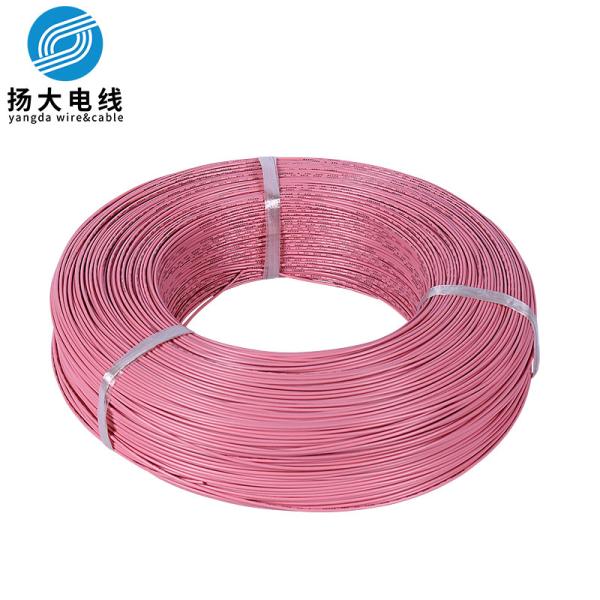

UL Style 1007 PVC Insulated Wire For Indoor Small Electrical Instruments
UL Style 1007 PVC Insulated Wire For Indoor Small Electrical Instruments
UL Style 1007 PVC Insulated Wire For Indoor Small Electrical Instruments
UL Style 1007 PVC Insulated Wire For Indoor Small Electrical Instruments
Specifications
Brand Name :
YANGDA
Model Number :
1430
Certification :
UL,CSA,VDE
Place of Origin :
CHINA
MOQ :
3050M
Price :
0.7 USD PER METER
Payment Terms :
T/T
Supply Ability :
1000000 PER WEEK
Delivery Time :
10DAYS
Packaging Details :
CARTON
Conductor material :
Copper,tinned or bare copper
Application :
Heating,Overhead
Type :
Insulated
Insulation material :
PVC
Color :
Various color available
Product name :
copper flexible insulated pvc cable wire electrical,electrical cable solid copper 7 core PVC wire with lowr price,UL1015 Hook-up wire cable,UL1185 1.5mm2
Conductor :
Tinned or Bare,stranded or solid copper,copepr,Copper Core
Rated voltage :
600V,300/500V 450/750V
Voltage :
low medium voltage
Insulation :
PVC,PVC Insulation Cable
Description

UL Style 1007 PVC Insulated Wire For Indoor Small Electrical Instruments

Main of cables features

1, Uo/U is 450/750V,300/500,
2, Long-term allowable temperature of the cable:The allowable temperature of 105 Cable should not exceed 105℃, the allowable
temperature of other models should not exceed 70℃.

Application

Applicable to the cables and wires of rated yolatage 450/750V and less than 450/750V AC for power
plant, householdelectrical applance,insurment and telecommunication equipment.

UL 1430 Description:

  • Conductor: Tinned Copper, Color-Coded
  • Insulation: Irradiated PVC, .016” Nominal Wall

UL 1430 Characteristics:

  • Temperature Range:
    MIL-W-16878/2 Type C: -55°C to +105°C
    UL/CSA: 105°C
  • Voltage Rating:
    MIL-W-16878/2 Type C: 1000 Volts
    UL/CSA: 300 Volts

UL 1430 Ratings:

  • UL 1430 (30 AWG - 16 AWG), FR-1, VW-1 300V 105°C
  • UL 1557 (16 AWG - 10 AWG), FR-1 300V 105°C
  • UL 3317 (14 AWG - 10 AWG), FR-1 300V 105°C
  • CSA Type REW, RR-64

PRODUCT DESCRIPTON

O Rated temperature: 105C

O Rated voltage: 600V

O Reference standard: UL Subject 758 UL 1581. 2556& CSA C22.2NO. 210

O Tinned or bare stranded or solid copper conductor.

O Colour-coded XLPVC insulation

O Uniform insulation thickness to ensure

O Easy stripping and cutting

O Passes UL VW-1&CSA FT1 vertical flame test

O Resistant to acids.oil alkali. noistureand fungus

APPLICATION

O Internal wiring of appliances

UL Style 1007 PVC Insulated Wire For Indoor Small Electrical Instruments

CONSTR

Rated temperature: 105 degree

Rated voltage: 300V

Reference Standard: UL758

Conductor: stranded bare copper

Insulation: XLPVC insulation, comply with ROHS environmental standard

Flame Retardant Test: UL Horizontal, FT1 flame Test

Uniform thickness to ensure stripping and cutting easily

Generally applied into the electrical equipment

UL style
Conductor
Insulation
Max.resistance of conductor at 20℃Ω/km
Package
AWG
Nom.Area
mm2
No/mm
Nom.Dia
mm
Nom.Thick
mm
Nom.Dia
mm
ft/coil
m/coil
UL1430
28
0.0804
7/0.127
0.38
0.40
1.18
237.25
2000
610
26
0.128
7/0.16
0.48
1.28
148.94
2000
610
24
0.205
11/0.16
0.61
1.41
93.25
2000
610
22
0.324
17/0.16
0.76
1.56
55.0
2000
610
20
0.519
21/0.18
0.95
1.75
34.6
2000
610
18
0.823
16/0.254
1.17
1.87
21.8
2000
610
16
1.31
26/0.254
1.50
2.30
13.7
1000
305

CABLE CONSTRUCTION:UL Style 1007 PVC Insulated Wire For Indoor Small Electrical Instruments

CONDUCTOR INSULATION

MAX.COND.

RESISTANCE(Ω/km,20°C,DC)

DIELECTRIC

STRENGTH

(VAC,1min)

AWG

CONSTRUCTION

(No./mm)

DIA.

(mm)

THICKNESS

(mm)

O.D.

(mm)
30

1/0.254

7/0.10

0.254

0.30

0.38

0.38

1.10

1.15

361

381

 2,000
28

1/0.32

7/0.127

0.32

0.38

0.38

0.38

1.15

1.20

227

239

 2,000
26

1/0.404

7/0.16

0.40

0.48

0.38

0.38

1.25

1.30

143

150

 2,000
24

1/0.511

11/0.16

0.51

0.61

0.38

0.38

1.35

1.45

89.3

94.2

 2,000
22

1/0.643

17/0.16

0.64

0.76

0.38

0.38

1.50

1.60

56.4

59.4

 2,000
20

1/0.813

26/0.16

0.81

0.94

0.38

0.38

1.65

1.80

35.2

36.7

 2,000
18

1/1.024

41/0.16

1.02

1.18

0.38

0.38

1.90

2.00

22.2

23.2

 2,000
16

1/1.29

26/0.254

1.29

1.49

0.38

0.38

2.15

2.40

14.0

14.6

 2,000

UL Style 1007 PVC Insulated Wire For Indoor Small Electrical Instruments

Packaging & Shipping:

1. Usually we ship your order by sea or by air.
2. We do our best to ship your order within 1 week after receiving your payment
3. We'll tell you the tracking number once your order has been sent.

4. We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
