250-300mm PVC Wall Panel Making Machine / PVC Ceiling making machine
250-300mm PVC Wall Panel Making Machine / PVC Ceiling making machine
250-300mm PVC Wall Panel Making Machine / PVC Ceiling making machine
250-300mm PVC Wall Panel Making Machine / PVC Ceiling making machine
250-300mm PVC Wall Panel Making Machine / PVC Ceiling making machine
250-300mm PVC Wall Panel Making Machine / PVC Ceiling making machine
250-300mm PVC Wall Panel Making Machine / PVC Ceiling making machine
250-300mm PVC Wall Panel Making Machine / PVC Ceiling making machine
250-300mm PVC Wall Panel Making Machine / PVC Ceiling making machine
250-300mm PVC Wall Panel Making Machine / PVC Ceiling making machine
250-300mm PVC Wall Panel Making Machine / PVC Ceiling making machine
250-300mm PVC Wall Panel Making Machine / PVC Ceiling making machine
Specifications
Place of Origin :
QINGDAO
Brand Name :
Sino-Holyson
Packaging Details :
Wooden Box or Standard Film Package
Supply Ability :
500 sets/year
Price :
$24500.00/sets >=1 sets
MOQ :
1set
Delivery Time :
30 works days
Payment Terms :
TT/LC
Model Number :
HSJZ-53/128
Condition :
New
Plastic Processed :
PVC resin
Application :
PVC wall panel, PVC Ceiling Panel
Screw Design :
Double-screw
Twin Screw Type :
Counter-rotating conical Twin-screw
Screw Material :
38CrMoALA
Screw diameter (mm) :
53/128
Screw L/D Ratio :
22:1
Screw Speed (rpm) :
39 rpm
Voltage :
380V, 3P, 50HZ
Dimension(L*W*H) :
22~25m * 2.5m * 2.5m
Power (kW) :
22
Weight :
5000KG
Warranty :
1 Year
Key Selling Points :
High Productivity
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing, Motor, Gear, Screw
Machinery Test Report :
Provided
After-sales Service Provided :
Engineers
Raw material :
PVC resin
Usage :
pvc wall panel extrusion
Processing Type :
Extruding Equipment
Description

HSJZ-53/128 PVC Wall Ceiling Panel Making Machine with Screw L/D Ratio 22 1

General Introduction:
HSJZ-53/128 PVC Wall Panel / Ceiling Panel Making Machine

This machine is mainly designed for manufacturing both PVC Wall/Ceiling Panels and PVC U/L Angle Lines, which mainly used in home decoration; By simply replacing the mould, the machine will be flexiblly used for Wall Panels and Angle Lines production. It greatly reduce the inverster investment and improve the workshop production efficiency.

250-300mm PVC Wall Panel Making Machine / PVC Ceiling making machine
250-300mm PVC Wall Panel Making Machine / PVC Ceiling making machine
Extruder
250-300mm PVC Wall Panel Making Machine / PVC Ceiling making machine
Mould(Width:300mm)
250-300mm PVC Wall Panel Making Machine / PVC Ceiling making machine
Vacuum Cooling Platform
250-300mm PVC Wall Panel Making Machine / PVC Ceiling making machine
Double Caterpillar Traction Machine
250-300mm PVC Wall Panel Making Machine / PVC Ceiling making machine
Inline Film Laminating Machine
250-300mm PVC Wall Panel Making Machine / PVC Ceiling making machine
Panel Stacker
Detail Images

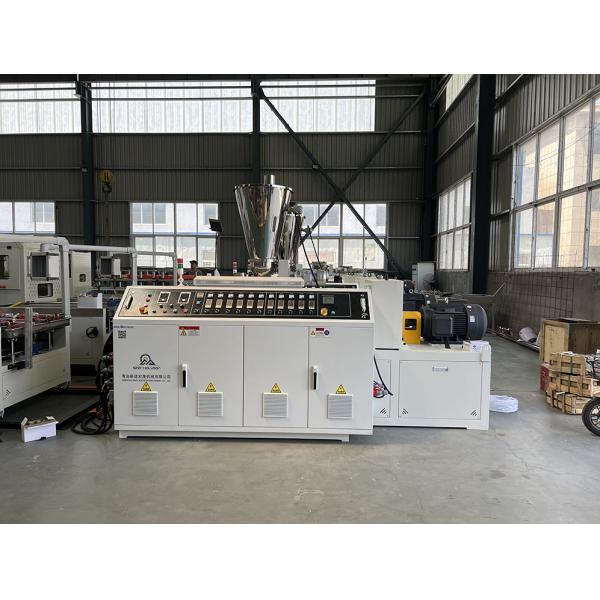

** HSJZ-53/128 Conical Twin Screw Extruder

HSJZ-53/128 Conical Twin Screw Extruder here is mainly used for PVC wall panel, PVC ceiling panel extrusion. This Extruder is designed specially for processing Higher Percent Calcium Mixed PVC Material, to manufacture PVC Wall/Ceiling Panels. The Extruder installs with 22kw driving motor, which will produce 700-1000sqm panels.

Our SCREW & BARREL Sets is specially designed for 200-260% Calcium mixed. It has the advantages of high tenacity, high impact, good bending performance, high temperature resistance, etc. The extruder extrusion output can reach 80-150kg/hr.

250-300mm PVC Wall Panel Making Machine / PVC Ceiling making machine

250-300mm PVC Wall Panel Making Machine / PVC Ceiling making machine
250-300mm PVC Wall Panel Making Machine / PVC Ceiling making machine
** Vacuum Cooling Platform
This unit is mainly for cooling and shaping the panels after the extrusion mould. It is installed with 4kw vacuum pump and 3kw water pump, for reliable production.
250-300mm PVC Wall Panel Making Machine / PVC Ceiling making machine
** Double Caterpillar Traction/Haul-off Machine
This unit is mainly for cooling and shaping the panels after the extrusion mould. It is installed with 4kw vacuum pump and 3kw water pump, for reliable production.
250-300mm PVC Wall Panel Making Machine / PVC Ceiling making machine
** Pneumatic Cutting Machine
This unit is mainly for cooling and shaping the panels after the extrusion mould. It is installed with 4kw vacuum pump and 3kw water pump, for reliable production.
250-300mm PVC Wall Panel Making Machine / PVC Ceiling making machine
** Panel Stacker unit
This unit is mainly for cooling and shaping the panels after the extrusion mould. It is installed with 4kw vacuum pump and 3kw water pump, for reliable production.
250-300mm PVC Wall Panel Making Machine / PVC Ceiling making machine
Packing & Deliver
