SRL-Z 300/600 High Speed PVC Mixer(300-400kg/hr)
SRL-Z 300/600 High Speed PVC Mixer(300-400kg/hr)
SRL-Z 300/600 High Speed PVC Mixer(300-400kg/hr)
SRL-Z 300/600 High Speed PVC Mixer(300-400kg/hr)
Specifications
Place of Origin :
Qingdao, China
Brand Name :
SINO-HOLYSON
Certification :
CE/ISO9001
Packaging Details :
Full Container Loading 20GP
Price :
8000$/sets
Model Number :
SRL-Z 300/600
MOQ :
1 set
Payment Terms :
T/T, L/C
Supply Ability :
100 sets/year
Delivery Time :
25 working days
Condition :
New
Material :
Aluminum Alloy
Output (kg/h) :
400 - 600 kg/h
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing
Application :
Mixing
Automatic Grade :
Automatic
Voltage :
380V/50Hz/3Phase
Dimension(L*W*H) :
2500*2100*3800 Mm
Warranty :
12 Months
Weight (KG) :
2000 KG
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
After-sales Service Provided :
Engineers available to service machinery overseas
Color :
customized
Production Capacity :
500-5000kg/h
Power :
5.5-110kw
Weight :
1500-8000kg
Description

SRL-Z 300/600 High Speed PVC Mixer(300-400kg/hr)

Product Description

SINO-HOLYOSN 300/600 HIGH SPEED PVC MIXER Machine

General Introduction:

300/600 PVC High Speed Mixer is widely used in mixing, drying, and coloring for all kinds of resin, such as PVC, PP, and PE.

They can also be applied in dryness of ABS, polycarbonates and mixing hydroxyl benzene, Alde Hyde resin.

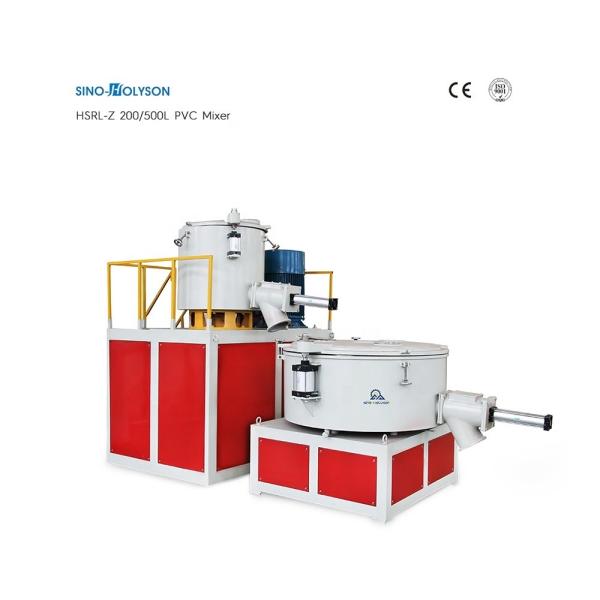

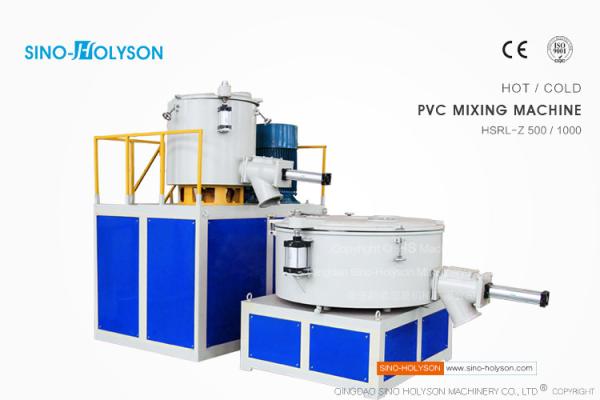

  • This unit is composed of one hot pot and one cooling pot, the materials from hot mixer will be filled into the cooling mixer automatically, during this process it can eliminate humidity, and protect from agglomeration.
  • The pot lid adopts two layers of sealing.
  • Pot lid of cooling mixer adopts arch lid, uneasy to be out of shape.
  • Blades have been passed the test of the dynamic and static and static balance testing.

Device Advantages:

  • It is the most ideal equipment for producing shaped plastic material and plastic pipes.
  • It has two function of electric and steam heating.
  • The opening of the heating mixed cover adopts the air-opening device and the opening of the cooling mixed cover adopted hydraulic pressure control system.
  • The electric control section with the programmable logic control adopts well-known imported meters and control components.
  • Long service life, easy to operate.
  • Simple installation and maintenance.
  • Environmental protection, CE/ISO 9001 CERTIFICATION.
  • High yield, high quality, high efficiency, low energy consumption.
  • Convenient to dismantling and cleaning, and be fast, easy and safe to repair all the parts. Compact and reasonable design, convenient operation, simple maintenance.
Detailed Images

SRL-Z 300/600 High Speed PVC Mixer(300-400kg/hr)SRL-Z 300/600 High Speed PVC Mixer(300-400kg/hr)

SRL-Z 300/600 High Speed PVC Mixer(300-400kg/hr)

SRL-Z 300/600 High Speed PVC Mixer(300-400kg/hr)

SRL-Z 300/600 High Speed PVC Mixer(300-400kg/hr)

Certifications

SINO-HOLYSON, a professional plastic extruder manufacturer, delivers "MADE-TO-ORDER" service.

Send your sample pictures by mail. Our PROPOSALS will be feedback soon by engineer team.

WE TRUST WITH CE & ISO9001 CERTIFICATION, OUR QUALITY MACHINE WILL SATISFY YOU VERY MUCH.

SRL-Z 300/600 High Speed PVC Mixer(300-400kg/hr)

Our Services

Pre-Sales Service

After-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

--- OEM & ODM Service Available ---

SRL-Z 300/600 High Speed PVC Mixer(300-400kg/hr)

Packaging & Shipping

Before delivery, our working staff will carefully pack the whole set machine to make sure the products arriving to customer's workshop safely.

  • LCL (Less than Container Load) > WOOD CASE Packing + Cline Film Wrapped + Steel Tube Tray Fixed + Oil Against Rust Process
  • FCL (Full Container Load) > Steel Tube and Wire Fixed + Cling Film Wrapped + Oil Against Rust Process

SRL-Z 300/600 High Speed PVC Mixer(300-400kg/hr)

Contact Us

SRL-Z 300/600 High Speed PVC Mixer(300-400kg/hr)SRL-Z 300/600 High Speed PVC Mixer(300-400kg/hr)SRL-Z 300/600 High Speed PVC Mixer(300-400kg/hr)
