75 Rpm Screw Speed HDPE PP PVC Electrical Conduit Pipe Making Machine 22kw
75 Rpm Screw Speed HDPE PP PVC Electrical Conduit Pipe Making Machine 22kw
75 Rpm Screw Speed HDPE PP PVC Electrical Conduit Pipe Making Machine 22kw
75 Rpm Screw Speed HDPE PP PVC Electrical Conduit Pipe Making Machine 22kw
75 Rpm Screw Speed HDPE PP PVC Electrical Conduit Pipe Making Machine 22kw
75 Rpm Screw Speed HDPE PP PVC Electrical Conduit Pipe Making Machine 22kw
75 Rpm Screw Speed HDPE PP PVC Electrical Conduit Pipe Making Machine 22kw
75 Rpm Screw Speed HDPE PP PVC Electrical Conduit Pipe Making Machine 22kw
75 Rpm Screw Speed HDPE PP PVC Electrical Conduit Pipe Making Machine 22kw
75 Rpm Screw Speed HDPE PP PVC Electrical Conduit Pipe Making Machine 22kw
75 Rpm Screw Speed HDPE PP PVC Electrical Conduit Pipe Making Machine 22kw
75 Rpm Screw Speed HDPE PP PVC Electrical Conduit Pipe Making Machine 22kw
Specifications
Place of Origin :
Shandong, China
Brand Name :
Sino-Holyson
Packaging Details :
FCL- Full Container Loading
Supply Ability :
10 Set/Sets per Month
Price :
$26,500.00/sets >=1 sets
Condition :
New
Plastic Processed :
PE, PP, PVC, PA, EVA
Application :
Corrugated Pipe
Screw Design :
Single Screw
Screw Material :
38CrMoAL
Screw diameter (mm) :
65mm
Screw L/D Ratio :
28:1
Screw Speed (rpm) :
75 rpm
Showroom Location :
None
Voltage :
380V 50HZ 3Phase(Customized)
Dimension(L*W*H) :
12 * 2 *2.5m
Power (kW) :
22
Weight :
3000 KG
Warranty :
12 Month, 12 months
Key Selling Points :
High-accuracy
Applicable Industries :
Manufacturing Plant
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing
Machinery Test Report :
Provided
Automatic Grade :
Automatic
After-sales Service Provided :
Engineers available to service machinery overseas
Power :
22kw
After Warranty Service :
Video technical support
Marketing Type :
New Product 2023
Port :
Qingdao Port
Description
75 rpm Screw Speed Corrugated Pipe Making Machine for Electrical Conduit HDPE/PP PVC
75 Rpm Screw Speed HDPE PP PVC Electrical Conduit Pipe Making Machine 22kw
Product Description

Flexible Corrugated Pipe Making Machine
Electric Conduit Pipe, Electric Sheath Pipe
Production Speed: 20-30m/min
HSJ-65 "HIGHER SPEED" Plastic Corrugated Pipe Machine This machine is widely used as ElECTRIC WIRE CONDUIT PIPE production, Shisha Hookah Hose production, Flexible Sink Corrugated Pipe production, and Washing Machine Corrugated Pipe production. The whole line consists of a HSJ-65mm Single Screw Extruder(18.5kw/22kw driving motor), Mould and die head, Forming Machine(with flexible corrugators), Auto-Tension Controller, and a Two-Station Pipe Colier.
Main Machine List:

> HSJ-65mm Single Screw Extruder(Higher Efficiency Design)
> Extrusion Mould + Die Head
> Higher Speed Forming Machine(72 Pairs Corrugators)
> Tension Controller Unit
> Two Station Pipe Coiler
75 Rpm Screw Speed HDPE PP PVC Electrical Conduit Pipe Making Machine 22kw
Item Model
Design
Corrugated Pair Size
Driving Speed
Output
HSJ-65/30
Twin Cavity, 60 Pairs
L35/56.55/56
11-20m/min
35-50kg/h
HSJ-65/30
Twin Cavity, 72 Pairs
L35/56.55/56
15-30m/min
35-50kg/h
Details Images

HSJ-65(45) Single Screw Extruder
Backed by a team of highly skilled professionals we are pioneers in the corrugated pipe machine manufacturing, who also export and supply of super-fine plastic corrugated pipe machines domestic and abroad.Our machine is known for it strength and reliability.With lower temperature plasticizing design ensures stable and perfect extrusion.
HSJ-65/30 Single Screw Extruder, is installed with 22kw driving motor, its output can reach to max. 70kg/h. which is mainly used to process PP, PE, PVC,ABS,PA, etc. Our SCREW is specially designed according to Chemical Characteristic of the granules used for making corrugated pipe. This Extruder Plasticizing performance is super excellent, by a accurately control temperature system, <0.1℃. While a better controlled polymers will gives high glossy, shining, friction resisting corrugates wall surface.
75 Rpm Screw Speed HDPE PP PVC Electrical Conduit Pipe Making Machine 22kw
75 Rpm Screw Speed HDPE PP PVC Electrical Conduit Pipe Making Machine 22kw
75 Rpm Screw Speed HDPE PP PVC Electrical Conduit Pipe Making Machine 22kw
75 Rpm Screw Speed HDPE PP PVC Electrical Conduit Pipe Making Machine 22kw
75 Rpm Screw Speed HDPE PP PVC Electrical Conduit Pipe Making Machine 22kw

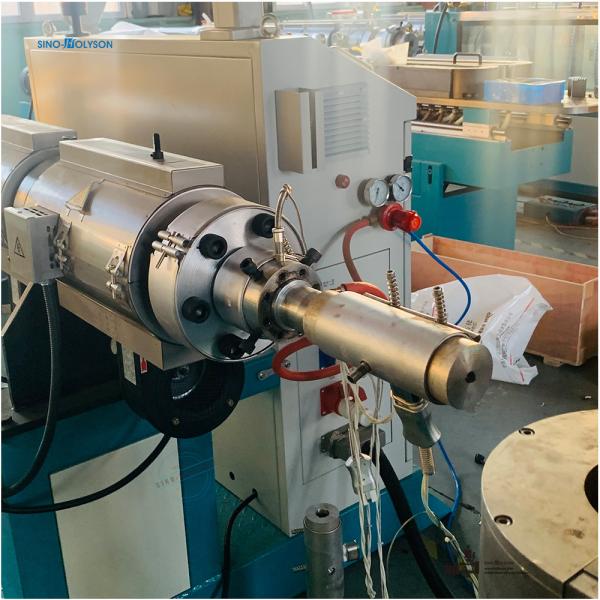

Extrusion Die Head and Mould
The mould adopts inner spiral channel structure design, it is mounted on the extruder flange directly. It's optimized structure guaranteed the extrusion flow stable, uniform pressure controlling. Inside the mould, also designed with air channel for the pipe blowing. The whole production line has the advantages of fast and stable speed, easy to operate.
Basic Information:
Size: 16-50mm
Material: Mould Steel P20(3Cr2Mo)
Hardness: 330-370HB(30-36HRC)
Executive Standard: AISI-p20 GS-2311 ASSAB-618
Heating Zones: 2 Zones,
By Electric Heating Method
75 Rpm Screw Speed HDPE PP PVC Electrical Conduit Pipe Making Machine 22kw
75 Rpm Screw Speed HDPE PP PVC Electrical Conduit Pipe Making Machine 22kw
75 Rpm Screw Speed HDPE PP PVC Electrical Conduit Pipe Making Machine 22kw

"HIGH SPEED"
Corrugated Pipe Forming Machine
"Higher Speed" · It means a machine with more production capacity than a standard machine. Installing with a "Pushing Designed" corrugated forming machine, and excellent accurately control, this will makes will perfect corrugated pipe.
The Corrugated Forming Machine adopts gear transmission controlling, the pipes will be cooled down by chilled water, and strong blowers, which production speed can be up to 20-30m/min, and the pipe with characteristics of one-step forming, uniform shape of the ripples, consistent joint, smooth inside and outside pipe wall.
75 Rpm Screw Speed HDPE PP PVC Electrical Conduit Pipe Making Machine 22kw
We have two choices for this corrugated forming machine, you can choose load 60 pairs, 72 pairs corrugated former mould into it, usually the most commonly popular choice is φ16+32/20+25mm into two cavity, φ40/50mm into single cavity.
75 Rpm Screw Speed HDPE PP PVC Electrical Conduit Pipe Making Machine 22kw

Electrical Controlling Corrugator Replacement

1. Adopting the new partition type vacuum adsorption sizing technology, makes the outer wall of pipe smooth, beautiful. Not only improve the production efficiency, but also the level of products.

2. Corrugated Pipe Forming Machine, with stepless speed regulating motor, is easy to learn and understand, high speed, material-saving, and the pipe forming rate is high.

Two Station
Pipe Coiler Machine
The Two Station Pipe Winder, by using torque motor, promises stable tension controlled. The opening and closing of the winding plate are automatically controlled. The winder is equipped with two sets of alternating winding to ensure the continuity of production.
Automatic Pipe Coiler This machine max. coiling speed can reach to 30m/min, adopts torque driving motor, cooperated with guiding system. Whole machine controlling system is Smart PLC control, the cutter will be mounted on the coiler unit.
75 Rpm Screw Speed HDPE PP PVC Electrical Conduit Pipe Making Machine 22kw
Recommend Products

HSJ-65 Nylon Corrugated Pipe Making Machine
The following given machine is -- Plastic PA6(66) Nylon Corrugated Pipe Making Machine, which extruder model HSJ-65mm, installed with 22kw driving motor, mainly for pipe size 40/50mm corrugated pipes production.
75 Rpm Screw Speed HDPE PP PVC Electrical Conduit Pipe Making Machine 22kw

HSJ-65/30 PP/PE Flexible Corrugated Pipe Making Machine
General Introduction:

HSJ-45/30, 65/30 PE/PP Corrugated Pipe Making Machine is mainly for PE/PP corrugated pipe manufacturing continuously. The PE/PP corrugated pipe has the advantages of high temperature resistance, corrosion resistance, wear resistance, high strength, good flexibility, etc.

Main Machine List:
1. HSJ Series Single Screw Extruder(PP/HDPE | PVC)
2. Extrusion Mould + Die Head
3. Corrugated Forming Machine
4. Double Position Winder(With tension controller)
Production Speed: 10-15m/min
75 Rpm Screw Speed HDPE PP PVC Electrical Conduit Pipe Making Machine 22kw
Certifications
SINO-HOLYSON, a professional plastic extruder manufacturer, delivers "MADE-TO-ORDER" service.
Send your sample pictures by mail. Our PROPOSALS will be feedback soon by engineer team.

WE TRUST WITH CE & ISO9001 CERTIFICATION, OUR QUALITY MACHINE WILL SATISFY YOU VERY MUCH.
75 Rpm Screw Speed HDPE PP PVC Electrical Conduit Pipe Making Machine 22kw
FAQ
1. Manufacture Workshop!
Our Company is a manufacturing workshop, with decades of experience. All the machine will be manufactured from our own workshop, with qualified QC worker check, to guarantee the quality.

2. Delivery Time
Usually it takes 25-35 days to manufacture the machine, and testing work takes like 7 days. All the machines will be tested well, and send working video for customer check.

3. Payment Terms
You can pay to either our official company account, or you can pay online by Alibaba Trade Assurance account. Usually TT -40% advance payment to start the order, and 70% TT done before the shipping.
75 Rpm Screw Speed HDPE PP PVC Electrical Conduit Pipe Making Machine 22kw
Packing & Delivery
Before delivery, our workers will carefully pack the whole set machine to make sure safely arriving to customer's workshop.

* FCL (Full Container Load) > Steel Tube and Wire Fixed + Cling Film Wrapped + Oil Against Rust Process

* LCL (Less than Container Load) > WOOD CASE Packing + Cline Film Wrapped + Steel Tube Tray Fixed + Oil Against Rust Process
75 Rpm Screw Speed HDPE PP PVC Electrical Conduit Pipe Making Machine 22kw
75 Rpm Screw Speed HDPE PP PVC Electrical Conduit Pipe Making Machine 22kw
