SINO-HOLYSON HSJ-75 20-110mm HDPE Drip Irrigation Pipe Making Machine Single-screw Design
SINO-HOLYSON HSJ-75 20-110mm HDPE Drip Irrigation Pipe Making Machine Single-screw Design
SINO-HOLYSON HSJ-75 20-110mm HDPE Drip Irrigation Pipe Making Machine Single-screw Design
SINO-HOLYSON HSJ-75 20-110mm HDPE Drip Irrigation Pipe Making Machine Single-screw Design
Specifications
Condition :
New
Plastic Processed :
PVC PP PA HDPE
Application :
PIPE, Flexible Tube
Screw Design :
Single-screw
Screw Material :
38CrMoALA
Screw diameter (mm) :
75
Screw L/D Ratio :
28:1
Screw Speed (rpm) :
75 rpm
Showroom Location :
None
Place of Origin :
Shandong, China
Brand Name :
SINO-HOLYSON
Voltage :
380V 50HZ 3Phase(Customized)
Dimension(L*W*H) :
20mx2.5mx2.2m
Weight :
2000 KG
Warranty :
1 year, 12 months
Key Selling Points :
Automatic
Applicable Industries :
Manufacturing Plant, Corrugated Pipe Machine
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing
Machinery Test Report :
Provided
Color :
Customized
Automatic Grade :
Automatic
Power :
18.5kw
After-sales Service Provided :
Online support
Certification :
CE ISO9001
Marketing Type :
New Product 2022
Packaging Details :
FCL (Full Container Load) 20GP
Price :
$60,000.00/sets
Description
SINO-HOLYSON HSJ-75 20-110mm HDPE Drip Irrigation Pipe Making Machine Single-screw Design
Product Description

HSJ-75 PLASTIC HDPE PIPE MAKING MACHINE


Higher Speed Design, 20-110mm


General Introduction:


This HDPE Pipe Making Machine is mainly for Irrigation HDPE Rigid Pipes, for agriculture irrigation. The whole production line consists of 75/33 Higher Efficiency single screw extruder, size 20-110mm, the pipes will be coiled into rolls, for long distance irrigation.


OUTPUT OF THIS MACHINE: 200-400KG/H Ability

SINO-HOLYSON HSJ-75 20-110mm HDPE Drip Irrigation Pipe Making Machine Single-screw Design
Item
SJ-65 Extrusion Line
SJ-75 Extrusion Line
Extruder
SJ-65 Single Screw Extruder
SJ-75 Single Screw Extruder
Pipe Diameter
20-63mm
20-110mm
Production Speed
8-15m/min
20-30m/min


HSJ-75/33 Single Screw Extruder


This 75mm Single Screw Extruder, which installed with 45kw, 55kw driving motor, is specially designed for HDPE Irrigation pipe production, its output ability can reach to 150-250kg/h. The production speed of size 20mm is 20-30m/min.

MAIN COMPONENTS LIST:
Screw & Barrel: 38CrMoAl, LD:33/1, Special Gradual Design
Visionary Feeding Hopper - detect the material feeding
Hopper Drier - Keep the raw material dry before production
Clean Operation Panel - Multi-Direction Adjustment


SINO-HOLYSON HSJ-75 20-110mm HDPE Drip Irrigation Pipe Making Machine Single-screw Design


2/3-Layers Co-Extrusion Cases


A: HSJ-75mm Single Screw Extruder

B: HSJ-45mm Single Screw Extruder


(Two Extruder co-extrusion cases for size 20-110mm, it could be 3 Layers ABA Structure, and 2-Layer AB Structure pipes.

SINO-HOLYSON HSJ-75 20-110mm HDPE Drip Irrigation Pipe Making Machine Single-screw Design
SINO-HOLYSON HSJ-75 20-110mm HDPE Drip Irrigation Pipe Making Machine Single-screw Design



HDPE PIPE MOULD


Size: 20-110mm




HDPE Irrigation Pipes


φ16-63mm Coiled pipe into rolls
SINO-HOLYSON HSJ-75 20-110mm HDPE Drip Irrigation Pipe Making Machine Single-screw Design

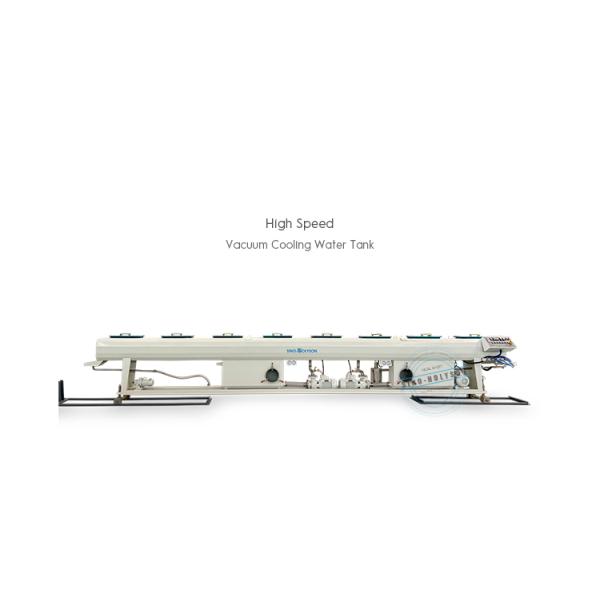

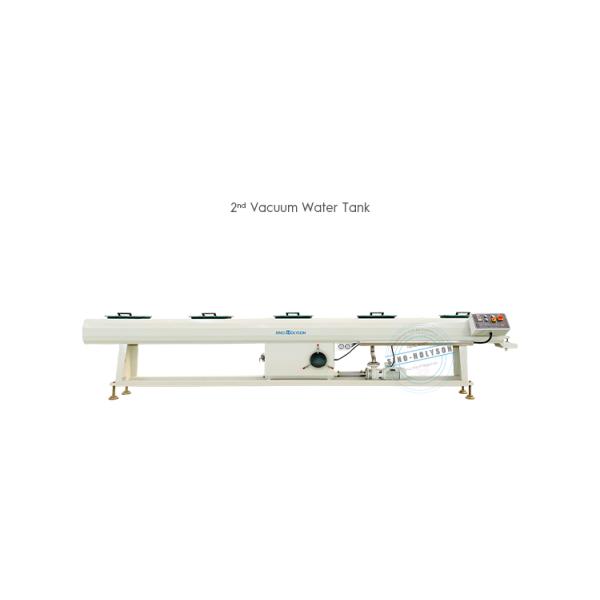

Powerful Cooling System


There are totally 2 sets vacuum cooling water tank in this machine, and with 12m bathing tank for improving the cooling effect.


A: Chain Design Corrugated Pipe Forming Machine(42-108 Pairs for choice)

B: Pushing Design Corrugated Pipe Forming Machine(Standard 60/72 Pairs choice)





PVC Corrugated Pipe Machine

SINO-HOLYSON HSJ-75 20-110mm HDPE Drip Irrigation Pipe Making Machine Single-screw Design
SINO-HOLYSON HSJ-75 20-110mm HDPE Drip Irrigation Pipe Making Machine Single-screw Design
SINO-HOLYSON HSJ-75 20-110mm HDPE Drip Irrigation Pipe Making Machine Single-screw Design

2-Position Pipe Coiler


The Coiler Machine is mainly for pipe size 20-63mm winding.




SINO-HOLYSON HSJ-75 20-110mm HDPE Drip Irrigation Pipe Making Machine Single-screw Design
Related Products
SINO-HOLYSON HSJ-75 20-110mm HDPE Drip Irrigation Pipe Making Machine Single-screw Design

Corrugated Pipe Compressing Machine

98.5% Response Rate

SINO-HOLYSON HSJ-75 20-110mm HDPE Drip Irrigation Pipe Making Machine Single-screw Design

Double Work Position Pipe Winding Machine

93.8% Response Rate

SINO-HOLYSON HSJ-75 20-110mm HDPE Drip Irrigation Pipe Making Machine Single-screw Design

Ink Jet Printing Machine (PIpe Used)

96.3% Response Rate

Certifications
SINO-HOLYSON HSJ-75 20-110mm HDPE Drip Irrigation Pipe Making Machine Single-screw Design
SINO-HOLYSON HSJ-75 20-110mm HDPE Drip Irrigation Pipe Making Machine Single-screw Design
SINO-HOLYSON HSJ-75 20-110mm HDPE Drip Irrigation Pipe Making Machine Single-screw Design
Our Service
SINO-HOLYSON HSJ-75 20-110mm HDPE Drip Irrigation Pipe Making Machine Single-screw Design

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

SINO-HOLYSON HSJ-75 20-110mm HDPE Drip Irrigation Pipe Making Machine Single-screw Design

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
SINO-HOLYSON HSJ-75 20-110mm HDPE Drip Irrigation Pipe Making Machine Single-screw Design
Packaging
Film Packing
Standard package is soft film and protected with thick sponge.


All machine will be fasten with steel wire to ensure the safety during that long sea transportation.

Plywood case packing is also can be provided as per customer requirements.




Woodcase Packing
SINO-HOLYSON HSJ-75 20-110mm HDPE Drip Irrigation Pipe Making Machine Single-screw Design
