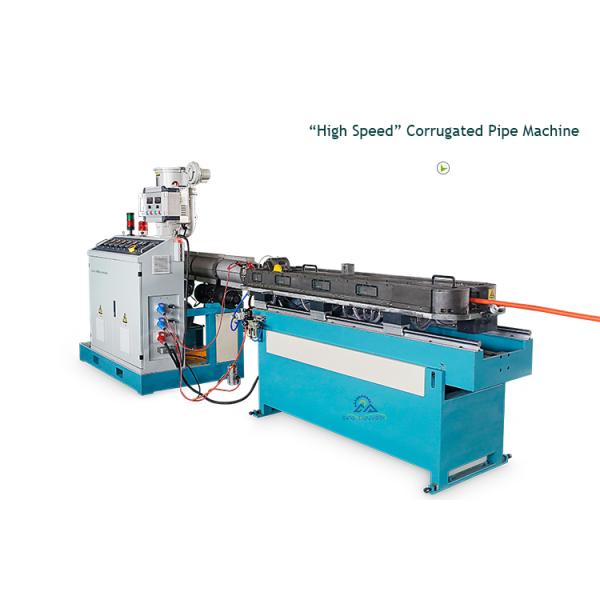

This HSJ-45/55 Plastic Corrugated Pipe Machine This machine is mainly designed for Shisha Hookah hose, Air Conditioner Hose manufacture, the most commonly used material is PP/HDPE granules. The corrugated former machine is loaded with a well structured corrugated mould pairs, its running is reliable and smooth. Its speed can reach to 15m/min+.

(Please note: If your material is different as we mentioned, please contact us, because different raw material should use different Extruder Design, please refer to us, by which material used during production.)

Main Components List:

1. HSJ-45mm Single Screw Extruder

2. Mould & Die Head

3. Corrugated Forming Machine

4. Belt Traction Machine

5. Cutting Machine Composite

HSJ-45/55mm Single Screw Extruder This Extruder is designed specially for producing single wall corrugated pipe, which installed with 11kw, 15kw driving motor, according to the different pipe size, or thickness. Our SCREW is specially designed according to Chemical Characteristic of the granules used for making corrugated pipe. It has the advantages of high tenacity, high impact, good bending performance, high temperature resistance, etc.

MAIN COMPONENTS LIST:
1. Screw & Barrel: 38CrMoAl, LD:30/1, Special Gradual Design

Visionary Feeding Hopper - detect the material feeding
Hopper Drier - Keep the raw material dry before production
Clean Operation Panel - Multi-Direction Adjustment

Chain Design Corrugated Pipe Forming Machine installed with 50-60 pairs of forming mould, the material of the mould is 40Cr, which is very high strong. The forming machine size will based on the final hose length accordingly.

This Traction and Cutting Machine is specially for Shisha Hookah Hose use. Traction machine is designed into two stations, first station is for haul off the pipe at a uniform speed, and feed hose to the cutters. A hydraulic cutter controlled by PLC system will automatically cut the hose at set length. And the second station haul off machine is pull the hose out.

TWO STATION PIPE COILER MACHINE This is mainly used for coil the corrugated pipes into rolls, like 50m/roll, 100m/roll. Usually the coiled corrugated pipes are used as electrical conduits, which mainly functions as the protection the cable wires. If add this coiler, you can also extend your business into this area.

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
