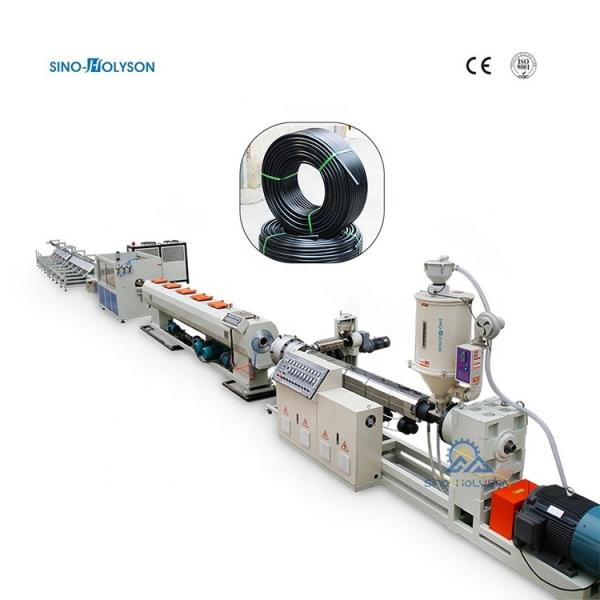

This HSJ-45 Plastic Electric Pipe Machine is mainly for Orange Electric Conduit Pipe Production, usually the pipe size 11mm, 13mm, 16mm, 21mm, 25mm max. And finally the conduits will be coiled into rolls.(Please note: Different raw material should use different Extruder Design, please refer to us, by which material used during production.)

Main Components List:

1. HSJ-45mm Single Screw Extruder

(Included Hopper Drier, and 300G Vacuum Loader)

2. Mould & Die Head

3. Vacuum Cooling Water Tank

4. Spraying Cooling Water Tank

5. Auto-Traction Machine

6. Cutting Machine

7. Two Position Pipe Coiler

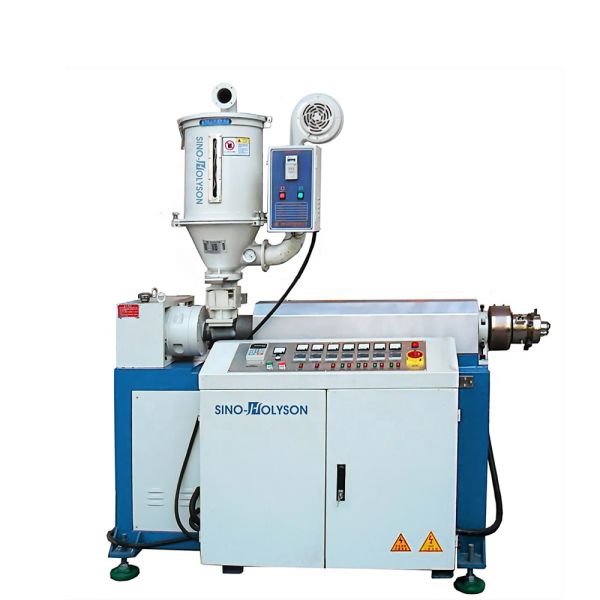

This 45mm Single Screw Extruder is designed specially for producing single wall corrugated pipe, which installed with 11kw, 15kw driving motor, according to the different pipe size, or thickness. Its well arranged operation panel and temperature control system, makes the extruder not only LOOKS, but also WORKS excellent.


MAIN COMPONENTS LIST:
Screw & Barrel: 38CrMoAl, LD:30/1, Special Gradual Design
Visionary Feeding Hopper - detect the material feeding
Hopper Drier - Keep the raw material dry before production
Clean Operation Panel - Multi-Direction Adjustment

φ9-32mm HDPE Pipe Mould Material is high quality mould steel.

Size will cover 9mm, 11mm, 13mm, 16mm, 20mm, 25mm, 32mm, with full sets nozzles, mandrels, and sizers.

Double Claw Pipe Haul-Off, Traction Machine, installed with 2 pieces of driving motor separately, which can control the speed separately. This traction machine is reliable specially for the PE orange electric conduit pipe

Automatic Cutting Machine is a non-dust cutting machine, which cut by hard metal blade, it will guarantee the pipe neat and clean cut section.

Plastic Corrugated Electric Conduit Pipe Making Machine

This machine is mainly for electric conduit pipe, in flexible corrugated design. The machine can be used for processing HDPE/PP, PVC, PA6(+66), EVA Materail, as per application situation.

(Differences refer to the detail pictures, and please contact us and let's explain to you.)
