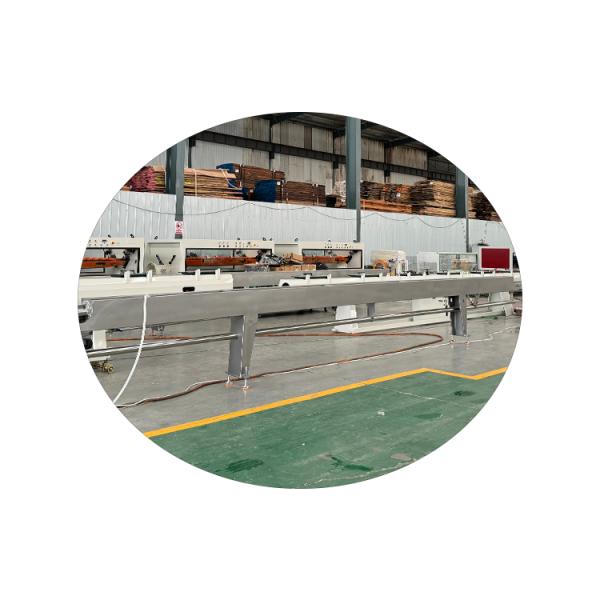

Sino-holyson HSE-60/38 20-110mm HDPE Pipe Production Line Machine / HDPE Plastic Pipe Extrusion Machine For Water Supply
Sino-holyson HSE-60/38 20-110mm HDPE Pipe Production Line Machine / HDPE Plastic Pipe Extrusion Machine For Water Supply
Sino-holyson HSE-60/38 20-110mm HDPE Pipe Production Line Machine / HDPE Plastic Pipe Extrusion Machine For Water Supply
Sino-holyson HSE-60/38 20-110mm HDPE Pipe Production Line Machine / HDPE Plastic Pipe Extrusion Machine For Water Supply
Sino-holyson HSE-60/38 20-110mm HDPE Pipe Production Line Machine / HDPE Plastic Pipe Extrusion Machine For Water Supply
Sino-holyson HSE-60/38 20-110mm HDPE Pipe Production Line Machine / HDPE Plastic Pipe Extrusion Machine For Water Supply
Specifications
Brand Name :
SINO-HOLYSON
Model Number :
HSE-60/38
Place of Origin :
QINGDAO
MOQ :
1set
Price :
$ 65000/set
Payment Terms :
L/C, T/T
Supply Ability :
500sets/year
Delivery Time :
50 work days
Packaging Details :
plastic base packaging
Capacity :
150-200KG/H
Inverter :
Schneider Frequency Controller
Automatic Grade :
Full-automatic
Voltage :
220V/380V/440V
Extruder Model :
HSE-60/38(55kw)
Heating Method :
Electric heating
Extruder Type :
Single Screw Extruder
Application :
Water supply, gas distribution, drainage, etc.
Pipe Diameter Range :
20-1600mm
Condition :
New
Description

HSE-60/38 HDPE Pipe Extruder Machine

Diameter:20-110mm

General Introduction:

This machine is mainly designed for manufacturing HDPE/PP Pipes, which mainly used in irrigation, water supply area. The extruder can process PP/HDPE granules(Both virgin and Recycled, even with chalk-filled composite).

The mounted mould on this line is 20-110mm, full set of mould will include every detailed sized mandrel and sizing sleeve. The whole production line mechanical designing max. 150-200kg/h.

Sino-holyson HSE-60/38 20-110mm HDPE Pipe Production Line Machine / HDPE Plastic Pipe Extrusion Machine For Water Supply

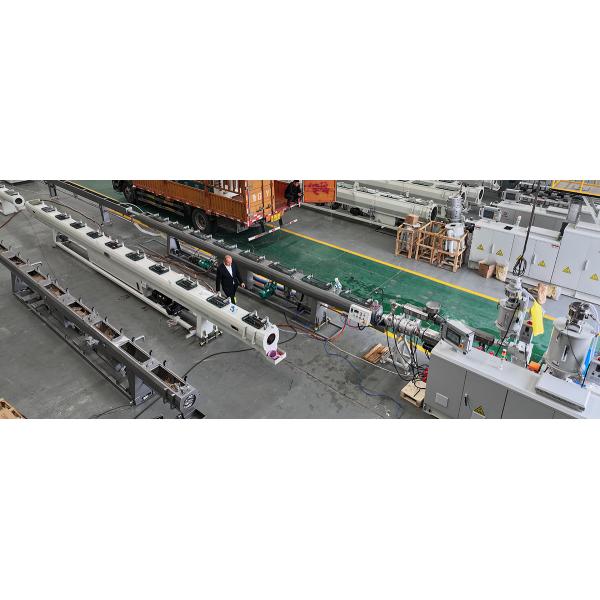

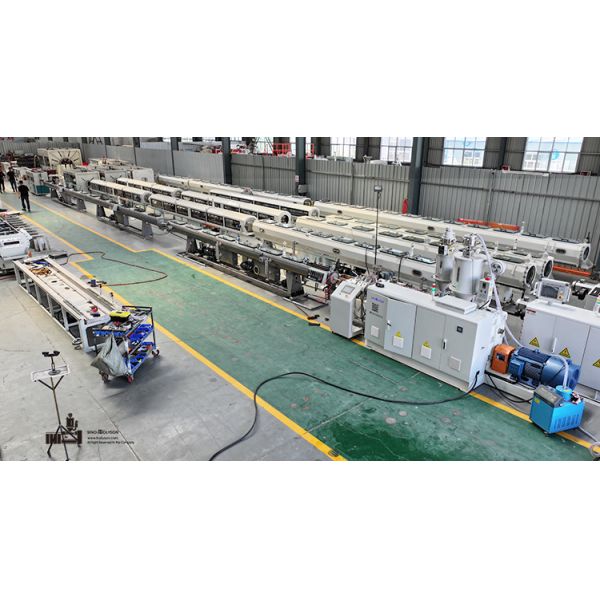

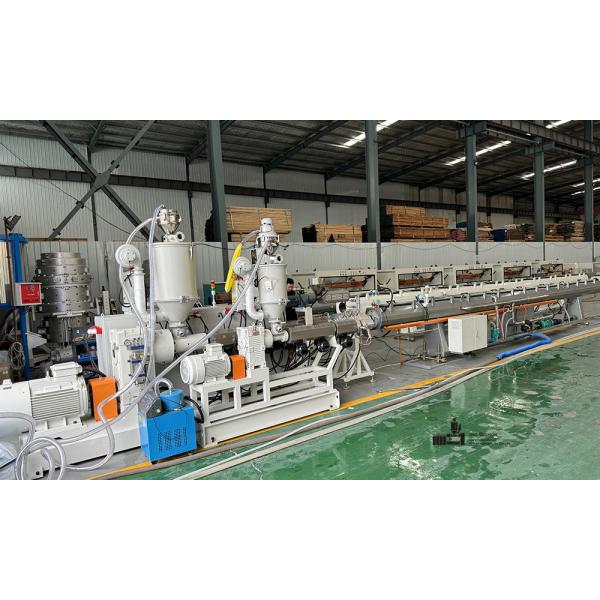

Main Components of a full plant

The following machine units composed one production line. Only Joecky Extruders are at your optional choice.

Model
HSE-60/38 HDPE Pipe Extrusion Machine
Quantity
1.
HSE-60/38 Single Screw Extruder
1 Set
2.
Pipe Mould + Die Head (φ20-110 mm)
1 Set
3.
Vacuum Sizing Cooling Water Tank
1 Set
4.
Electric Control System(PLC Smart Panel Optional)
1 Set
5.
Spraying Cooling Water Tank
2 Sets
6.
Double Claw Traction Machine
1 Set
7.
Non-dust Cutting Machine
1 Set
8.
Pipe Stacker
1 Set
9.
HSL-30w Fiber Laser Printer (Optional)
1 Set

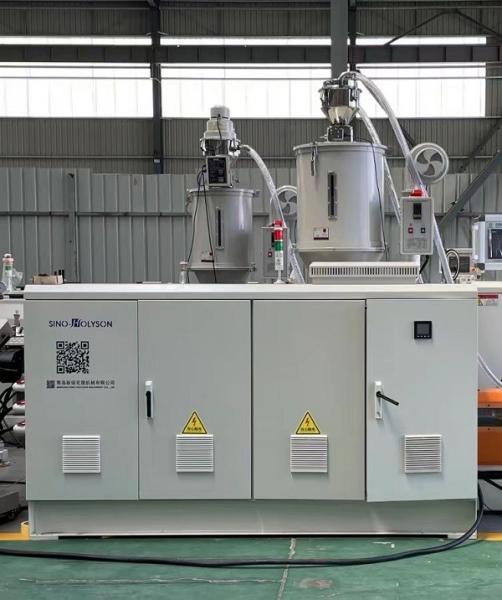

HSE-60/38 Single Screw Extruder

This is a Higher Efficiency designed extruder, which screw model is 60/38, installed with 55kw driving motor, for processing PP/HDPE granules specially.higher efficiency distribution, the extruder output can reach upto150-200kg/hr.

Sino-holyson HSE-60/38 20-110mm HDPE Pipe Production Line Machine / HDPE Plastic Pipe Extrusion Machine For Water Supply

Fiber Laser Printer

Fiber laser printers are primarily used for industrial applications that require high-precision printing on metal and other hard surfaces. They are commonly used for marking, engraving, and etching metal parts, tools, and equipment.

Sino-holyson HSE-60/38 20-110mm HDPE Pipe Production Line Machine / HDPE Plastic Pipe Extrusion Machine For Water Supply

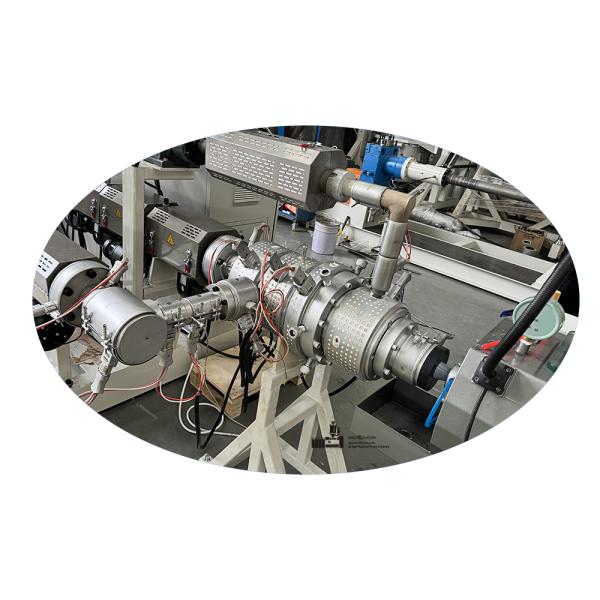

Extrusion Die Head

Mould adopts alloy structural steel, which can greatly improve the strength of the parts. Under high temperature and high load,the mould still has good dimensional stability, ensure the service life of mould and pipe quality.

Sino-holyson HSE-60/38 20-110mm HDPE Pipe Production Line Machine / HDPE Plastic Pipe Extrusion Machine For Water Supply

Vacuum Sizing Cooling Water Tank

Vacuum Sizing Cooling Water Tank main role is to set the pipe diameter, shape, cooling and guaranteed the roundness of the pipes, installed with water channel system and a bypass loop access road. It also has an automatic monitoring system on water level and water temperature.

Sino-holyson HSE-60/38 20-110mm HDPE Pipe Production Line Machine / HDPE Plastic Pipe Extrusion Machine For Water Supply

Bathing Water Cooling Tank

The Spraying Cooling Water Tank will improve the cooling effect greatly, and improve the production speed accordingly. By another side, it especially guarantees the straightness of the PE,PPR pipes.

Sino-holyson HSE-60/38 20-110mm HDPE Pipe Production Line Machine / HDPE Plastic Pipe Extrusion Machine For Water Supply

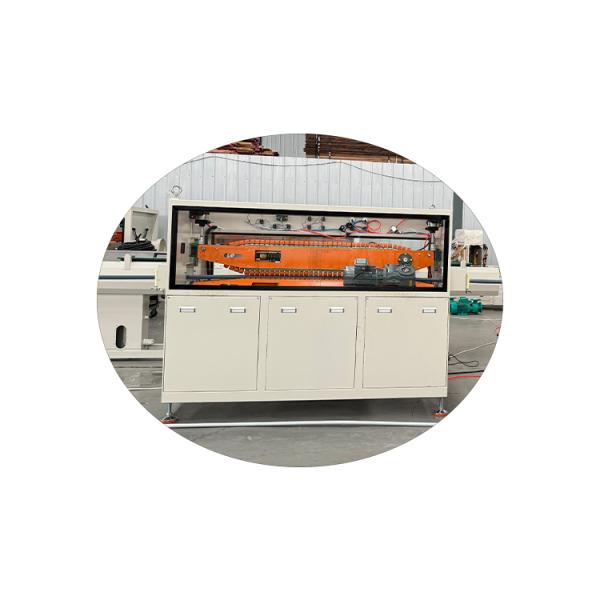

Double Claw Traction Machine

Also called by Two-Caterpillars Traction/ Haul off machine, with each crawler driven by frequency motor, can automatically change its working speed synchronous with the whole production line speed.

Sino-holyson HSE-60/38 20-110mm HDPE Pipe Production Line Machine / HDPE Plastic Pipe Extrusion Machine For Water Supply

Pipe Stacker

Pipe stacking refers to the practice of temporarily storing lengths of pipe, such as those used in construction, oil and gas operations, or other industrial applications, by stacking them vertically.

Sino-holyson HSE-60/38 20-110mm HDPE Pipe Production Line Machine / HDPE Plastic Pipe Extrusion Machine For Water Supply
