Sino Holyson HSJ-65/28 16-50mm PVC Clear Water Hose Making Machine
Sino Holyson HSJ-65/28 16-50mm PVC Clear Water Hose Making Machine
Sino Holyson HSJ-65/28 16-50mm PVC Clear Water Hose Making Machine
Sino Holyson HSJ-65/28 16-50mm PVC Clear Water Hose Making Machine
Sino Holyson HSJ-65/28 16-50mm PVC Clear Water Hose Making Machine
Sino Holyson HSJ-65/28 16-50mm PVC Clear Water Hose Making Machine
Specifications
Brand Name :
SINO-HOLYSON
Model Number :
HSJ-65/28
Place of Origin :
QINGDAO
MOQ :
1set
Price :
$ 20000/set
Payment Terms :
L/C, T/T
Supply Ability :
500sets/year
Delivery Time :
30 work days
Packaging Details :
Wooden boxes and plastic base packaging
Automatic Grade :
Automatic
Extruder :
65 Single Screw Extruder
Screw Design :
Single-Screw
Capacity :
45-65kg/h
Plastic Processed :
PVC Granules
Marketing Type :
New Product 2024
Key Selling Points :
High-accuracy
Core Components :
PLC, Gearbox
Port :
Qingdao Port
Voltage :
380V
Description

HSJ-65/28 PVC Braided Hose Making Machine

Diameter:16-50mm

General Introduction:

HSJ-65/28 PVC Braided Garden Hose Making Machine

This machine is used to produce Fiber Reinforced PVC Braided Hose/ PVC Garden Pipe. It has three layers, the inner and the outer layer is plastic PVC material and the middle layer is fiber strengthened net. It has good mechanical property and chemical property, which suits for the transportation of high pressure and corrosive air, and water liquid. It is comprehensively used in machinery, colliery, petrol, chemistry, agriculture irrigation, garden water hose,construction,civil products (solar water heater, gas pitcher).

This production line can produce clear PVC hose, PVC braided hose, color PVC fiber knitted hose, garden water hose and PVC non-knitted hose. This production line is composed with Single screw extruders(2 sets), cooling calibration tank(2 sets), haul-off machine(2 sets), Fiber Braiding machine(1 set), heat oven(1 set), hose coiler(1 set), mould and so on. The machine set adopts most advanced
international technology and technique, which ensuring a stable and reliable production.

MOLD Design: Diameter:φ16-50mm, customized according to the Sample

Sino Holyson HSJ-65/28 16-50mm PVC Clear Water Hose Making Machine

TWO DIFFERENT MODELS

There are totally two different models for your choice based on diameter.

Please match your sample size, choose a right model machine

Model HSJ-55/30 HSJ-65/30
Driving Power (KW) 11kw *2 15kw *2
Output (kg/hr) 35-80kg/hr 60-120kg/hr
Diameter (mm) 6-25mm 16-50mm

Product Paramenters:

Main Components of a full plant

The following machine units composed one production line.

Only Joecky Extruders are at your optional choice.

Model HSJ-65/28 PVC Braided Hose Making Machine Quantity
1. HSJ-65/28 Single Screw Extruder 1 Set
2. Extrusion Mould(φ16-50mm) 1 Set
3. 1st Quenching Cooling Water Tank 1 Set
4. 2nd Traction(Haul-off) Machine 1 Set
5. Fiber/Yarns Braided Machine 1 Set
6. Electric Heating Oven 1 Set
7. HSJ-65 Single Screw Extruder 1 Set
8. Jockey (Marking Line) Extruder Sets(HSJ-25mm) 3 Sets
9. Outer Layer Coating Mould 1 Set
10. 2nd Quenching Cooling Water Tank 1 Set
11. 2nd Traction(Haul-off) Machine 1 Set
12. Pipe Coiler/Winder Machine 1 Set

Detail Images:

HSJ-65/28 Single Screw Extruder

Sino Holyson HSJ-65/28 16-50mm PVC Clear Water Hose Making Machine

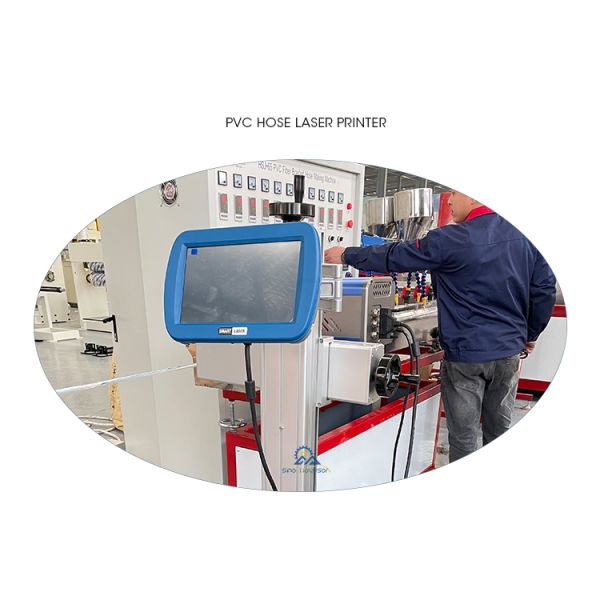

CO2 Lasers

Sino Holyson HSJ-65/28 16-50mm PVC Clear Water Hose Making Machine

Extrusion Die Head

Sino Holyson HSJ-65/28 16-50mm PVC Clear Water Hose Making Machine

3-Colors of Marking-Line Design

Sino Holyson HSJ-65/28 16-50mm PVC Clear Water Hose Making Machine

Quenching Cooling Water Tank

Sino Holyson HSJ-65/28 16-50mm PVC Clear Water Hose Making Machine

Haulf-off/Traction Machine

Sino Holyson HSJ-65/28 16-50mm PVC Clear Water Hose Making Machine

Fiber/Yarns Braided Machine

Sino Holyson HSJ-65/28 16-50mm PVC Clear Water Hose Making Machine Sino Holyson HSJ-65/28 16-50mm PVC Clear Water Hose Making Machine

Pipe Coiler/Winder Machine

Sino Holyson HSJ-65/28 16-50mm PVC Clear Water Hose Making Machine

Certifications:

Sino Holyson HSJ-65/28 16-50mm PVC Clear Water Hose Making MachineSino Holyson HSJ-65/28 16-50mm PVC Clear Water Hose Making MachineSino Holyson HSJ-65/28 16-50mm PVC Clear Water Hose Making Machine

Our Service:

Sino Holyson HSJ-65/28 16-50mm PVC Clear Water Hose Making MachineSino Holyson HSJ-65/28 16-50mm PVC Clear Water Hose Making Machine

Packing & Delivery:

Sino Holyson HSJ-65/28 16-50mm PVC Clear Water Hose Making Machine
