Sinohs Round Inlaid Drip Irrigation Pipe Making Machine / Drip Irrigation Pipe Extruder Machine
Sinohs Round Inlaid Drip Irrigation Pipe Making Machine / Drip Irrigation Pipe Extruder Machine
Sinohs Round Inlaid Drip Irrigation Pipe Making Machine / Drip Irrigation Pipe Extruder Machine
Sinohs Round Inlaid Drip Irrigation Pipe Making Machine / Drip Irrigation Pipe Extruder Machine
Sinohs Round Inlaid Drip Irrigation Pipe Making Machine / Drip Irrigation Pipe Extruder Machine
Sinohs Round Inlaid Drip Irrigation Pipe Making Machine / Drip Irrigation Pipe Extruder Machine
Specifications
Brand Name :
Sino-holyson
Certification :
CE ISO9001
Place of Origin :
Shandong, China
MOQ :
1set
Price :
$30000/set
Payment Terms :
T/T
Supply Ability :
10 Set/Sets per Month
Delivery Time :
5-8worksday
Packaging Details :
Film Packing/Woodcase Packing
warranty :
12months
Description

Sinohs Round Inlaid Drip Irrigation Pipe Making Machine / Drip Irrigation Pipe Extruder Machine

General Introduction: Detail Images

The drip irrigation pipe making machine is used to produce drip irrigation pipes. It heats and plasticizes the plastic raw materials and extrude them into pipe blanks. At the same time, it installs drippers and punches holes. After cooling, pulling and winding, it produces drip irrigation pipes with percise size and uniform distribution of drippers. They are widely used in agriculture, forestry and other fields to achieve water-saving irrigation.

Product paramenters

NO.
Model
Quantity
1.

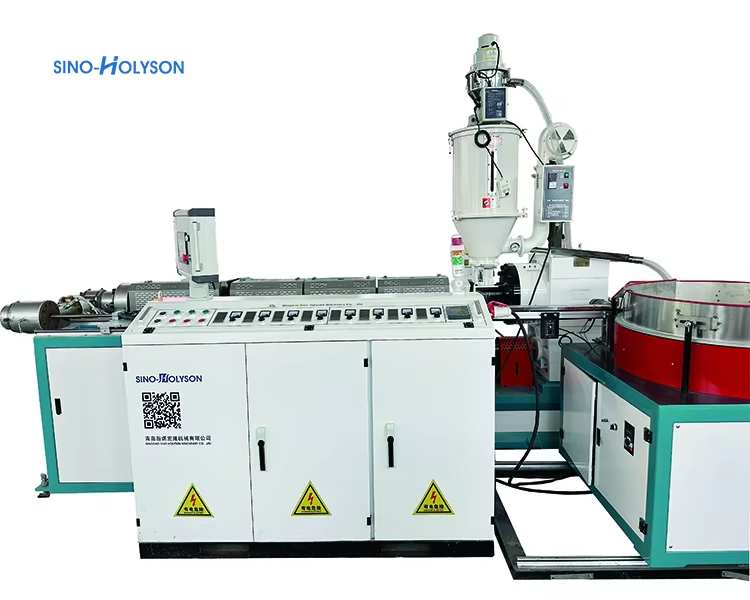

Dripper Insertion Machine[Diameter: 700mm]
1set
2.
Single Layer Crosshead
1set
3.
Effective Bucket Screen Changer
1set
4.
HSJ-75/33 Single Screw Extruder[45kw 80-150kg/hr]
1set
4.1
_Hopper Drier
1set
4.2
_Automatic Vacuum Loader
1set
4.3
_Electric Control Cabinet
1set
5.
Vacuum Bathing Cooling Water Tank[Length: 4~6m]
1set
6.
Aquarium Cooling Water Tank[Length: 6m]
1set
7.
Automatic Hole Drilling Machine
1set
8.
Double Caterpillar Traction Machine
1set
9.
Two Station Pipe Winder Machine
1set

Detail Images

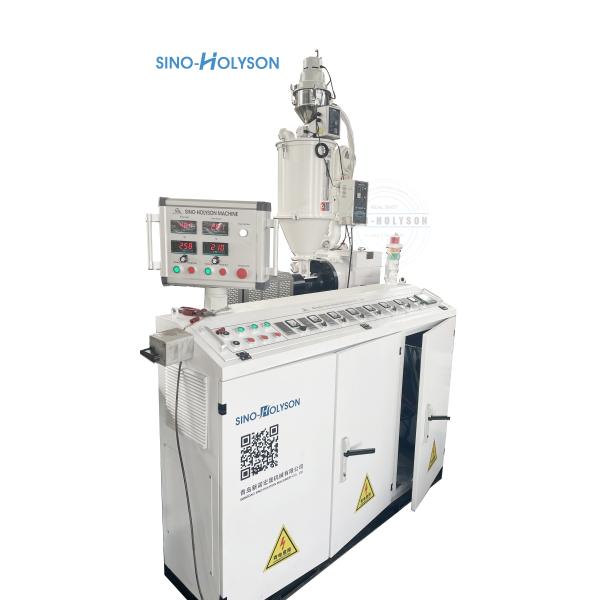

HSJ-75/33 Single Screw Extruder

The HSJ 75/33 Single Screw Extruder is a high - performance plastic processing device. Its screw diameter is 75mm, and the length-diameter ratio is 33:1. Driven by a 45kw motor, it can achieve an output of 80-150kg/h.

HSJ 65/33 Single Screw Extruder

The HSJ 65/33 Single Screw Extruder is a high-performance plastic processing equipment. Its screw diameter is 65mm, and the length-diameter ratio is 33:1. Driven by a 30kw motor, it can achieve an output of 65-120kg/h.

We can customize according to customer requirements

Sinohs Round Inlaid Drip Irrigation Pipe Making Machine / Drip Irrigation Pipe Extruder Machine
Sinohs Round Inlaid Drip Irrigation Pipe Making Machine / Drip Irrigation Pipe Extruder Machine
Sinohs Round Inlaid Drip Irrigation Pipe Making Machine / Drip Irrigation Pipe Extruder MachineThe drip irrigation pipe mold is a professional mold for the production of drip irrigation pipes. It is made of high-quality mold steel with high strength, wear resistance and corrosion resistance.

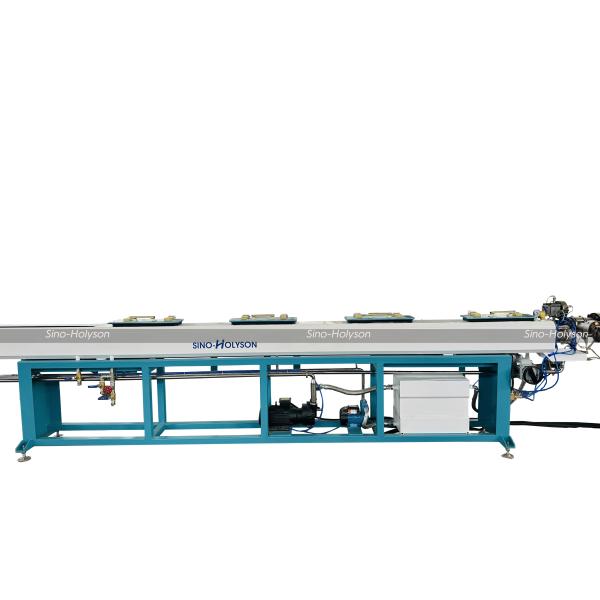

Sinohs Round Inlaid Drip Irrigation Pipe Making Machine / Drip Irrigation Pipe Extruder MachineThe vacuum shaping platform of the drip irrigation tube machine is a key component in the production of drip irrigation tubes.It uses vacuum suction to shape the extruded plastic tube into the required size and shape.

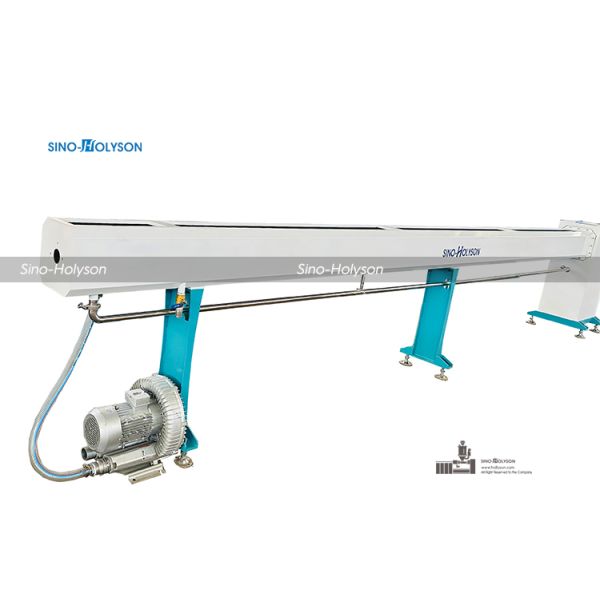

Sinohs Round Inlaid Drip Irrigation Pipe Making Machine / Drip Irrigation Pipe Extruder MachineThe bathing cooling water tank is an important equipment in the production process of drip irrigation pipes. It is mainly used to cool and shape the drip irrigation pipes after extrusion. By cooling the drip irrigation pipes in a water bath in a sink, the pipes can be quickly solidified.

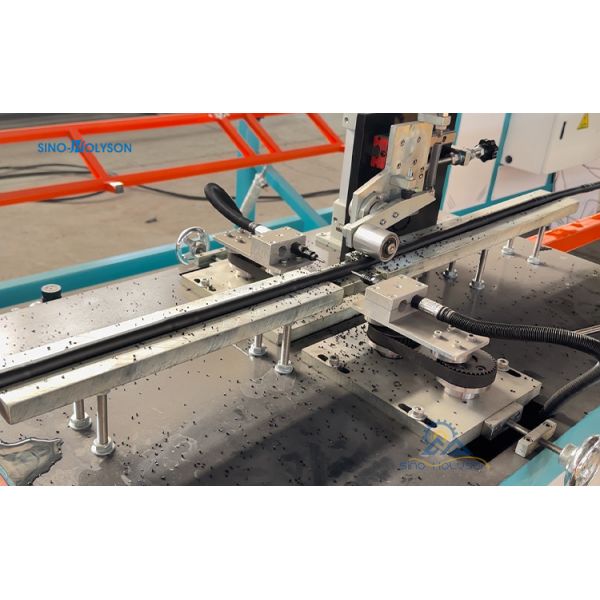

Sinohs Round Inlaid Drip Irrigation Pipe Making Machine / Drip Irrigation Pipe Extruder MachineThe automatic hole punching device positioning plate, pneumatic cylinder, rocker arm and positioning wheel in the positioning mechanism work together to fix the drip irrigation pipe at a specific position in the chute to ensure accurate drilling position.

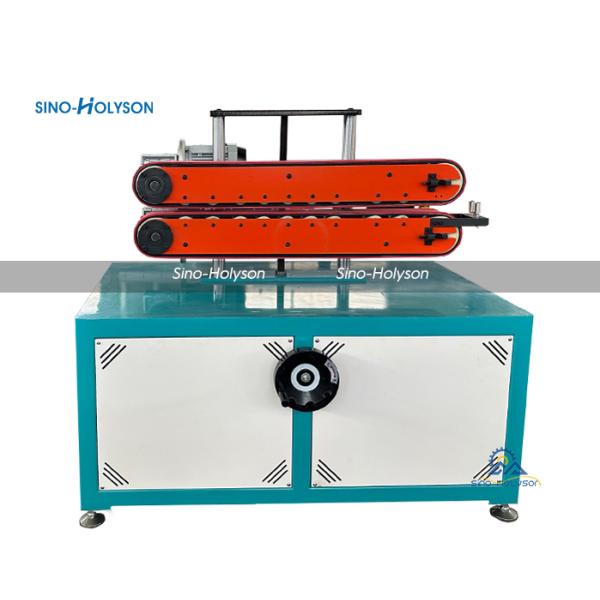

Sinohs Round Inlaid Drip Irrigation Pipe Making Machine / Drip Irrigation Pipe Extruder MachineThe traction machine of the drip irrigation pipe production line is one of the key equipment in the drip irrigation pipe production process. It is mainly used to pull the drip irrigation pipe to make it run smoothly on the production line and control the traction speed and tension of the drip irrigation pipe to ensure the quality and production efficiency of the product.

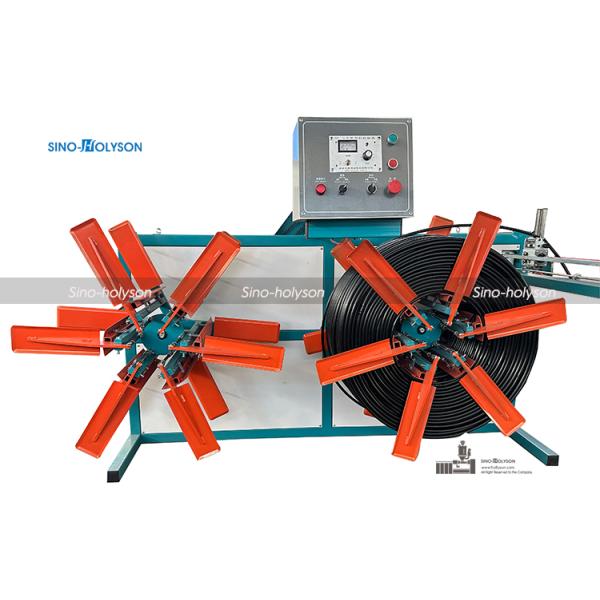

Sinohs Round Inlaid Drip Irrigation Pipe Making Machine / Drip Irrigation Pipe Extruder MachineThe coiling machine has a tension control system to ensure the pipes are wound properly, preventing stretching or deformation. Some advanced ones are equipped with a wire-guiding mechanism for more orderly winding, which improves efficiency and quality and facilitates subsequent storage and transportation.
Sinohs Round Inlaid Drip Irrigation Pipe Making Machine / Drip Irrigation Pipe Extruder Machine
