Single Screw PP PE Pipe Extruder With Omron Temperature Contrller
Single Screw PP PE Pipe Extruder With Omron Temperature Contrller
Single Screw PP PE Pipe Extruder With Omron Temperature Contrller
Single Screw PP PE Pipe Extruder With Omron Temperature Contrller
Single Screw PP PE Pipe Extruder With Omron Temperature Contrller
Single Screw PP PE Pipe Extruder With Omron Temperature Contrller
Single Screw PP PE Pipe Extruder With Omron Temperature Contrller
Single Screw PP PE Pipe Extruder With Omron Temperature Contrller
Specifications
Brand Name :
LB
Model Number :
LB
Certification :
CE / ISO
Place of Origin :
ZHANGJIAGANG
MOQ :
1 SET
Price :
negotiation
Payment Terms :
L/C, T/T,
Supply Ability :
15 SETS PER MONTH
Delivery Time :
45 WORKING DAYS
Packaging Details :
NORMAL PACKAGE
Name :
PE Pipe Extrusion Line
Application :
pipe making
Plastic Process :
PE
Temperature contrller :
Omron
Inverter :
ABB
Automatic grade :
Fully automatic
Screw Design :
Single screw
Voltage :
380V 50HZ 3Phase(Customized)
After-sales service provided :
Engineers available to service machinery overseas,Online support,Video technical support,Field installation,commissioning and training
Control :
PLC+Touch Screen
Description

Single Screw PP PE Pipe Extruder With Omron Temperature Contrller

Quick detail:

1. Configuration:

PE PP PPR pipe extrusion equipment is consisted of extruder, vacuum calibrator, hauling machine,cutter and

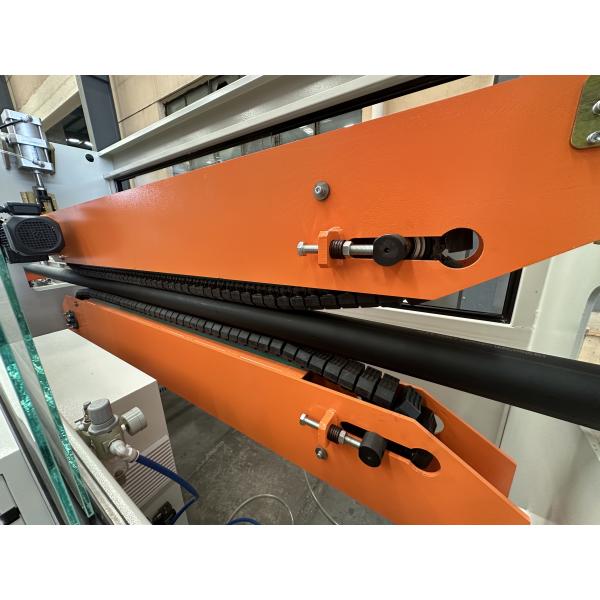

tipping rack, hauling machine unit has come ways of hauling, such as caterpillar type, three-claw type, four-

claw type, six-claw type and so on. There are also knife-lifting cutter and planetary cutter

2. Application:

PE PP PPR pipe extrusion equipment is mainly used in the production of water supply and drainage pipes,

which used for agriculture and construction, cable coating and other fields.

Description:

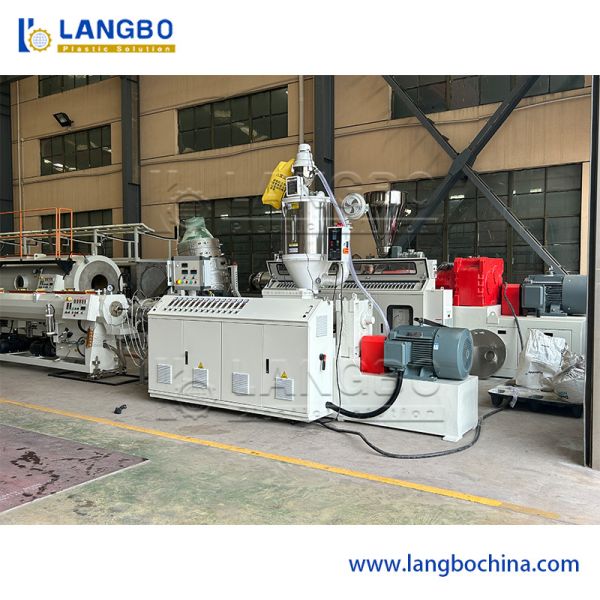

Main structure of PE Pipe Extrusion Machinery:

Adopt low consumption single screw extruder, the extruder L/D ratio is 33:1, nitriding layer is 0.4-0.7mm.Adopt

stainless steel vacuum sizing water tank, to ensure the durablity of the machine.Mould can according to

customer's requirement to do it.

1.screw specication:various kinds of screw specification are optional for client,adopt high quality

screw,38CrMoAlA material with Nitriding treatment.

2.full set of mould can safisfy different diameter pipe production

3.spraying and cooling in high level vacuum condition to ensure shaping the pipe effectively

4.stainless steel material barrel ,recycling water device to keep the reasonable working temperature

5.automatic length accounting device for precise cutting

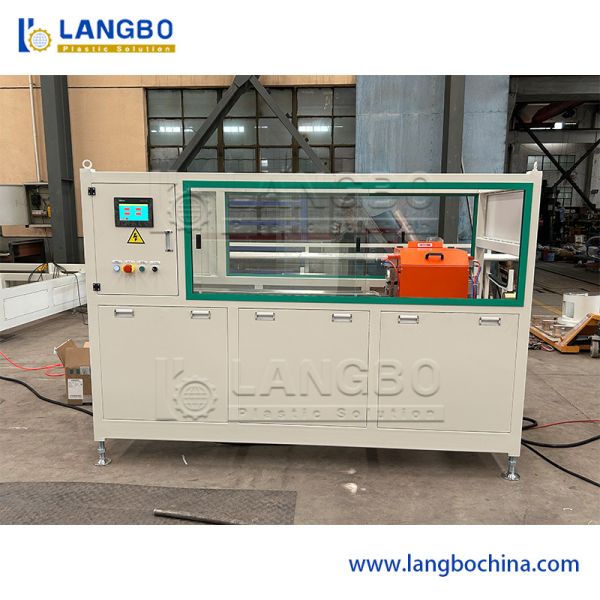

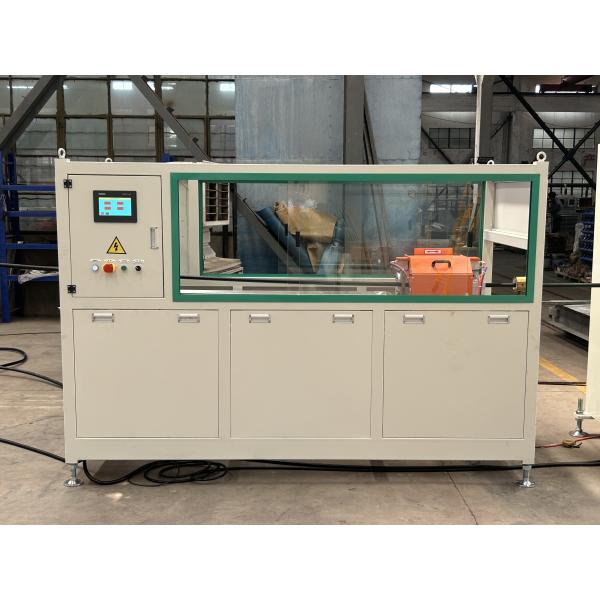

6.different kinds of cutting way are optional:

1)non chipping machine ,adopt advanced Germany technique

2)planetary cutting machine (main suitable for large diameter pipe)

3)saw blade cutting

7.stacker main part is stainless steel and adopt pneumatic controlled

Production Line Strucure

Model Screw Diameter L/D Ratio Production speed Machine total power Machine size
SJ50/38 50mm 38:1 25m/min 55kw 27x1.5x3
SJ60/38 60mm 38:1 35m/min 110kw 34x1.5x3
SJ75/38 75mm 38:1 45m/min 160kw 58x2.5x3

Single Screw PP PE Pipe Extruder With Omron Temperature Contrller
