Parallel Twin Screw Extruder Plastic Recycling Granulator Machine Pull Strap Pelletizer

Quick Details:

1. Condition: New
2. Application: Granules
3. Plastic Processed: developing new recipes and new products
4. Screw Design: Double-screw
5. Automatic Grade: Fully automatically
6. Place of Origin: Jiangsu, China (Mainland)
7. Model Number: TSSK series pet plastic pelletizing machine
8. Voltage: according to your requirement
9. Power(W): according to different capacity
10. Dimension(L*W*H): 9mx2.5mx3m
11. Weight: 8 ton
12. Certification: CE,ISO9001
13. After-sales Service Provided: Engineers available to service machinery overseas
14. Machine name: pet plastic recycling machine
15. Model: TSSK 75 pet plastic pelletizing machine
16. Material: PVC,PE,PP,PET,PS etc
17. Screw design: double screw/twin-screw
18. Packing: film packing & wood box container
19. Machine color: according to your requirements
20. Quality guarantee period: one year
21. Export country: all countries
22. Origin: ZHANGJIAGANG
23. Exhibition: Chinaplas, Interplastica etc.

Specification:

1. Waste PET bottle flakes pelletizing line

2. IV condition will be controlled well

3. Twin-screw extrusion pelletizing line

4. High efficient, long service life

PET plastic pelletizing machine:

These TSSK Series Twin / Double Screw Extruders are specially designed for PET bottles, flakes, PVC, Plastic

sheets and other crushed materials, with good performance and high output, and are easy to operate and

maintain.

This machine can carry out ideal viscosity of PET without complicated pre-crystallization dryer system. Only a

bit IV will be recycled. It can improve IV in the condition of adding some suitable additive.

Application Raw Materials: PET, PVC, WPC, PP, PE, HDPE, etc

Material shapes: bottle flakes, sheets, etc

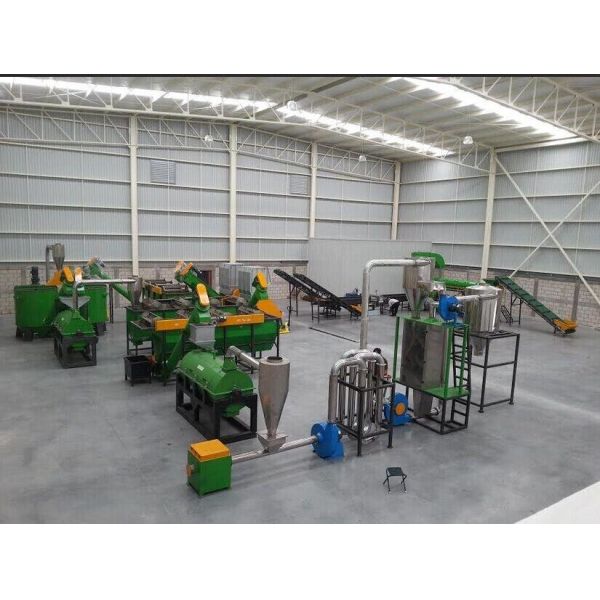

Production Process:

Use a Spiral charger to feed materials into the Extruder– materials evenly squeezed, melted, and plasticized in

the Extruder– material strips coming out from the machine head, after filtering system(Hydraulic Screen

Changer)– being cooled by Water tank– being dried by Gale dryer (strong dryer)– being transferred and cut in

the Pelletizer– being collected by Silo– the End

Application of PET pellets:

1. This Granulating machine is applied in PET waste flakes recycling field. Through extrusion, cutting and dry

process, the waste bottle will become to be pellets. The pellets are widely used in plastic industry, like sheet,

and profile production.

2. It can carry out ideal viscosity of PET without complicated pre-crystallization dryer system. Only a little IV

will be reduced. It can improve IV in the condition of adding some suitable additive.

3. From feeding system to final products, we can design and work out a complete system to satisfy all of your

production requirements. We will provide you with a pelletizing system of good quality and price as per your

requirements.

4. This production line is mainly used for the compounding, filling, reinforcing, pelletizing and modification of

plastic granules.

Main Technical Parameter:

Normal type:

High torque type:
