UPVC / PVC Pipe Extrusion Line Full Automatic Plastic Pipe Production Line
UPVC / PVC Pipe Extrusion Line Full Automatic Plastic Pipe Production Line
UPVC / PVC Pipe Extrusion Line Full Automatic Plastic Pipe Production Line
UPVC / PVC Pipe Extrusion Line Full Automatic Plastic Pipe Production Line
UPVC / PVC Pipe Extrusion Line Full Automatic Plastic Pipe Production Line
UPVC / PVC Pipe Extrusion Line Full Automatic Plastic Pipe Production Line
UPVC / PVC Pipe Extrusion Line Full Automatic Plastic Pipe Production Line
UPVC / PVC Pipe Extrusion Line Full Automatic Plastic Pipe Production Line
Specifications
Brand Name :
LB
Model Number :
LB-63W
Certification :
CE ISO
Place of Origin :
ZHANGJIAGANG
MOQ :
1 SET
Price :
USD EUR
Payment Terms :
L/C, T/T
Supply Ability :
15 SETS PER MONTH
Delivery Time :
45 WORKING DAYS
Packaging Details :
NORMAL PACKAGE
name :
PVC Pipe Extrusion Line
Application :
PVC Pipe making line
Raw Material :
PVC／UPVC
warranty :
One year
Automatic Grade :
full Automatic
final product :
PVC Pipe
motor :
Siemens
inverter :
ABB
Origin :
Jiangsu, China
Port of Shipping :
Shanghai
Description

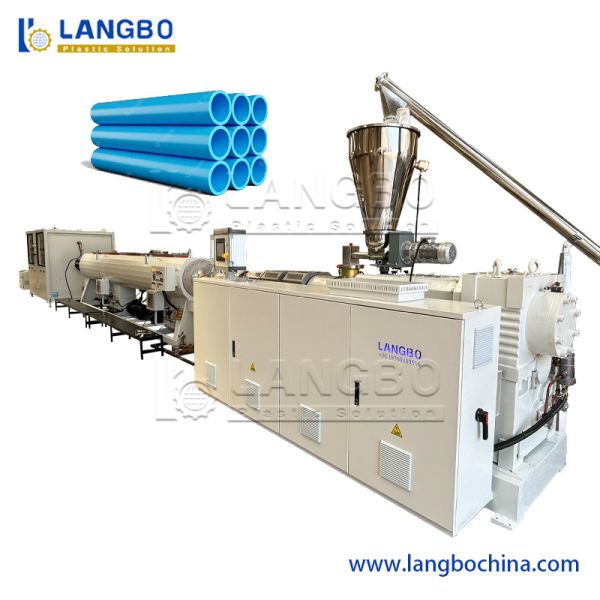

UPVC / PVC Pipe Extrusion Line Full Automatic Plastic Pipe Production Line

Product Description:

1 PVC / UPVC pipe production line is used in the production of various water supply, drainage, electrical and electric line pipe, etc..

2. The Extruder with the energy-efficient conical twin-screw and specially designed mould can achieve one-time two-piece of PVC pipe extrusion. It can improve productivity and efficiency, save space and labor costs.

3. For PVC pipe designed clean cutting machine is equipped with independent variable frequency speed regulation. According to the production's condition, the cutting speed can be adjusted. With the Hough clamping device, the fixture can maintain a longer life, the cutting surface is smooth, no burr. To solve the PVC chip dust pollution problem, an incremental encoder meter long cutting is appliedd, so that products are cut to size consistency.


4. With our ink printer customer can reduce more cost on print asset. Our ink nozzle can move between double spurt and print dual character.


5. Our twin-screw feeding device is special designed for PVC powder; an energy efficient feeding is one of the important reasons for our high capacity. What’s more, the feeding concept effectively prevent powder in the feeding process of bridging and material shortage phenomenon occurred.


6. The control system with intelligent distributed the new scheme, with a single adjustment, across the board synchronous linkage, automatic fault alarm, beautiful in appearance, convenient in operation, high degree of automation, stable and reliable production.

UPVC / PVC Pipe Extrusion Line Full Automatic Plastic Pipe Production Line

UPVC / PVC Pipe Extrusion Line Full Automatic Plastic Pipe Production Line

Components:

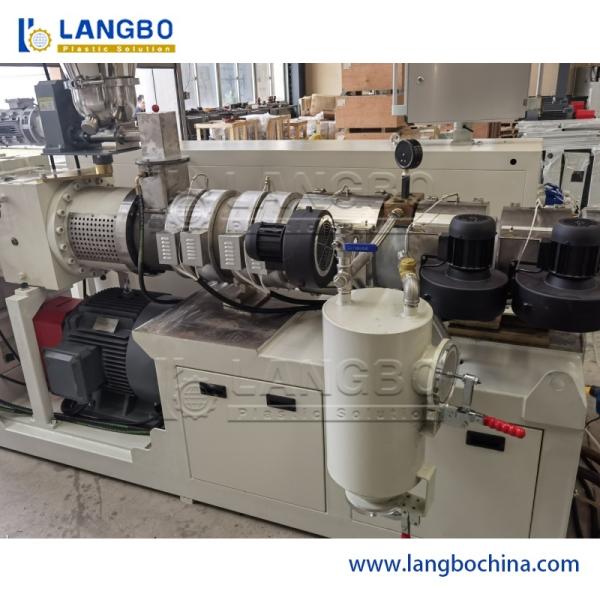

1. extruder: adopting conical twinscrew extruder, unique designed screw, realizing shorting plasticizing time, good compounding and excellent plasticization.

2. gearbox: adopting super quality gear box and reducer, with nice outline, stable running, low noise and long service time.

3. extruding barrel temperature controlling system: adopting cast aluminum heaters with stainless steel covers, wind cooling system, ensuring good features of cooling and heating, precision temperature controlling.

4. screw and barrel: screwcore installing with internal temperature controlling system, barrel equipped with vacuum degassing system, can get rid of the waste gas from the raw material which can guarantee super quality of the products.

5. driving system: adopting A.C motor, using FUJI or ABB inverters which provide stable torque output and various speed.

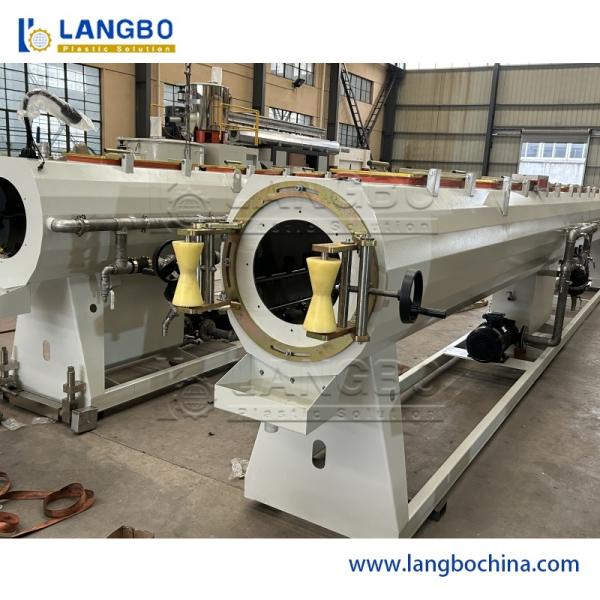

6. vacuum calibrating tank: with two vacuum chambers which can make sure the perfect roundness of the pipe, spraying water cooling, equipped with temperature controller, realizing automatic discharging the water, the main body of the tank make of stainless steel, long service time.

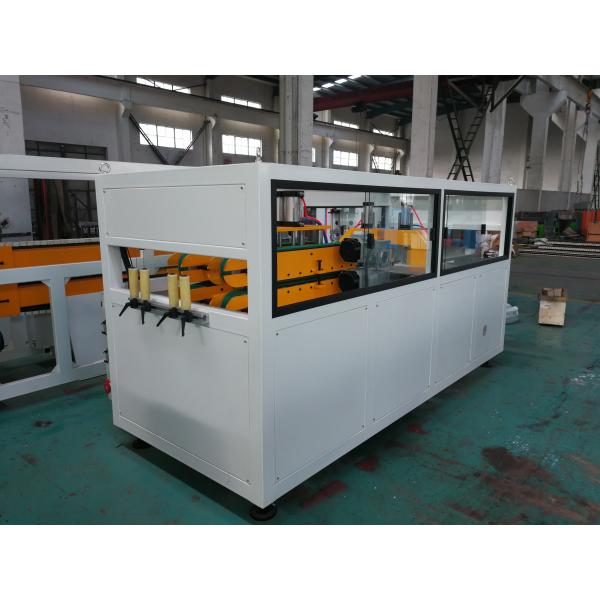

7. haul off machines: 2 laws, 3 claws, 4 claws, 6 claws and 8 claws are provided to manufacture various pipes, haul-off speed governed by the FUJI or ABB inverter.

8. cutting unit: saw cutting and planet saw cutting, with dust collection system.

9. staking unit: automatic overturning system, can freely fix the length of the pipe.

10. controlling system: manual controlling cabinet or SIEMENS PLC touch screen controlling.

UPVC / PVC Pipe Extrusion Line Full Automatic Plastic Pipe Production Line
UPVC / PVC Pipe Extrusion Line Full Automatic Plastic Pipe Production Line

Technical Parameter:

Model SJZ-51 SJZ-55 SJZ-65 SJZ-80 SJZ-92
Screw Dia.(mm) 51/105 55/110 65/132 80/156 92/188
Max. Rotating speed(rpm) 40 38 38 37 36
Main Motor(kw) 18.5 22 37 55 90
Capacity(kg/h) 80~100 100~150 150~250 250~380 380~700
Center height(mm) 1050 1050 1050 1050 1100
Net Weight(kg) 3000 3500 4000 5500 8000
L*W*H 3.6*1.1*2.1 3.6*1.1*1.2 4.2*1.5*2.4 4.7*1.5*2.4 6*1.6*2.5
