Flexible Pipe Making Machines With Conical Twin Screw High Frequency
Flexible Pipe Making Machines With Conical Twin Screw High Frequency
Flexible Pipe Making Machines With Conical Twin Screw High Frequency
Flexible Pipe Making Machines With Conical Twin Screw High Frequency
Specifications
Brand Name :
LB
Model Number :
LB
Certification :
CE ISO
Place of Origin :
ZHANGJIAGANG
MOQ :
1 SET
Price :
USD EUR
Payment Terms :
L/C, T/T
Supply Ability :
15 SETS PER MONTH
Delivery Time :
15 SETS PER MONTH
Packaging Details :
NORMAL PACKAGE
Final product :
PVC productions
Usage :
Water Pipe
Model :
SJZ-65/132
Condition :
New
Screw Design :
Twin Screw
Automatic Grade :
semi-automatic
Description

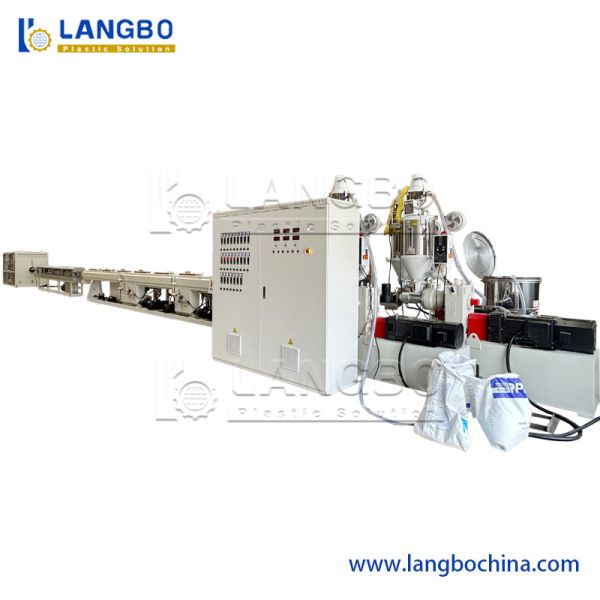

High frequency flexible pipe making machine with conical twin screw PVC WPC plastic
Product Description

SJZ series twin screw conical extruders are high effective extrusion equipments, they outperform conventional extruders in self-cleaning, raw material feeding, ventilation, enabling chemical reaction, and uniformed mixing and melting. This extrusion equipment is especially suitable for processing thermal-sensitive plastics. It plays more significant use in the extrusion of PVC powder.

When connected to an extrusion die and other downstream components, this powerful extrusion machine can turn various thermoplastics directly into pipes, profiles, sheets, plates etc. It is also the right equipment to use in plastic modification and pelletizing.

The characteristics:

1). Direct molding of PVC powder material, good effective.

2). Adopted automatic termocontroller, vacuum exhaust, screw core cooling. Air cooling or oil cooling for barrel.

3). Installed with Quantitative feeding device, over-load protection device, machine failure alarm device etc.

4). Electric control system adopts common operation panel, and PLC touch screen control panel, meets requirements of different customers.

5). High-performance deceleration torque distribution gear box, hard gear, low noise

6). Main electrical parts adopt famous imported brands, to reduce accident.

Main technical data:

Item/Model SJZ45/90 SJZ51/105 SJZ55/110 SJZ65/132 SJZ80/156 SJZ92/188
Screw diameter (mm) 45/90 51/105 55/110 65/132 80/156 92/188
Quantity of screws 2 2 2 2 2 2
Capacity(Kg/h) 90 120 140 300 450 800
Screw rotating speed(r/min) 46 37 36 35 37 33
Effective length (mm) 950 1060 1200 1440 2000 2500
Heating power (KW) 11 12 18 24 36 70
Main motor power(KW) 15 18.5 22 37 55 90
Dimension(m) 3.3*1.2*2.2 3.6*1.1*2.2 3.7*1.1*2.2 4.2*1.2*2.4 4.7*1.5*2.4 6.2*1.7*2.5
Weight (kg) 3000 3200 3500 4000 5500 8000
