Specifications
Brand Name :
LB
Model Number :
LB-1000
Certification :
CE,ISO
Place of Origin :
ZHANGJIAGANG
MOQ :
1 SET
Payment Terms :
L/C, T/T,
Supply Ability :
15 SETS PER MONTH
Delivery Time :
45 WORKING DAYS
Packaging Details :
NORMAL PACKAGE
Extruder power (kw) :
160KW
PIPE DIAMETER :
16-1000MM
COLOUR :
BLACK, ORANGE
APPLICATION :
GAS CONDUIT
MARK LINE :
YES
SCREW DIAMETER :
150MM
Screw design :
Single-screw
Voltage :
380V 50HZ 3Phase(Customized)
Automatic grade :
Full-automatic
After-sales service provided :
Engineers available to service machinery overseas,Online support,Video technical support,Field installation,commissioning and training
Warranty :
1 Year
Color :
Customised
Control :
PLC+Touch Screen
Description

PE NATURAL GAS TUBE EXTRUSION MACHINE WITH SINGLE SCREW EXTRUDER

Application:
Water and gas supply, micro&sprinkler irrigation system, sewerage pumping and effluent disposal system.

Properties & Advantages:

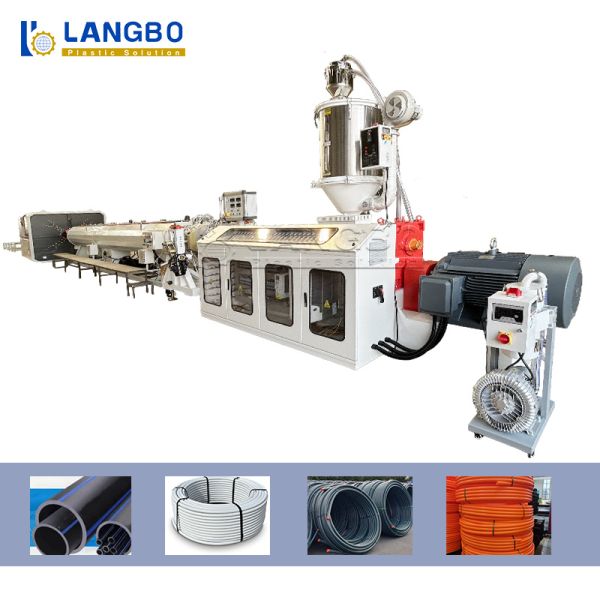

The pipes produced by this line have excellent hardness and flexibility. Their diameters vary from 16mm to 1200mm. The line consists of control system, extruder, die, vacuum calibration unit, hauling-off and planetary cutting system and stacker.
Two extruders are utilized in this line. The main extruder is used to extrude the large diameter pipes and the other small one is used to extrude the mark line.
Basket or spiral type composite die is used in this line. PLC control system and large chromatic liquid crystal screen make the operation very convenient.

Process flow:
Raw material+master batches--mixing--vacuum feeding--material dryness--single screw extruder--mark line extruder---mould--calibrator---vacuum spray calibration tank---spray cooling water tank---color-ribbon printer--pedrail haul-off--planetary cutter--stacker---finished product inspecting&packing

SPECIFICATIONS:

MODEL PIPE DIAMETER (MM) EXTRUDER MODEL MOTOR POWER
LB-63 20-63 SJ65/33 55AC
LB-110 20-110 SJ65/33 55AC
LB-160 75-160 SJ75/33 90AC
LB-250 90-250 SJ75/33 110DC
LB-315 110-315 SJ90/33 160DC
LB-450 160-450 SJ90/33 160DC
LB-630 315-630 SJ120/33 280DC
LB-800 500-800 SJ150/33 315DC
LB-1200 710-1200 SJ150/34 400DC


All Extrusion pipe lines can be equipped with various auxiliary equipments in order to meet our customer’s requests and provide solution from a single source.

Volumetric and gravimetric dosing units
Raw material loading units
Belling machines
Corrugators
Ink jet marking units
Winding units
Tilting tables
