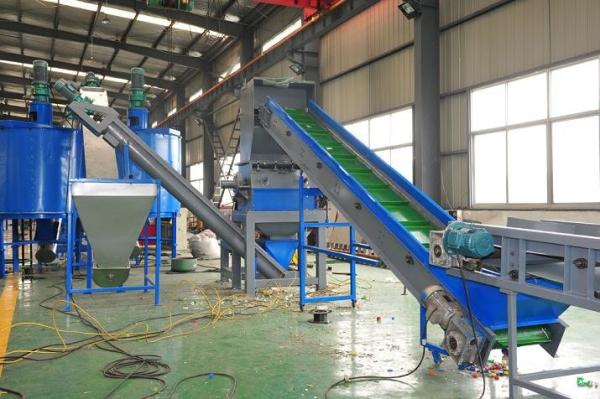

PP PET PS HDPE Waste Plastic Recycling Pelletizing Machine Stainless Steel 304
PP PET PS HDPE Waste Plastic Recycling Pelletizing Machine Stainless Steel 304
PP PET PS HDPE Waste Plastic Recycling Pelletizing Machine Stainless Steel 304
PP PET PS HDPE Waste Plastic Recycling Pelletizing Machine Stainless Steel 304
Specifications
Brand Name :
LB
Model Number :
LB
Certification :
CE, ISO
Place of Origin :
ZHANGJIAGANG
MOQ :
1 SET
Price :
USD, EUR
Payment Terms :
L/C, T/T
Supply Ability :
10 SETS PER MONTH
Delivery Time :
60 WORKING DAYS
Packaging Details :
STANDARD PACKAGE
Machine material :
stainless steel 304
motor power :
optional
washing type :
cold washing and hot washing
heating type :
eletrc heating or gas or petrol
pelletizing type :
water ring type and strand type
Capacity range :
300kg/hour-2000kg/hour
Description

PP PET PS HDPE Waste Plastic Recycling Pelletizing Machine Stainless Steel 304

Raw material & formulation Post-consumer bottles

Capacity range

 300kg/hour
500kg/hour
1000kg/hour
2000kg/hour

Description of final product

 Moisture: below 1%
Particle size: 17mm
Impurities: 100 ppm
PVC label content: 100 ppm
Production standard CE, ISO9001
Main components (1000kg/h)
(Name) (power)
Belt conveyor 2.2kw
Mechenical label remover 22kw
Manual separating table 1.5kw
Metal detector 0.4kw
Belt conveyor 2.2kw
Crusher 55kw
Screw conveyor 2.2kw
Floating washer 2.2kw+2.2kw+2.2kw
Screw conveyor 2.2kw
Hot washer 36kw
Screw conveyor 2.2kw
High speed frication machine 22kw
Screw conveyor 2.2kw
Floating washer 2.2kw+2.2kw+2.2kw
Screw conveyor 2.2kw
Vertical dewatering machine 11kw
Drying system 36kw+7kw
Zig Zag air classification system 11kw
Storage hopper

Waste pe pp film bags recycling (crushing, washing, and drying) machine line:
Raw material & formulation PE/PP rural film, twist bag, shopping bag, packing bag etc

Capacity range

 300kg/hour
500kg/hour
1000kg/hour
2000kg/hour
Description of final product Moisture: below 5%
Particle size: 30-110mm
Production standard CE, ISO9001
Main components (1000kg/h)
(Name) (power)
Belt conveyor 2.2kw
Crusher 55kw
Screw conveyor 2.2kw
Belt conveyor 2.2kw
Crusher 55kw
Screw conveyor 2.2kw
Floating washer 2.2kw+2.2kw+2.2kw
Screw conveyor 2.2kw
High speed frication machine 37kw
Screw conveyor 2.2kw
Vertical dewatering machine 110kw +1.5kw
Drying system-1 45kw+7kw
Transition storage hopper
Drying system-2 38kw+7kw
Storage hopper

2.2kw

SJ series single stage pe pp film granulator machine
Model SJ-65 SJ-80 SJ-100 SJ-120 SJ-150 SJ-200
Screw Dia. 65 80 100 120 150 200
L/D 28-30 28-30 28-30 28-30 28-30 28-30
Capacity 60-80kg/h 80-100kg/h 150kg/h 300kg/h 400kg/h 500kg/h
SJ series double-stage pe pp film granulator machine
Model SJ-100/100 SJ-120/120 SJ-150/150 SJ-200/200
Screw Dia. 100 120 150 200
L/D

28-30

10-15

28-30

10-15

28-30

10-15

28-30

10-15
Capacity 120-180kg/h 220-300kg/h 300-400kg/h 500-600kg/h
TSSK series Parallel twin screw PET granulation line/pelletizing machine
Model TSSK-50 TSSK-65 TSSK-75 TSSK-92
Screw Dia. 50.5 62.4 71.2 91
L/D 32-48 32-48 32-48 32-40
Output (kg/hr) 80 150 300

500
