PVC Edge Banding Tapes Extrusion Production Making Machine Sheet Type PVC Edge Banding Tape Sheet Making Machine with Slitting MachineTapes Extrusion Line Extruder Machine

Application product PVC Edge Banding:
PVC edge banding are widely use in furtinure,kitechen utensils and appliance teaching equiprement, laboratory cabinet desk decoration.

Production Flow:
Material →Heating Cooling Mixer →Material Feeding →Conical Twin Screw Extruder →Extrusion Mould & calibrator → Cooling →Printer → Haul-off Unit →cutter →stacker

Equipment Features:
For extruder Temperature Control system,Digital PLC control or Manual Temperature Control Meter
Easy Operation,Reliable performance,High Extrusion Efficiency,Easy Maintenance

Main Model

Model	YF120	YF180
Max. Product with(mm)	200	300
Max. Product height(mm)	6mm	10mm
Extruder model	SNJZ51/105	SNJZ65/132
Vacuum pump	no	no
Water pump	1.1kw	1.1kw
Hual-off motor	1.1kw	1.5kw

Machine list

Feeder	• To feed material into extruder;
Extruder	• World famous brand electrical component: Siemens, Schneid er, ABB etc; • High torque gearbox with adopts NSK/SK F bearing; • Siemens/WEG original motor achieved global after service; • Bimetallic screw and barrel; • Intelligent PLC controlling system with human-friendly interface.
Die head	• 3Cr13/3Cr17 material • Complete set include extrusion die head, calibrator and cooling tank • Adopt to single, co-extrusion, foam imitation marble profile
Cooling table	• Include full set of vacuum and water pump • Width: 240mm • Length: 6000mm • Independent operation panel for easy operation
Haul off	• Upper/lower caterpillar driven separately and speed control by inverter • Fast change type pads for easy operation • Install plate is adopts aluminum material
Cutter	• Lifting saw cutter with adopts double station dust collection system • Synchronous drivingby air cylinder or servo motor control
Stacker	• Stainless steel304 as touching material • Discharge driving by air cylinder
Hot stamping machine	• Decorative pattern and film protection of product surface

Technical information

Parts	No.	Name	Brand
1 Screw and barrel	1	Design	German design
	2	Main materials	38CrMoALA
	3	Screw heating	Silicon oil heating
	4	Barrel heater	Cast aluminum heater
	5	Barrel has vacuum exhausting system
2 Driving parts	1	Main motor	Siemens Brand
	2	Gear box	Top brand in China
3 Electric parts	1	Inverter	ABB brand
	2	Contactor	Schnei der brand
	3	Relay	Schnei der brand
	4	Breaker	Delixi brand
	5	Temperature meter	RKC brand
	6	Hauling motor	Densen brand
	7	Hauling gear box	Hard surface gear box
	8	Vacuum pump	Yvhuang brand
	9	Water pump	Yvhuang brand
	10	Cutting motor	Siemens brand
	11	PLC	Schnei der brand
4 Mechanical parts	We use CNC machines to ensure the precision of our mechanical parts
5 Protection system	We have a whole set of protection system for our machines, such as: 1 Current overload protection 2 Torque overload protection 3 Oil path blocking alarm 4 Vacuum overload alarm, and so on.
For more technical information please contact us by email.

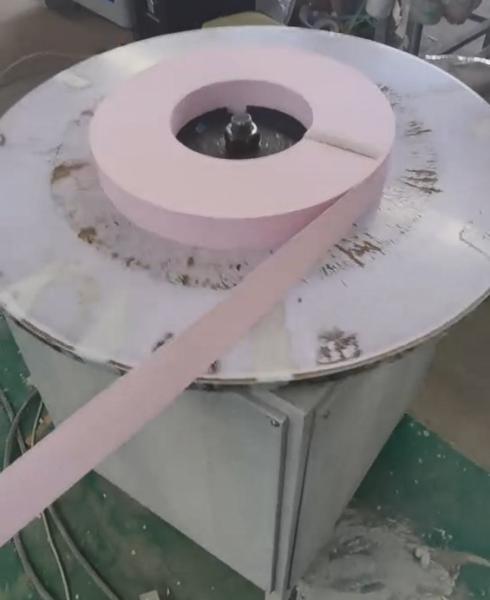

Detailed Photos

FAQ

Are you a trading company or factory? Can I have a factory visiting?

We are a factory that produces machines for customers directly. Yes, our production plant can be visited at any time. We are in Zhangjiagang, Jiangsu Province close to Shanghai and Wuxi. If you are near to us, the pick-up service is available.

How to build trust with Langbo

We can send working videos showing the machine running perfectly in several countries for online communication. We will provide customer-focused and tailored technical suggestions.

For offline contact, you can visit our factory and talk about the machine face to face, you can find our competence in the field of plastic extrusion and tell our ability in machine building.

Is the shipping cost included in the quotation?

Usually, our quotation contains FOB Shanghai as a shipment condition. This means the shipping cost between the delivery and destination ports will not be included in the quotation. The shipping cost fluctuates according to the delivery company and shipping date. Langbo can help customers to get the latest shipping price. Customers decide if we add the shipping cost to the quotation or choose a shipping agent by themselves.

What will happen after order confirmation

confirmation of Configuration

Sign of Proforma invoice

30% of total price pre-payment for production starting

Test running in the house, customers on-site or video connecting

Confirmation of machine condition

70% of the total price for delivery preparation

Confirmation of Delivery date

Shipping to customer

On-site commissioning

Training in machine operation and maintenance

Confirmation of handover

One year guarantee

Whole lifecycle service and technical support

What is the Payment Method?

T/T, D/P, Letter of credit, Cash transaction

How to guarantee the machine quality made by Langbo

We provide one year guarantee and whole-lifecycle technical support for our product. During in-house test running, customers can check the machine on-site. Any point for optimization will be done immediately.

How can customers get the exact machine as they wish?

Factory visiting before order

Product sample posting to Langbo for a better understanding of customer's expectations and configuration communication

On-site checking during test running

Do you have CE Certification?

Yes. Both our extrusion machine and plastic recycling machine have CE Certification.

What is the delivery time between order confirmation and delivery?

Usually 45 days. Depended on the certain project, the exact delivery time will be wrote on contract.

What are services for after-sale

One-year quality guarantee.

Quick response for technical support

Problem analysis for production problems

What means one-year quality guarantee

After the handover of the machine, Langbo provides free new parts for every non-man-made damage.

How to get the required area of the machine?

For a new plant, you can contact me. (whatsapp After knowing your demand, I can make the detailed solution and layout of the machine line. Meanwhile, I will provide technical guidance of your installation and specification.
