Flexible Sprinkler Irrigation Pipe Pvc Polyester Material For Pesticide Solution
Flexible Sprinkler Irrigation Pipe Pvc Polyester Material For Pesticide Solution
Flexible Sprinkler Irrigation Pipe Pvc Polyester Material For Pesticide Solution
Flexible Sprinkler Irrigation Pipe Pvc Polyester Material For Pesticide Solution
Specifications
Brand Name :
ET
Model Number :
1''-16''
Certification :
ISO9001:2008;SGS
Place of Origin :
Shandong, China (Mainland)
MOQ :
1000m
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
4000tons / per year
Delivery Time :
10-15 work days
Packaging Details :
woven plastic cloth wrapped, covered by paper card
name :
flat sprinkler hose
inner diameter :
25mm-408mm
outer diameter :
27.4mm-414.4mm
standard :
SGS, ISO; REACH
material :
new pvc and polyester
usage :
prinkler irrigation systems
Description

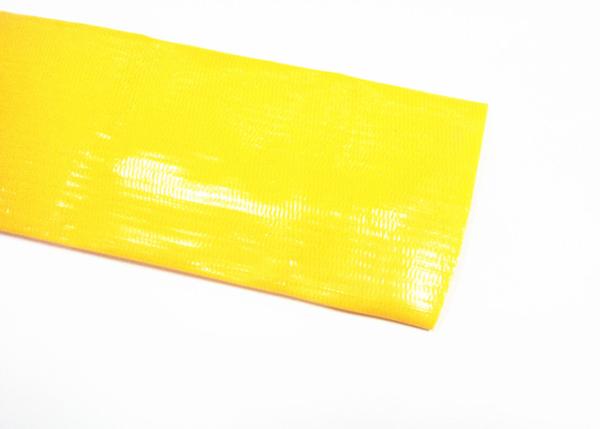

lay flat sprinkler hose flexible plastic water discharge hose pipe

size 1inch to 16inch (25mm to 408mm)
Color blue, green, yellow, red, black etc
temperature range -5℃ to 65℃
length 50m, 100m or customized
features

UV resistant
application

discharge liquid fertilized, pesticide solution

Construction:

Inner layer-high quality PVC material

Reinforcement-polyester fiber

Outer layer-high quality PVC material

Add anti-UV material the hose can be used for long life span without color changed

Features:

Complies with REACH Standard for food packaging

Embedded braid prevents material entrapment, ensures easy cleaning

Easy to bend into place

Flexible; permits tight clamping for leakproof connections

Maximum working pressure clearly printed on tubing

Clear tubing allows full visual flow monitoring

High quality, flexible, light weight

Nontoxic, without chemical odor. environmental grade

Portable and excellent adaptability

Durable, anti-aging. long time service life

Anti-bending

With colorful symbol lines on the surface of the hose, it looks attractive and beautiful.

We would like to offer full set of brass coupling and necessary accessories

Specification:

Standard Duty PVC Layflat Hose

Inner Diameter Wall Thickness Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
1 25 0.047 1.20 0.15 5 75 100 300
1-1/4 32 0.047 1.20 0.17 5 75 100 300
1-1/2 38 0.049 1.25 0.19 5 75 100 300
2 51 0.043 1.10 0.22 4 60 100 300
2-1/2 64 0.047 1.20 0.30 4 60 100 300
3 76 0.047 1.20 0.35 4 60 100 300
4 102 0.047 1.20 0.53 4 60 100 300
5 127 0.053 1.35 0.75 4 60 100 300
6 153 0.053 1.35 0.90 4 60 100 300
8 203 0.071 1.80 1.60 3 45 100 300
10 254 0.094 2.40 2.60 3 45 50 150
12 305 0.094 2.40 3.10 2 30 50 150
14 358 0.118 3.00 5.00 2 30 50 150
16 408 0.118 3.00 6.00 2 30 50 150

Medium Duty PVC Layflat Hose:

Inner Diameter Wall Thickness Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
1 25 0.051 1.30 0.16 8 120 100 300
1-1/4 32 0.051 1.30 0.19 7 100 100 300
1-1/2 38 0.051 1.3 0.21 7 100 100 300
2 51 0.053 1.35 0.30 6 90 100 300
2-1/2 64 0.057 1.45 0.40 6 90 100 300
3 76 0.057 1.45 0.50 6 90 100 300
4 102 0.071 1.80 0.80 6 90 100 300
5 127 0.075 1.90 1.08 6 90 100 300
6 153 0.094 2.40 1.60 6 90 100 300
8 203 0.103 2.60 2.20 5 75 50 150

Heavy Duty PVC Layflat Hose:

Inner Diameter Wall Thickness Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
1 25 0.060 1.50 0.19 10 150 100 300
1-1/4 32 0.060 1.50 0.21 10 150 100 300
1-1/2 38 0.071 1.7 0.29 10 150 100 300
2 51 0.061 1.55 0.35 8 120 100 300
2 51 0.069 1.75 0.40 10 150 100 300
2-1/2 64 0.079 2.00 0.60 10 150 100 300
3 76 0.079 2.00 0.66 8 120 100 300
3 76 0.095 2.40 0.80 10 150 100 300
4 102 0.083 2.10 0.92 8 120 100 300
4 102 0.095 2.40 1.00 10 150 100 300
5 127 0.075 1.90 1.08 10 150 100 300
6 153 0.118 3.00 2.00 8 120 100 300
8 203 0.126 3.20 2.80 6 90 50 150
