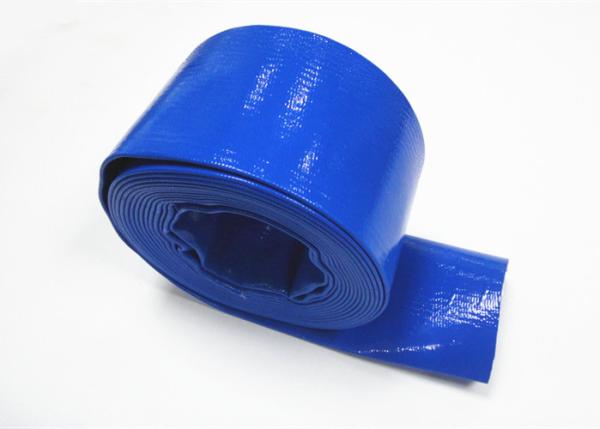

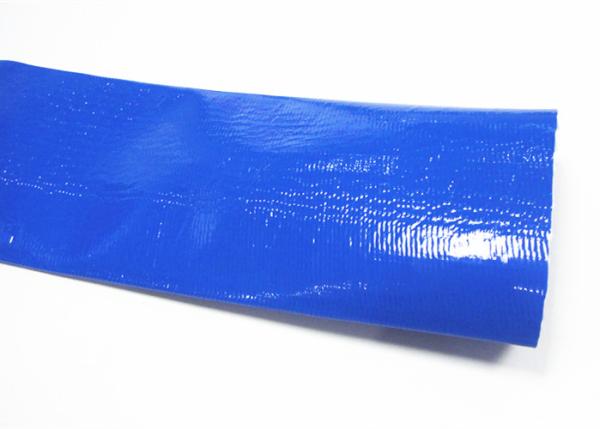

Soft Surface Lay Flat Discharge Hose 2 Bar To 15 Bar Working Pressure
Soft Surface Lay Flat Discharge Hose 2 Bar To 15 Bar Working Pressure
Soft Surface Lay Flat Discharge Hose 2 Bar To 15 Bar Working Pressure
Soft Surface Lay Flat Discharge Hose 2 Bar To 15 Bar Working Pressure
Specifications
Brand Name :
ET
Model Number :
1''-16''
Certification :
ISO9001:2008;SGS
Place of Origin :
Shandong, China (Mainland)
MOQ :
1000m
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
4000tons / per year
Delivery Time :
10-15 work days
Packaging Details :
woven plastic cloth wrapped, covered by paper card
name :
water pump hose
inner diameter :
25mm-408mm
outer diameter :
27.4mm-414.4mm
working pressure :
from 2bar to 15bar
sample :
available
usage :
farm irrigation
Description

pvc lay flat discharge hose layflat tubing - pvc layflat hose suppliers

product layflat water discharge hose
Color blue, green, yellow, red, black, orange, gray etc
temperature range -5℃ to 65℃
length 50m, 100m or customized
features

smooth tube with low friction loss
application

water washing and irrigation in factories and construction

Features:

attractive appearance, soft surface and light weight, high burst pressure and long service life, acid & alkali resistant, aging resistant, stretching resistant, anti-wrinkle, non-toxic, flavorless and environmental protection

Packaging Details

Poly-bags, Cartons and Wood pallets
Packing 1pcs/PVC bag,50pcs or 100pcs/CTN
The length and packing can be decided by customer's requirements.

We develop this new product lay flat pipe according market demand, which is updated

from the agriculture irrigation layflat hose. It had advantage of safety and environment protection, non enoxious odor, wide usage and powerful high pressure resistance. It is applicable in the condition of oil proof, wearing proof, acid-alkali proof and high-temperature proof etc.

Notice for Using:
1. Use in range of temperature and pressure
2. Expansion contraction of hose should be controlled within the pressure range of real-time temperature.
3. When the pressure increases to ensure the smooth, do not fold, to avoid damage hose due to local excessive pressure.

Specification:

Standard Duty PVC Layflat Hose

Inner Diameter Wall Thickness Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
1 25 0.047 1.20 0.15 5 75 100 300
1-1/4 32 0.047 1.20 0.17 5 75 100 300
1-1/2 38 0.049 1.25 0.19 5 75 100 300
2 51 0.043 1.10 0.22 4 60 100 300
2-1/2 64 0.047 1.20 0.30 4 60 100 300
3 76 0.047 1.20 0.35 4 60 100 300
4 102 0.047 1.20 0.53 4 60 100 300
5 127 0.053 1.35 0.75 4 60 100 300
6 153 0.053 1.35 0.90 4 60 100 300
8 203 0.071 1.80 1.60 3 45 100 300
10 254 0.094 2.40 2.60 3 45 50 150
12 305 0.094 2.40 3.10 2 30 50 150
14 358 0.118 3.00 5.00 2 30 50 150
16 408 0.118 3.00 6.00 2 30 50 150

Medium Duty PVC Layflat Hose:

Inner Diameter Wall Thickness Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
1 25 0.051 1.30 0.16 8 120 100 300
1-1/4 32 0.051 1.30 0.19 7 100 100 300
1-1/2 38 0.051 1.3 0.21 7 100 100 300
2 51 0.053 1.35 0.30 6 90 100 300
2-1/2 64 0.057 1.45 0.40 6 90 100 300
3 76 0.057 1.45 0.50 6 90 100 300
4 102 0.071 1.80 0.80 6 90 100 300
5 127 0.075 1.90 1.08 6 90 100 300
6 153 0.094 2.40 1.60 6 90 100 300
8 203 0.103 2.60 2.20 5 75 50 150

Heavy Duty PVC Layflat Hose:

Inner Diameter Wall Thickness Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
1 25 0.060 1.50 0.19 10 150 100 300
1-1/4 32 0.060 1.50 0.21 10 150 100 300
1-1/2 38 0.071 1.7 0.29 10 150 100 300
2 51 0.061 1.55 0.35 8 120 100 300
2 51 0.069 1.75 0.40 10 150 100 300
2-1/2 64 0.079 2.00 0.60 10 150 100 300
3 76 0.079 2.00 0.66 8 120 100 300
3 76 0.095 2.40 0.80 10 150 100 300
4 102 0.083 2.10 0.92 8 120 100 300
4 102 0.095 2.40 1.00 10 150 100 300
5 127 0.075 1.90 1.08 10 150 100 300
6 153 0.118 3.00 2.00 8 120 100 300
8 203 0.126 3.20 2.80 6 90 50 150
