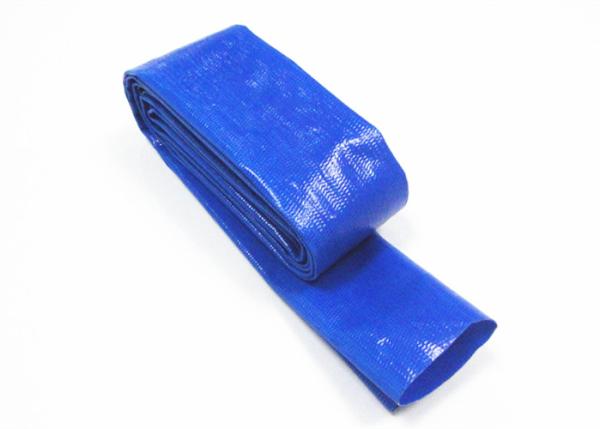

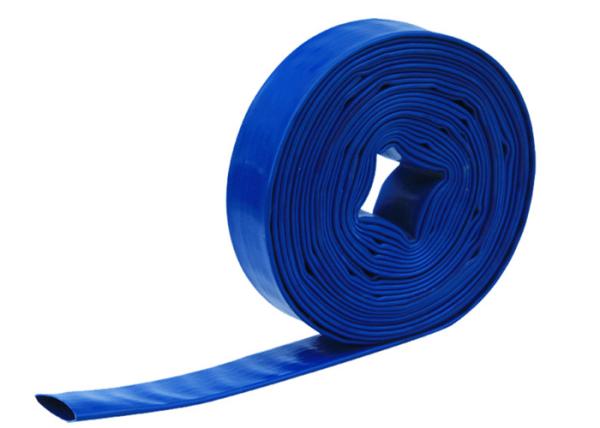

Light Weight 2 Inch 50mm Pvc Layflat Hose , Pvc Discharge Hose With Stretching Resistant
Light Weight 2 Inch 50mm Pvc Layflat Hose , Pvc Discharge Hose With Stretching Resistant
Light Weight 2 Inch 50mm Pvc Layflat Hose , Pvc Discharge Hose With Stretching Resistant
Light Weight 2 Inch 50mm Pvc Layflat Hose , Pvc Discharge Hose With Stretching Resistant
Specifications
Brand Name :
ET
Model Number :
1''-16''
Certification :
ISO9001:2008;SGS
Place of Origin :
Shandong, China (Mainland)
MOQ :
1000m
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
4000tons / per year
Delivery Time :
10-15 work days
Packaging Details :
woven plastic cloth wrapped, covered by paper card
name :
2 inch lay flat hose
inner diameter :
50mm
outer diameter :
53.2mm to 54.5mm
working pressure :
from 2bar to 15bar
sample :
available
usage :
farm irrigation
Description

Light Weight 2 Inch 50mm Pvc Layflat Hose , Pvc Discharge Hose With Stretching Resistant

product 50mm layflat hose
Color blue, green, yellow, red, black, orange, gray etc
temperature range -5℃ to 65℃
length 50m, 100m or customized
features

stretching resistant
application

Used in agricultural equipmen

Specification: 1’’-16’’

Material: new pvc

Thickness: 1.2mm-3.2mm

Length: 50m / 100m or customized

Color: blue, red, green, yellow, black etc.

Working pressure: 2bar – 10bar

Working temperature: -5℃-65℃

Transporting: water, chemical liquid etc.

PVC lay flat hose is a tough water discharge hoses made with a PVC cover and reinforced polyester yarn, which provides great durability and strength in all working situations. It is highly durable while maintaining great flexibility and best suited for low - high pressure applications.

Applications:

PVC layflat hose is designed for light and heavy duty applications, the hoses are most commonly used in agricultural equipment where continuous water flow through irrigation systems is required. Additional uses include water pump, pool & spa, construction, mines and marine.

Specification:

Standard Duty PVC Layflat Hose

Inner Diameter Wall Thickness Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
1 25 0.047 1.20 0.15 5 75 100 300
1-1/4 32 0.047 1.20 0.17 5 75 100 300
1-1/2 38 0.049 1.25 0.19 5 75 100 300
2 51 0.043 1.10 0.22 4 60 100 300
2-1/2 64 0.047 1.20 0.30 4 60 100 300
3 76 0.047 1.20 0.35 4 60 100 300
4 102 0.047 1.20 0.53 4 60 100 300
5 127 0.053 1.35 0.75 4 60 100 300
6 153 0.053 1.35 0.90 4 60 100 300
8 203 0.071 1.80 1.60 3 45 100 300
10 254 0.094 2.40 2.60 3 45 50 150
12 305 0.094 2.40 3.10 2 30 50 150
14 358 0.118 3.00 5.00 2 30 50 150
16 408 0.118 3.00 6.00 2 30 50 150

Medium Duty PVC Layflat Hose:

Inner Diameter Wall Thickness Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
1 25 0.051 1.30 0.16 8 120 100 300
1-1/4 32 0.051 1.30 0.19 7 100 100 300
1-1/2 38 0.051 1.3 0.21 7 100 100 300
2 51 0.053 1.35 0.30 6 90 100 300
2-1/2 64 0.057 1.45 0.40 6 90 100 300
3 76 0.057 1.45 0.50 6 90 100 300
4 102 0.071 1.80 0.80 6 90 100 300
5 127 0.075 1.90 1.08 6 90 100 300
6 153 0.094 2.40 1.60 6 90 100 300
8 203 0.103 2.60 2.20 5 75 50 150

Heavy Duty PVC Layflat Hose:

Inner Diameter Wall Thickness Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
1 25 0.060 1.50 0.19 10 150 100 300
1-1/4 32 0.060 1.50 0.21 10 150 100 300
1-1/2 38 0.071 1.7 0.29 10 150 100 300
2 51 0.061 1.55 0.35 8 120 100 300
2 51 0.069 1.75 0.40 10 150 100 300
2-1/2 64 0.079 2.00 0.60 10 150 100 300
3 76 0.079 2.00 0.66 8 120 100 300
3 76 0.095 2.40 0.80 10 150 100 300
4 102 0.083 2.10 0.92 8 120 100 300
4 102 0.095 2.40 1.00 10 150 100 300
5 127 0.075 1.90 1.08 10 150 100 300
6 153 0.118 3.00 2.00 8 120 100 300
8 203 0.126 3.20 2.80 6 90 50 150
