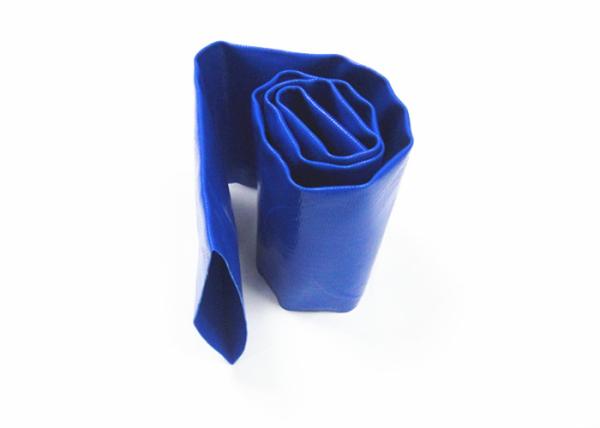

8 Bar 6 Lay Flat Hose , Lay Flat Discharge Hose For Agricultural Irrigation
8 Bar 6 Lay Flat Hose , Lay Flat Discharge Hose For Agricultural Irrigation
8 Bar 6 Lay Flat Hose , Lay Flat Discharge Hose For Agricultural Irrigation
8 Bar 6 Lay Flat Hose , Lay Flat Discharge Hose For Agricultural Irrigation
Specifications
Brand Name :
ET
Model Number :
1''-16''
Certification :
ISO9001:2008;SGS
Place of Origin :
Shandong, China (Mainland)
MOQ :
1000m
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
4000tons / per year
Delivery Time :
10-15 work days
Packaging Details :
woven plastic cloth wrapped, covered by paper card
name :
6 inch discharge hose
inner diameter :
153mm
outer diameter :
155.7mm to 159mm
working pressure :
from 4bar to 8 bar
sample :
available
usage :
water discharge
Description

8 Bar 6 Lay Flat Hose , Lay Flat Discharge Hose For Agricultural Irrigation

product 6 lay flat hose
Color blue, green, yellow, red, black, orange, gray etc
temperature range -5℃ to 65℃
length 50m, 100m or customized
features

anti-torsion
application

Agricultural irrigation

Construction:

PVC Layflat hose is a tough water discharge hoses made with a PVC cover and reinforced polyester yarn. The high tensile polyester yarn provides great durability and strength in all working situations. it is highly durable while maintaining great flexibility and best suited for low – medium - high pressure applications.

Size: 1’’ to 16’’

Inner diameter: 25mm to 408mm

Wall thickness: 1.1mm to 3.2mm
Color: green, yellow, blue, red, black etc.
Length: 150ft, 300ft or customized.

Working pressure: 2bar, 3bar, 4bar, 5bar, 6bar, 7bar, 8bar, 10bar

Burst pressure: 6bar to 30bar

Hose type:

Normal layflat pipe

Food grade layflat hose

Eco-friendly hose

Temperature range: -5℃ to +65℃

Specification:

Standard Duty PVC Layflat Hose

Inner Diameter Wall Thickness Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
1 25 0.047 1.20 0.15 5 75 100 300
1-1/4 32 0.047 1.20 0.17 5 75 100 300
1-1/2 38 0.049 1.25 0.19 5 75 100 300
2 51 0.043 1.10 0.22 4 60 100 300
2-1/2 64 0.047 1.20 0.30 4 60 100 300
3 76 0.047 1.20 0.35 4 60 100 300
4 102 0.047 1.20 0.53 4 60 100 300
5 127 0.053 1.35 0.75 4 60 100 300
6 153 0.053 1.35 0.90 4 60 100 300
8 203 0.071 1.80 1.60 3 45 100 300
10 254 0.094 2.40 2.60 3 45 50 150
12 305 0.094 2.40 3.10 2 30 50 150
14 358 0.118 3.00 5.00 2 30 50 150
16 408 0.118 3.00 6.00 2 30 50 150

Medium Duty PVC Layflat Hose:

Inner Diameter Wall Thickness Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
1 25 0.051 1.30 0.16 8 120 100 300
1-1/4 32 0.051 1.30 0.19 7 100 100 300
1-1/2 38 0.051 1.3 0.21 7 100 100 300
2 51 0.053 1.35 0.30 6 90 100 300
2-1/2 64 0.057 1.45 0.40 6 90 100 300
3 76 0.057 1.45 0.50 6 90 100 300
4 102 0.071 1.80 0.80 6 90 100 300
5 127 0.075 1.90 1.08 6 90 100 300
6 153 0.094 2.40 1.60 6 90 100 300
8 203 0.103 2.60 2.20 5 75 50 150

Heavy Duty PVC Layflat Hose:

Inner Diameter Wall Thickness Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
1 25 0.060 1.50 0.19 10 150 100 300
1-1/4 32 0.060 1.50 0.21 10 150 100 300
1-1/2 38 0.071 1.7 0.29 10 150 100 300
2 51 0.061 1.55 0.35 8 120 100 300
2 51 0.069 1.75 0.40 10 150 100 300
2-1/2 64 0.079 2.00 0.60 10 150 100 300
3 76 0.079 2.00 0.66 8 120 100 300
3 76 0.095 2.40 0.80 10 150 100 300
4 102 0.083 2.10 0.92 8 120 100 300
4 102 0.095 2.40 1.00 10 150 100 300
5 127 0.075 1.90 1.08 10 150 100 300
6 153 0.118 3.00 2.00 8 120 100 300
8 203 0.126 3.20 2.80 6 90 50 150
