1 Inch Lay Flat Hose / 25mm Flat Discharge Hose With Excellent Bonding
1 Inch Lay Flat Hose / 25mm Flat Discharge Hose With Excellent Bonding
1 Inch Lay Flat Hose / 25mm Flat Discharge Hose With Excellent Bonding
1 Inch Lay Flat Hose / 25mm Flat Discharge Hose With Excellent Bonding
Specifications
Brand Name :
ET
Model Number :
3/4''-16''
Certification :
ISO9001:2008;SGS
Place of Origin :
Shandong, China (Mainland)
MOQ :
1000m
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
4000tons / per year
Delivery Time :
10-15 work days
Packaging Details :
woven plastic cloth wrapped, covered by paper card
name :
1 lay flat hose
inner diameter :
25mm
wall thickness :
1.2mm to 1.5mm
working pressure :
from 2bar to 10bar
sample :
available
usage :
transfer water
Description

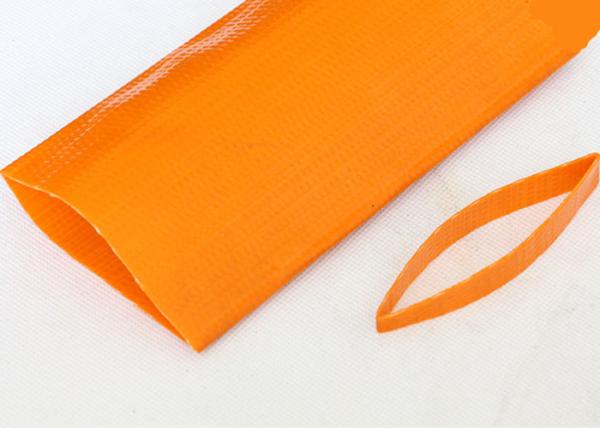

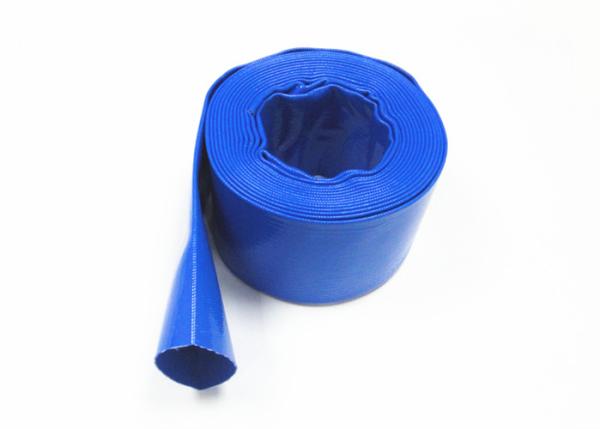

1 Inch Lay Flat Hose / 25mm Flat Discharge Hose With Excellent Bonding

product 25mm layflat hose
Color blue, green, yellow, red, black, orange, gray etc
temperature range -5℃ to 65℃
length 50m, 100m or customized
features

excellent bonding, no delaminating
application

irrigation in agriculture and farming

Applications:

Flexible layflat hose is an ideal choice for discharge, delivery and suction water or other liquid in agriculture and industrial as well as food industrial field

Standard duty and medium duty pipe are used for irrigation in agriculture and farming, transfer of liquid in industry

Heavy duty pipe is used for sludge discharge in agriculture, construction, industry, mining and marine service etc.

Features:

High pressure resistance, low temperature resistance, anti-corrosion. aging resistance. wear-resisting

Anti-chemical, aging resistant, good abrasion resistance, anti-uv

Molded by plastic coated once, thinner thickness, light weight and high pressure

Heavy duty pipe, reinforced with specialize industrial polyester yarn, high pressure.

Specification:

Standard Duty PVC Layflat Hose

Inner Diameter Wall Thickness Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
1 25 0.047 1.20 0.15 5 75 100 300
1-1/4 32 0.047 1.20 0.17 5 75 100 300
1-1/2 38 0.049 1.25 0.19 5 75 100 300
2 51 0.043 1.10 0.22 4 60 100 300
2-1/2 64 0.047 1.20 0.30 4 60 100 300
3 76 0.047 1.20 0.35 4 60 100 300
4 102 0.047 1.20 0.53 4 60 100 300
5 127 0.053 1.35 0.75 4 60 100 300
6 153 0.053 1.35 0.90 4 60 100 300
8 203 0.071 1.80 1.60 3 45 100 300
10 254 0.094 2.40 2.60 3 45 50 150
12 305 0.094 2.40 3.10 2 30 50 150
14 358 0.118 3.00 5.00 2 30 50 150
16 408 0.118 3.00 6.00 2 30 50 150

Medium Duty PVC Layflat Hose:

Inner Diameter Wall Thickness Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
1 25 0.051 1.30 0.16 8 120 100 300
1-1/4 32 0.051 1.30 0.19 7 100 100 300
1-1/2 38 0.051 1.3 0.21 7 100 100 300
2 51 0.053 1.35 0.30 6 90 100 300
2-1/2 64 0.057 1.45 0.40 6 90 100 300
3 76 0.057 1.45 0.50 6 90 100 300
4 102 0.071 1.80 0.80 6 90 100 300
5 127 0.075 1.90 1.08 6 90 100 300
6 153 0.094 2.40 1.60 6 90 100 300
8 203 0.103 2.60 2.20 5 75 50 150

Heavy Duty PVC Layflat Hose:

Inner Diameter Wall Thickness Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
1 25 0.060 1.50 0.19 10 150 100 300
1-1/4 32 0.060 1.50 0.21 10 150 100 300
1-1/2 38 0.071 1.7 0.29 10 150 100 300
2 51 0.061 1.55 0.35 8 120 100 300
2 51 0.069 1.75 0.40 10 150 100 300
2-1/2 64 0.079 2.00 0.60 10 150 100 300
3 76 0.079 2.00 0.66 8 120 100 300
3 76 0.095 2.40 0.80 10 150 100 300
4 102 0.083 2.10 0.92 8 120 100 300
4 102 0.095 2.40 1.00 10 150 100 300
5 127 0.075 1.90 1.08 10 150 100 300
6 153 0.118 3.00 2.00 8 120 100 300
8 203 0.126 3.20 2.80 6 90 50 150
