Customized High Pressure Pvc Flexible Hose Suction Steel Wire Or Fiber Braided
Customized High Pressure Pvc Flexible Hose Suction Steel Wire Or Fiber Braided
Customized High Pressure Pvc Flexible Hose Suction Steel Wire Or Fiber Braided
Customized High Pressure Pvc Flexible Hose Suction Steel Wire Or Fiber Braided
Customized High Pressure Pvc Flexible Hose Suction Steel Wire Or Fiber Braided
Customized High Pressure Pvc Flexible Hose Suction Steel Wire Or Fiber Braided
Specifications
Brand Name :
ET
Model Number :
1/4"-10"
Certification :
ISO9001:2008,SGS,ROHS
Place of Origin :
Shandong, China
MOQ :
1000meters
Price :
$0.1-$5 / meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
6000tons / year
Delivery Time :
10-15 work days
Packaging Details :
woven plastic cloth wrapped
Material :
pvc, steel wire, fiber
Color :
transparent or customized
Feature :
Thickened wall, wear-resistant
size :
1inch-4inch
standard :
SGS;ISO
Packing :
woven plastic cloth wrapped
Description

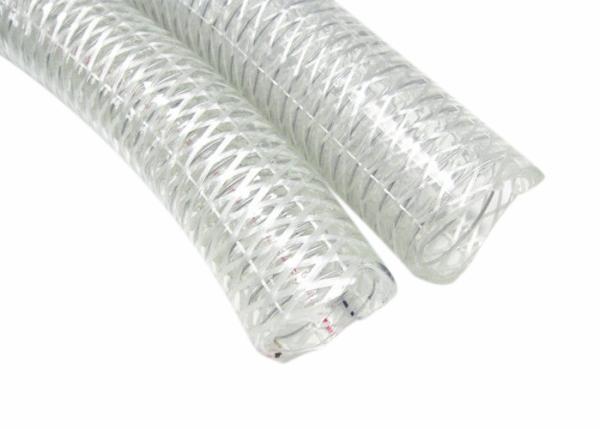

Customized High Pressure Pvc Flexible Hose Suction Steel Wire Or Fiber Braided

specification 1'' -4''
reinforced steel wire and fiber reinforce
length 20m/30m/40m/50m or customized
work pressure 4ar-8bar
application conveying liquid, gas and powder
features
flexible, durable, non smell, light weight

The tube is made of super polyvinyl chloride raw material, thickening fiber thread and galvanized steel wire. Because of the unique formula and corresponding reinforcing material, the hose has properties, such as soft, non-toxic and tasteless, wear-resistant and withstand high pressure.

Advantage:

Hoses can work normally in low temperature environment without rigid and brittle cracks.

It uses green eco-friendly materials which will not pollute the environment and not cause damage to the human body.

The inner wall is smooth, there is no obstacle to transport liquid and powder, no residue, and it is also very easy to clean.

The tube wall is thickened, so that it is very wear-resistant, you don’t worry when you use it because it will not break.

The double-layer reinforcement of fiber and steel wire makes the hose possess the dual characteristics of fiber tube and steel wire tube, and has good positive and negative pressure.

Application:

Professional oil suction pipe, we recommend you to use anti static pipe.

Conveying chemical raw materials in factory.

Ventilation and vacuum tube in the daily life.

Agricultural pumping pipes to transfer water.

Inner Diameter Outer Diameter Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
1 25 1.299 33 0.54 8 120 50 150
1-1/4 32 1.614 41 0.78 8 120 40 120
1-1/2 38 1.889 47 1.05 7 105 40 120
2 50 2.441 61 1.60 7 105 40 120
2-1/2 64 3.149 78 2.80 7 105 30 90
3 75 3.582 90 3.50 6 90 30 90
3-1/2 90 4.251 106 4.50 5 75 20 60
4 100 4.645 116 4.80 4 60 20 60
