Plastic Flexible Clear Hose With Reinforced Wire , Pvc Steel Wire Reinforced Hose
Plastic Flexible Clear Hose With Reinforced Wire , Pvc Steel Wire Reinforced Hose
Plastic Flexible Clear Hose With Reinforced Wire , Pvc Steel Wire Reinforced Hose
Plastic Flexible Clear Hose With Reinforced Wire , Pvc Steel Wire Reinforced Hose
Plastic Flexible Clear Hose With Reinforced Wire , Pvc Steel Wire Reinforced Hose
Plastic Flexible Clear Hose With Reinforced Wire , Pvc Steel Wire Reinforced Hose
Specifications
Brand Name :
ET
Model Number :
1/4"-10"
Certification :
ISO9001:2008,SGS,ROHS
Place of Origin :
Shandong, China
MOQ :
1000m
Price :
$0.1-$5 / meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
6000tons / year
Delivery Time :
10-15 work days
Packaging Details :
woven plastic cloth wrapped
Material :
pvc, steel wire, fiber
Color :
transparent, blue, green etc.
Feature :
High pressure resistance, Tensile resistance etc.
Usage :
industry, agriculture, food and medicine, construction, wind power generation
working temperature :
-5℃ - 65℃
Packing :
woven plastic cloth wrapped
Description

Plastic Flexible Clear Hose With Reinforced Wire , Pvc Steel Wire Reinforced Hose

size 1/4''-10''
color clear, blue,yellow etc.
Length: 20m/30m/50m/100m or customized
weight 0.12 - 23kg/m
working pressure 2bar - 10bar
burst pressure 6bar - 30bar

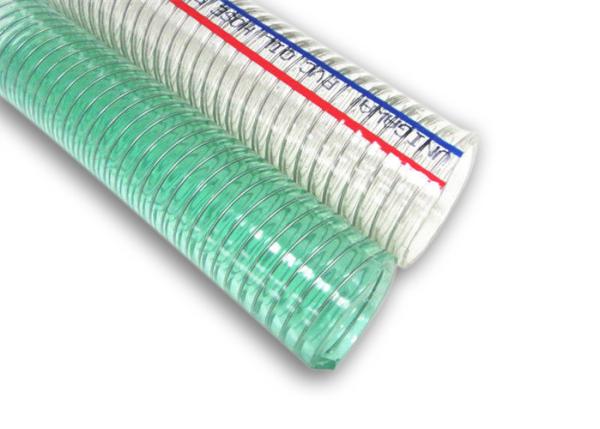

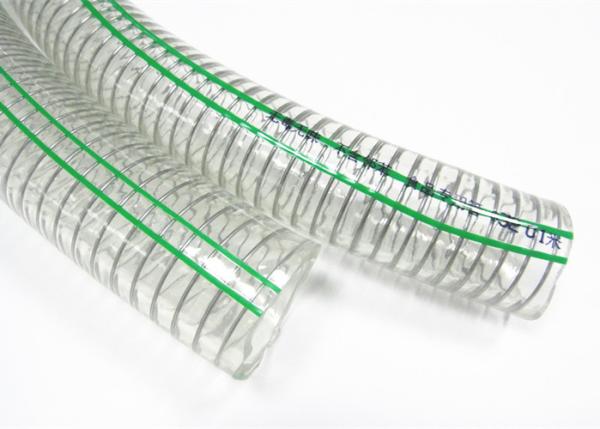

This product is a non-toxic pvc transparent hose embedded with spiral steel wire skeleton. It has high elasticity, wear resistance and excellent solvent resistance (most chemical additives).

The product meets the needs of new type pipes in machinery, petroleum, chemical industry, national defense industry, manufacturing and other industries. It is an ideal liquid delivery hose for the new generation, and its performance index has reached the international advanced level.

Features:

High pressure resistance

Tensile resistance

High / low temperature resistance

No smell, environmental protection

Advanced production technology

Long service life

Usage:

Transparent steel wire pipe is widely used in industry, agriculture, food and medicine, construction, wind power generation and other industries, suction and drainage, oil, low concentration chemicals and other liquid and solid particles, powder materials.

It can be used in vacuum pump agricultural machinery, drainage and irrigation equipment, petrochemical equipment, plastic processing machinery and food sanitation machinery industries.

Specification:

Inner Diameter Outer Diameter Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
1/4 6 0.433 11 0.12 10 145 100 300
5/16 8 0.551 14 0.15 10 145 100 300
3/8 10 0.629 16 0.20 10 145 100 300
1/2 12 0.708 18 0.22 8 120 100 300
5/8 15 0.866 22 0.31 8 120 100 300
3/4 19 0.984 25 0.36 8 120 50 150
1 25 1.299 33 0.54 8 120 50 150
1-1/4 32 1.614 41 0.78 7 100 40 120
1-1/2 38 1.889 48 1.05 6 90 40 120
1-3/4 45 2.204 56 1.30 6 90 40 120
1-7/8 48 2.322 59 1.40 6 90 40 120
2 50 2.441 62 1.60 5 75 40 120
2-1/4 58 2.755 70 2.00 5 75 30 90
2-1/2 63 3.149 80 2.80 5 75 30 90
3 75 3.582 91 3.50 4 60 30 90
3-1/2 90 4.251 108 4.50 4 60 20 60
4 100 4.645 118 4.80 3 45 20 60
5 127 5.629 143 6.00 3 45 20 60
6 152 6.692 170 9.00 3 45 10 30
8 200 8.818 224 12.00 3 45 10 30
10 250 10.866 276 23.00 2 30 10 30
