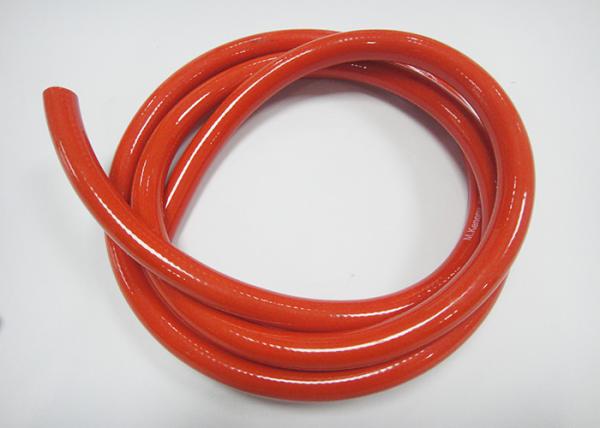

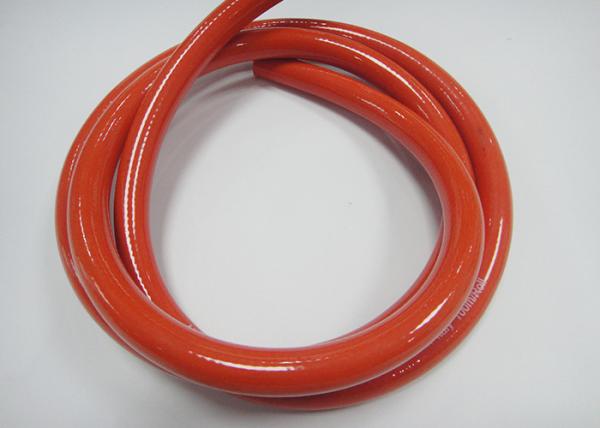

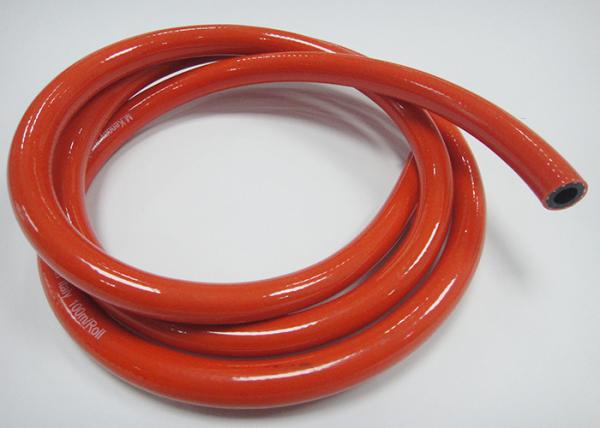

PVC Rubber Composite Multipurpose Utility Hose for Water Air Oil
PVC Rubber Composite Multipurpose Utility Hose for Water Air Oil
PVC Rubber Composite Multipurpose Utility Hose for Water Air Oil
PVC Rubber Composite Multipurpose Utility Hose for Water Air Oil
PVC Rubber Composite Multipurpose Utility Hose for Water Air Oil
PVC Rubber Composite Multipurpose Utility Hose for Water Air Oil
Specifications
Brand Name :
ET
Model Number :
1/4"-1''
Certification :
ISO Certificate
Place of Origin :
Shandong, China
MOQ :
1000m
Price :
$0.03-$5 / meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
6000tons / year
Delivery Time :
10-15 work days
Packaging Details :
transparent plastic film wrapped
Name :
PVC Multipurpose Hose
Size :
1/4"-1"
Type :
Plastic Profiles
Material :
PVC & Rubber
Colour :
Blue, Yellow, Red,Black
Description

PVC Rubber Composite Multipurpose Utility Hose for Water Air Oil

The PVC hose is suitable for compressed air, common industrial water, non-corrosive oil. It is an ideal choice for assembly production lines and installation workshops. It is widely used in automation equipment with air as the main fluid. Pneumatic, pneumatic tools, gas pipeline instruments, mechanical lubrication to transport non-corrosive chemical objects. To maintain a long service life, it must be used at rated working pressure and ambient temperature.

Parameter:

Material: Specially formulated PVC & Rubber compound and high tensile polyester yarn

Size:1/4"-1"

Working Pressure: 20bar

Length: 10/15/30/50/100m

Standard: ISO 2398

Features:

1, resistance to aging；

2, oil resistance: PVC material itself determines the product is oil resistant.

3, high pressure: the product has a high burst pressure, can protect the accidental rolling of the vehicle or heavy objects during the operation, effectively avoiding damage to the pipe.

4, soft seasons: the material is added with cold-resistant agent, so that the pipe has good weather resistance, work is handy, freely retractable.

5, good wear resistance: the material of the pipe and its structure determine that the pipe can effectively reduce wear during use.

6, light weight: reduce the fatigue of work, but also reduce wear and tear.

7, The wire is firmly bonded to the inner and outer skins without delamination. The structure is subject to temperature changes with little effect.

Specification:

Inner Diameter Outer Diameter Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
1/4 6.5 0.472 12 0.11 20 300 100 300
5/16 8.5 0.551 14 0.13 20 300 100 300
3/8 10 0.629 16 0.17 20 300 100 300
1/2 13 0.787 20 0.25 20 300 100 300
5/8 16 0.984 25 0.39 20 300 100 300
3/4 19 1.102 28 0.45 20 300 50 150
1 25 1.338 34 0.56 20 300 50 150
