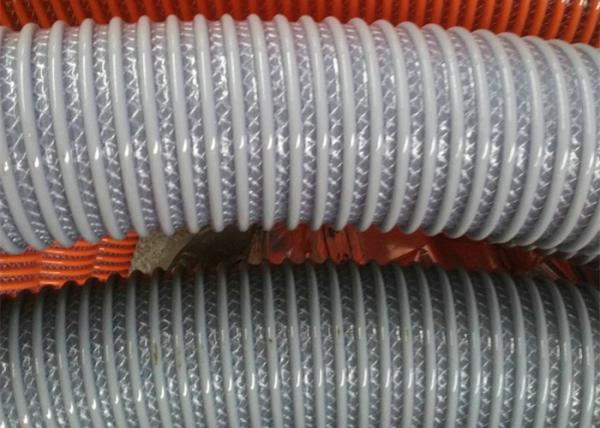

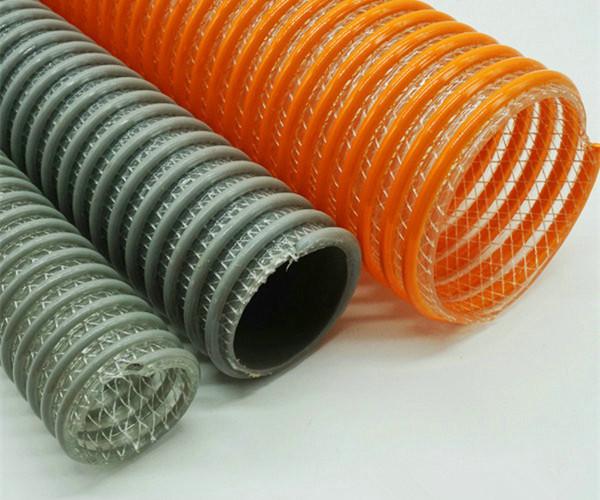

Flexible PVC Water Hose Reinforced Helix Suction And Discharge Hose / Pipe / Tube
Flexible PVC Water Hose Reinforced Helix Suction And Discharge Hose / Pipe / Tube
Flexible PVC Water Hose Reinforced Helix Suction And Discharge Hose / Pipe / Tube
Flexible PVC Water Hose Reinforced Helix Suction And Discharge Hose / Pipe / Tube
Flexible PVC Water Hose Reinforced Helix Suction And Discharge Hose / Pipe / Tube
Flexible PVC Water Hose Reinforced Helix Suction And Discharge Hose / Pipe / Tube
Flexible PVC Water Hose Reinforced Helix Suction And Discharge Hose / Pipe / Tube
Flexible PVC Water Hose Reinforced Helix Suction And Discharge Hose / Pipe / Tube
Specifications
Brand Name :
ET
Model Number :
2"-8''
Certification :
ISO9001:2008,SGS,ROHS
Place of Origin :
Shandong, China
MOQ :
1000m
Price :
$0.03-$5 / meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
6000tons / year
Delivery Time :
10-15 work days
Packaging Details :
transparent plastic film wrapped
product name :
pvc fiber reinforced suction hose
standard :
ISO; SGS etc.
working temperature :
-5℃-65℃
inner diameter :
50mm-201mm
outer diameter :
62mm-224mm
thickness :
6mm-6.5mm
Description

flexible pvc fiber reinforced helix suction and discharge hose / pipe / tube

specification 2inch-8inch
color yellow, blue, gray, red, orange, black etc.
length 20m, 30m, 40m, 50m/roll or as consumer's requst
bending radius 0.5m-1.9m
features Light weight and flexible, non-toxic
application conveying water, oil, powder

Construction:

Flexible PVC, rigid PVC helix, synthetic braiding, smooth bore, corrugated O.D.

Characteristics:

Light weight and flexible, non-toxic;

External helix provides for easy drug;

Rated for both suction and discharge;

Clear sidewall permits visual check of material flow.

Use high-strength fibers as reinforcement.

Combine the features of suction hose and fiber hose.

Crushing abrasion and weather resistance.

Working Temperature: -5°C—+65°C

Application:

Heavy duty suction and discharge;

High pressure working;

Fish suction;

Irrigation lines;

Pumps and construction dewatering;

Rental and construction pumping.

used for conveying water, oil, powder

can be used conveying wine, juice etc.

Specifications:

Inch I.D. O.D.

LENGTH

/COIL

NEGATIVE PRESSURE

 B.P BENDING RADIUS WEIGHT
mm mm m MPa MPa m kg/m
2 50±1 62 50 0.097 1.9 0.5 1.1
2-1/2 64±1 77 30 0.097 1.5 0.6 1.5
3 75±1 90 30 0.097 1.2 0.65 1.8
4 102±1.5 119 30 0.097 0.9 0.85 2.7
6 152±1.5 174 11 0.097 0.7 1.5 5.7
8 201±1.5 224 11 0.097 0.5 1.9 8.0
