Heavy Duty Water Hose Fiber Steel Wire Composite Smooth Surface Anti Chemical
Heavy Duty Water Hose Fiber Steel Wire Composite Smooth Surface Anti Chemical
Heavy Duty Water Hose Fiber Steel Wire Composite Smooth Surface Anti Chemical
Heavy Duty Water Hose Fiber Steel Wire Composite Smooth Surface Anti Chemical
Heavy Duty Water Hose Fiber Steel Wire Composite Smooth Surface Anti Chemical
Heavy Duty Water Hose Fiber Steel Wire Composite Smooth Surface Anti Chemical
Heavy Duty Water Hose Fiber Steel Wire Composite Smooth Surface Anti Chemical
Heavy Duty Water Hose Fiber Steel Wire Composite Smooth Surface Anti Chemical
Specifications
Brand Name :
ET
Model Number :
1"-4''
Certification :
ISO9001:2008,SGS,ROHS
Place of Origin :
Shandong, China
MOQ :
1000m
Price :
$0.03-$5 / meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
6000tons / year
Delivery Time :
10-15 work days
Packaging Details :
transparent plastic film wrapped
product name :
reinforced water hose
size :
1'' to 4''
material :
pvc ,steel wire, fiber, copper wire
inner diameter :
25mm-100mm
outer diameter :
33mm-116mm
reinforcement :
zinc-plated steel wire, high intensity fiber
Description

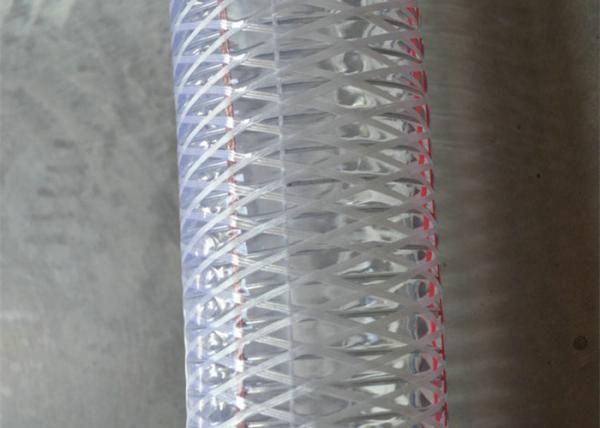

anti-static heavy duty pvc fiber and steel wire composite reinforced hose / pipe

color transparent, red, green, blue, grey yellow, orange etc.
wall thickness 4mm-8mm
length 20m, 30m, 50m/roll or as consumer's requst
working pressure 4bar to 8bar
features non-toxic, anti static, high pressure, wear resistance etc.
standard ISO; SGS; etc.

Description:

The anti static fiber and steel wire composite reinforced hose, used high-strength fibers and high quality galvanized spring steel wire as reinforcement, inserted the copper wire into the hose, can avoid blockage of the internal flow because of the static electricity. The pressure resistance was enhanced 2-4times than the single spiral wire reinforced hose.

Features:

Anti-abrasion

Cover and tube is smooth

Anti-UV

Working temperature: -5℃-65℃

Anti-chemical

Application:

This anti static pvc fiber & steel wire composite reinforced hose is specially used for conveying gas, liquid and powder in the place where easily generating static, such as buildings, factories, mine and oil storage.

Specification:

Inner Diameter Outer Diameter Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
1 25 1.299 33 0.54 8 120 50 150
1-1/4 32 1.614 41 0.78 8 120 40 120
1-1/2 38 1.889 47 1.05 7 105 40 120
2 50 2.441 61 1.60 7 105 40 120
2-1/2 64 3.149 78 2.80 7 105 30 90
3 75 3.582 90 3.50 6 90 30 90
3-1/2 90 4.251 106 4.50 5 75 20 60
4 100 4.645 116 4.80 4 60 20 60
