Specifications
Brand Name :
ET
Model Number :
1/8"-2''
Certification :
ISO9001:2008,SGS,ROHS
Place of Origin :
Shandong, China
MOQ :
1000m
Price :
$0.03-$5 / meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
6000tons / year
Delivery Time :
10-15 work days
Packaging Details :
transparent plastic film wrapped
product name :
Water Level Hose
material :
pvc
working temperature :
-5℃-65℃
inner diameter :
3mm-50mm
outer diameter :
5mm-58mm
thickness :
1mm-4mm
Description

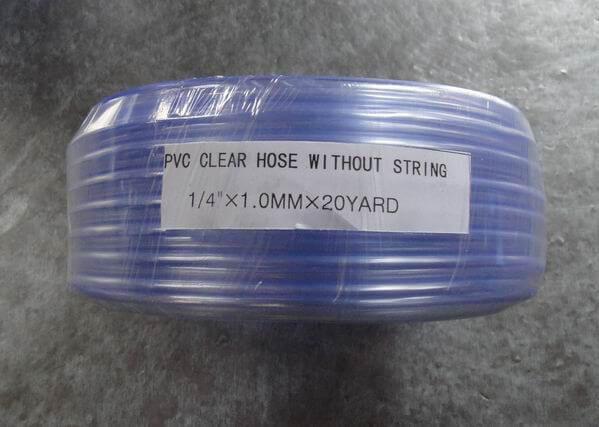

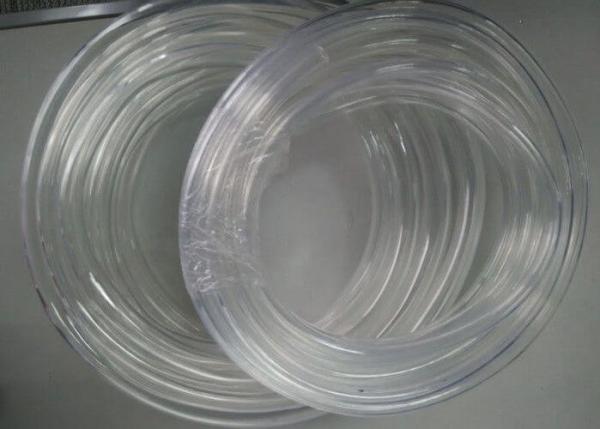

non toxic pvc clear unreinforced water level vinyl hose / tube / tubing

specification 1/8inch-2inch
color yellow, blue, gray, red, orange, black etc.
length 20m, 30m, 40m, 50m/roll or as consumer's requst
working pressure 2bar to 4bar
features good flexibility, light weight, weathering resistant, smooth tube
application transfer various fluids and air

Non Toxic PVC Clear Unreinforced Water Level Hose Tube which is also PVC clear hose, PVC water level hose, PVC transparent hose, PVC clear tube, vinyl tubing, PVC single layer hose, clear unreinforced hose, etc. Which is designed for low pressure delivery in multiple applications.

Application:

Suitable for low pressure transfer of various Fluids and air, such as fuel, water, light chemicals, oxygen, gas for watering systems, peristaltic pumps, electrical and thermal insulation, analytical systems in plant equipment, laboratories, watering system and many other low pressure industry applications.

Construction:

The tubing was extruded from high quality crystal clear virgin PVC compound, soft and tough PVC offers excellent flexibility and good abrasion resistance.

Features:

non toxic, clear PVC wall allows full visual flow of materials, weathering resistant, smooth tube for resistance to collection or blockage, easily characterized by a round, rectangular or square shape, different colors available, different sizes to fit standard commercial barbed fittings, we can also make the hose with non-phthalate formulations.

Specification:

Inner Diameter Outer Diameter Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
1/8 3 0.196 5 0.017 4 60 100 300
1/6 4 0.236 6 0.02 4 60 100 300
1/5 5 0.314 8 0.04 4 60 100 300
1/4 6 0.354 9 0.047 4 60 100 300
5/16 8 0.433 11 0.059 4 60 100 300
3/8 10 0.511 13 0.071 4 60 100 300
1/2 12 0.590 15 0.08 3 45 100 300
5/8 15 0.708 18 0.10 3 45 50 150
3/4 19 0.866 22 0.13 3 45 50 150
1 25 1.181 30 0.28 2 30 50 150
1-1/4 32 1.496 38 0.43 2 30 30 90
1-1/2 38 1.732 44 0.52 2 30 30 90
2 50 2.283 58 0.90 2 30 30 90
