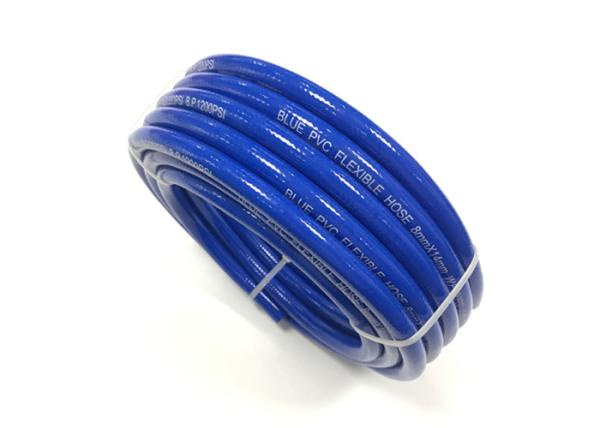

Plastic Blue PVC Air Hose / Flexible Polyester Fiber Reinforced Pipe Tube
Plastic Blue PVC Air Hose / Flexible Polyester Fiber Reinforced Pipe Tube
Plastic Blue PVC Air Hose / Flexible Polyester Fiber Reinforced Pipe Tube
Plastic Blue PVC Air Hose / Flexible Polyester Fiber Reinforced Pipe Tube
Plastic Blue PVC Air Hose / Flexible Polyester Fiber Reinforced Pipe Tube
Plastic Blue PVC Air Hose / Flexible Polyester Fiber Reinforced Pipe Tube
Specifications
Brand Name :
ET
Model Number :
1/4"-1''
Certification :
ISO9001:2008,SGS,ROHS
Place of Origin :
Shandong, China
MOQ :
1000m
Price :
$0.03-$5 / meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
6000tons / year
Delivery Time :
10-15 work days
Packaging Details :
transparent plastic film wrapped
product name :
high pressure pvc air hose
material :
pvc
working temperature :
-5℃-65℃
inner diameter :
6.5mm-25mm
sample :
availble
standard :
ISO; SGS
Description

plastic blue pvc air hose / flexible polyester fiber reinforced pipe tube

specification 1/4inch-1inch
color blue, red, orange, black etc.
length 50m, 100m/roll or as consumer's requst
working pressure 20bar-30bar
features Anti-UV, anti-abrasion, anti-chemical, flexibility.
application used for air production equipment.

Details:

Generally used for air production equipment.

Transfer compressed gas in garages and service stations.

Used for automatic machines and gas station equipment.

Used with pneumatic equipment and nail guns.

Used for fire fighting.

Passed the ROHS, PAHS test.

Anti-UV, anti-abrasion, anti-chemical, flexibility.

Working temperature: -5℃ to 65℃

Characteristics:

Being made of tough pvc materials and high tensile polyester reinforcement, this hose can work under very high working pressure. It is light, flexible, durable, anti-erosion, and explosion resistant.

Application:

The hose is widely used in pneumatic tools, pneumatic washing apparatus, compressors, engine components, machine service and civil engineering equipment.

Specification:

Inner Diameter Outer Diameter Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
1/4 6.5 0.472 12 0.11 20 300 100 300
5/16 8.5 0.551 14 0.13 20 300 100 300
3/8 10 0.629 16 0.17 20 300 100 300
1/2 13 0.787 20 0.25 20 300 100 300
5/8 16 0.984 25 0.39 20 300 100 300
3/4 19 1.102 28 0.45 20 300 50 150
1 25 1.338 34 0.56 20 300 50 150
