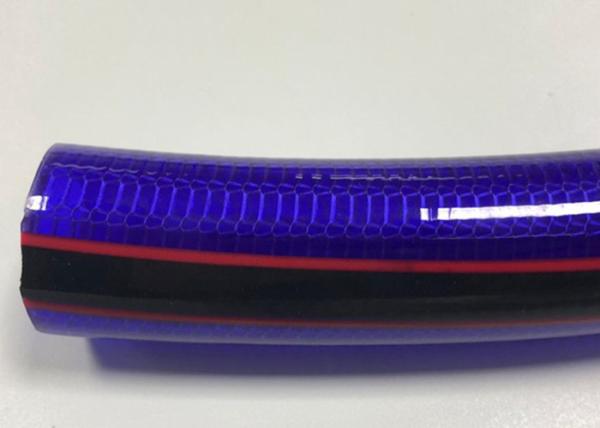

No Torsion PVC Braided Hose High Intensity Polyester Fiber Reinforced Hose
No Torsion PVC Braided Hose High Intensity Polyester Fiber Reinforced Hose
No Torsion PVC Braided Hose High Intensity Polyester Fiber Reinforced Hose
No Torsion PVC Braided Hose High Intensity Polyester Fiber Reinforced Hose
No Torsion PVC Braided Hose High Intensity Polyester Fiber Reinforced Hose
No Torsion PVC Braided Hose High Intensity Polyester Fiber Reinforced Hose
No Torsion PVC Braided Hose High Intensity Polyester Fiber Reinforced Hose
No Torsion PVC Braided Hose High Intensity Polyester Fiber Reinforced Hose
Specifications
Brand Name :
ET
Model Number :
1/8"-3''
Certification :
ISO9001:2008,SGS,ROHS
Place of Origin :
Shandong, China (Mainland)
MOQ :
1000m
Price :
$0.03-$5 / meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
6000tons / year
Delivery Time :
10-15 work days
Packaging Details :
transparent plastic film wrapped
type :
reinforced hose
material :
pvc and high tensity polyester
specification :
1/8'' - 3''
thickness :
2mm to 8mm
inner diameter :
4mm to 76mm
work temperature :
-5℃ - 65℃
Description

high- intensity polyester fiber reinforced hose / no torsion polyester knitted pvc hose

working pressure 2bar - 20bar
Color Clear, Transparent, Orange, Yellow, Red etc.
length 20m / 30m / 50m /100m or customized
standard SGS, ISO, ROHS
application industray, agriculture, homehouse
features
non-toxic, anti-high pressure, corrosion resistance

Features:

Conform to ROHS environmental protection recognition

Excellent chemical property, pressure loss is small

Degree of hardness is stable, good antiknock characteristic

Excellent flexibility, the bevelling radius is small

Application:

Transport water or other liquid

Industry robot, pneumatic tool

Vehicles service and house painting

Metal and electronic products protection coat.

Advantages:

1. non-toxic and odorless fiber weaving synthesis

This product USES the environmental protection high quality pvc materials and high strength synthetic fibre production, more than ordinary hose distortion resistance, high elasticity, soft light, not changeful form, tube surface can take color line, more beautiful.

2. strong anti-aging resistance and anti-aging resistance

Using the temperature of -5℃-65℃. High pressure and cheap wearing-resisting resistance to resistance to distortion, tensile resistance, fracture resistance, good weather ability.

3. winter is not hard to break.

The four seasons apply, good weather resistance, anti-ultraviolet, anti-aging, long service life. Easy to use, install everywhere.

4. extensive use.

Widely used in agriculture, civil engineering, landscape irrigation, vehicle washing and community, factories and mines, household cleaning, and other fields, is conveying air, water, oil and other liquid pipe.

Specification:

Inner Diameter Wall Thickness Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
1/8 4 0.078 2.0 0.051 12 175 100 300
13/64 5 0.098 2.5 0.076 12 175 100 300
1/4 6 0.098 2.5 0.087 12 175 100 300
5/16 8 0.098 2.5 0.105 10 145 100 300
3/8 10 0.098 2.5 0.130 10 145 100 300
1/2 12 0.118 3 0.185 9 130 100 300
5/8 16 0.118 3 0.230 8 116 100 300
3/4 19 0.118 3 0.270 6 87 100 300
7/8 22 0.118 3 0.305 5 73 100 300
1 25 0.118 3 0.340 4 60 100 300
1-1/4 32 0.157 4 0.590 4 60 100 300
1-1/2 38 0.157 4 0.690 4 60 50 150
1-3/4 45 0.217 5.5 1.140 4 60 50 150
2 50 0.236 6 1.380 4 60 50 150
2-1/2 64 0.276 7 2.030 4 60 50 150
3 76 0.630 8 2.750 4 60 50 150
