Durable PVC Nylon Braided Hose Pipe / Reinforced PVC Transparent Tube Non Toxic
Durable PVC Nylon Braided Hose Pipe / Reinforced PVC Transparent Tube Non Toxic
Durable PVC Nylon Braided Hose Pipe / Reinforced PVC Transparent Tube Non Toxic
Durable PVC Nylon Braided Hose Pipe / Reinforced PVC Transparent Tube Non Toxic
Durable PVC Nylon Braided Hose Pipe / Reinforced PVC Transparent Tube Non Toxic
Durable PVC Nylon Braided Hose Pipe / Reinforced PVC Transparent Tube Non Toxic
Durable PVC Nylon Braided Hose Pipe / Reinforced PVC Transparent Tube Non Toxic
Durable PVC Nylon Braided Hose Pipe / Reinforced PVC Transparent Tube Non Toxic
Specifications
Brand Name :
ET
Model Number :
1/8"-3''
Certification :
ISO9001:2008,SGS,ROHS
Place of Origin :
Shandong, China (Mainland)
MOQ :
1000m
Price :
$0.03-$5 / meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
6000tons / year
Delivery Time :
10-15 work days
Packaging Details :
transparent plastic film wrapped
model :
fiber reinforced pipe
size :
1/8'' - 3''
burst pressure: :
6bar-60bar
thickness :
2mm-8mm
features :
flexible, durable, wear resistant
working temperature :
-5℃ - 65℃
Description

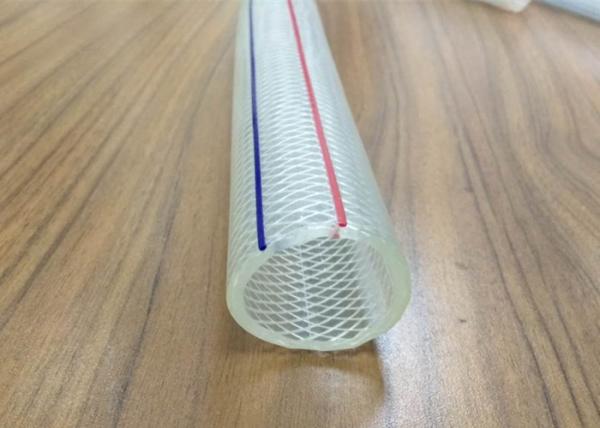

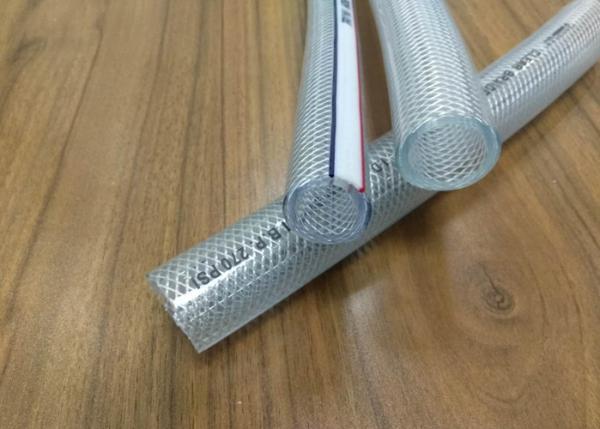

nylon braided pvc hose / pvc transparent tube / non-toxic plastic fibre reinforced pipe

PVC Hose reinforced with extra strong polyester braiding, the inner tube is made from virgin resin PVC giving it excellent flexibility and low temperature resistance. Flexible kink resistant design. The outer cover also uses virgin resin PVC that is UV, oil and abrasion resistant. Hose has a 2bar-20bar working pressure. Abrasion resistant, weather resistant, oil resistant, acid, alkali and corrosion resistant. High pressure bearable, flexible, light in weight, anti-bending and nice bright surface.

Specification 1/8 inch - 3inch
Color Clear, Transparent, Blue, Orange, Yellow, Red etc.
Quality Grade Food Grade, No Toxic Grade
length 20m/30m/50m/100m or customized
Characteristic flexible, transparent, corrosion resistant
Transporting Medium
Water, Oil, Air

Product features

Constructed with non-toxic compounds

Crystal clear allows visual confirmation of product flow

Longitudinally-reinforced to reduce elongation under pressure

Light weight, self-extinguishing, non-marking

Product description

A heavier walled crystal clear yarn reinforced hose suitable for a wide variety of food and beverage applications. Silicone-free, one-piece lengths, resistant to chemicals, compound hardness 73 +/-3 shore "A".

Applications:

food and beverage dispensing, deionized water, liquid food products, air and water lines, powdered food products, potable water transfer, air breathing lines, pneumatic lines, packaging machines.

Specification:

Inner Diameter Wall Thickness Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
1/8 4 0.078 2.0 0.051 12 175 100 300
13/64 5 0.098 2.5 0.076 12 175 100 300
1/4 6 0.098 2.5 0.087 12 175 100 300
5/16 8 0.098 2.5 0.105 10 145 100 300
3/8 10 0.098 2.5 0.130 10 145 100 300
1/2 12 0.118 3 0.185 9 130 100 300
5/8 16 0.118 3 0.230 8 116 100 300
3/4 19 0.118 3 0.270 6 87 100 300
7/8 22 0.118 3 0.305 5 73 100 300
1 25 0.118 3 0.340 4 60 100 300
1-1/4 32 0.157 4 0.590 4 60 100 300
1-1/2 38 0.157 4 0.690 4 60 50 150
1-3/4 45 0.217 5.5 1.140 4 60 50 150
2 50 0.236 6 1.380 4 60 50 150
2-1/2 64 0.276 7 2.030 4 60 50 150
3 76 0.630 8 2.750 4 60 50 150
