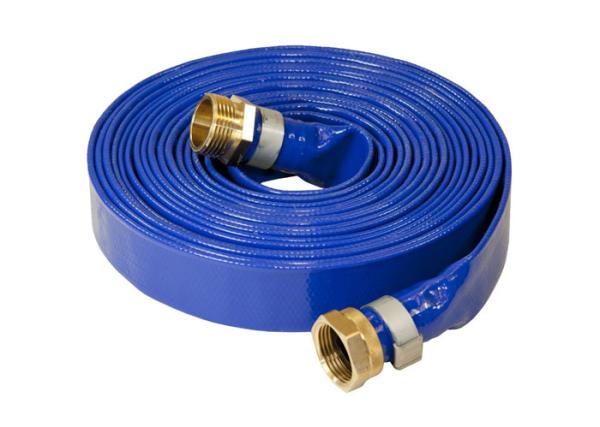

Durable PVC Layflat Hose / Pipe UV Resistant Flexible With Coupling Fittings
Durable PVC Layflat Hose / Pipe UV Resistant Flexible With Coupling Fittings
Durable PVC Layflat Hose / Pipe UV Resistant Flexible With Coupling Fittings
Durable PVC Layflat Hose / Pipe UV Resistant Flexible With Coupling Fittings
Durable PVC Layflat Hose / Pipe UV Resistant Flexible With Coupling Fittings
Durable PVC Layflat Hose / Pipe UV Resistant Flexible With Coupling Fittings
Durable PVC Layflat Hose / Pipe UV Resistant Flexible With Coupling Fittings
Durable PVC Layflat Hose / Pipe UV Resistant Flexible With Coupling Fittings
Specifications
Brand Name :
ET
Model Number :
1''-16''
Certification :
ISO9001:2008;SGS
Place of Origin :
Shandong, China (Mainland)
MOQ :
1000m
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
4000tons / per year
Delivery Time :
10-15 work days
Packaging Details :
woven plastic cloth wrapped, covered by paper card
name :
firefighter water hose
w.p. :
2bar - 10bar
standard :
ISO; SGS
production process :
korean advanced technology
temperature :
-5℃~65℃
feature :
light, durable, flexible etc.
Description

pvc layflat water hose / pipe with coupling fittings for agriculture industry use

size available from1 inch to 16 inch
Color Blue / Orange / Yellow / Red / Green etc.
Length per roll 10m/30m/50m/100m Or Customized
burst pressure 6bar - 30bar
features

non-toxic, durable, flexible, UV-resistant
reinforcement

high strength polyester yarn

Products Feature:

1. Made of high strength polyester yarn and PVC new material;

2. High resistance against pressure, corrosion resistance, aging

3. light weight, good flexibility, bright color and smooth coating;

4. Easy to move and low the installation costs

5. Keep the tube body soft and elastic under low temperature conditions

6. Resist kinking and twisting, abrasion, corrosion, high pressure and terrible weather.

7. Lightweight, flexible, easy for rolling-up and storage.

8. Multi-purpose, which used for irrigation, cement filing, river-way sand extraction, water discharge in construction site.

9. Made of environmental materials, non-smell, non-toxic, healthier.

10. New technique: unique one-step forming, high adhesion between lining, reinforcement plies and cover.

11. New character, higher bursting pressure, lighter weight and better abrasion resistance than traditional lay flat hose

Application:

Agricultural water supply and irrigation, Garden irrigation, Industrial water supply and discharge, Car washing, Daily House cleaning and Other cleaning equipment.

Widely used in agriculture Irrigation, landscape, environmental protection, fire protection, construction, engineering, drainage, mining, orchard, etc.

Packing:

Wrapped by plastic woven cloth and be fixed with ropes or packing straps

Specification:

Standard Duty PVC Layflat Hose

Inner Diameter Wall Thickness Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
1 25 0.047 1.20 0.15 5 75 100 300
1-1/4 32 0.047 1.20 0.17 5 75 100 300
1-1/2 38 0.049 1.25 0.19 5 75 100 300
2 51 0.043 1.10 0.22 4 60 100 300
2-1/2 64 0.047 1.20 0.30 4 60 100 300
3 76 0.047 1.20 0.35 4 60 100 300
4 102 0.047 1.20 0.53 4 60 100 300
5 127 0.053 1.35 0.75 4 60 100 300
6 153 0.053 1.35 0.90 4 60 100 300
8 203 0.071 1.80 1.60 3 45 100 300
10 254 0.094 2.40 2.60 3 45 50 150
12 305 0.094 2.40 3.10 2 30 50 150
14 358 0.118 3.00 5.00 2 30 50 150
16 408 0.118 3.00 6.00 2 30 50 150

Medium Duty PVC Layflat Hose:

Inner Diameter Wall Thickness Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
1 25 0.051 1.30 0.16 8 120 100 300
1-1/4 32 0.051 1.30 0.19 7 100 100 300
1-1/2 38 0.051 1.3 0.21 7 100 100 300
2 51 0.053 1.35 0.30 6 90 100 300
2-1/2 64 0.057 1.45 0.40 6 90 100 300
3 76 0.057 1.45 0.50 6 90 100 300
4 102 0.071 1.80 0.80 6 90 100 300
5 127 0.075 1.90 1.08 6 90 100 300
6 153 0.094 2.40 1.60 6 90 100 300
8 203 0.103 2.60 2.20 5 75 50 150

Heavy Duty PVC Layflat Hose:

Inner Diameter Wall Thickness Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
1 25 0.060 1.50 0.19 10 150 100 300
1-1/4 32 0.060 1.50 0.21 10 150 100 300
1-1/2 38 0.071 1.7 0.29 10 150 100 300
2 51 0.061 1.55 0.35 8 120 100 300
2 51 0.069 1.75 0.40 10 150 100 300
2-1/2 64 0.079 2.00 0.60 10 150 100 300
3 76 0.079 2.00 0.66 8 120 100 300
3 76 0.095 2.40 0.80 10 150 100 300
4 102 0.083 2.10 0.92 8 120 100 300
4 102 0.095 2.40 1.00 10 150 100 300
5 127 0.075 1.90 1.08 10 150 100 300
6 153 0.118 3.00 2.00 8 120 100 300
8 203 0.126 3.20 2.80 6 90 50 150
