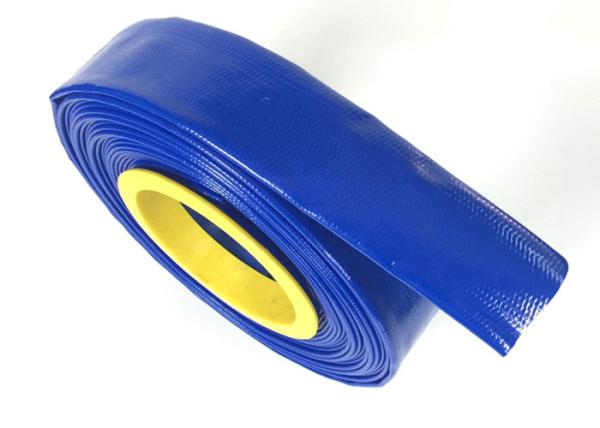

4 Bar / 6 Bar Medium Pressure Hose , Sprinkler Irrigation Hose PVC Material
4 Bar / 6 Bar Medium Pressure Hose , Sprinkler Irrigation Hose PVC Material
4 Bar / 6 Bar Medium Pressure Hose , Sprinkler Irrigation Hose PVC Material
4 Bar / 6 Bar Medium Pressure Hose , Sprinkler Irrigation Hose PVC Material
4 Bar / 6 Bar Medium Pressure Hose , Sprinkler Irrigation Hose PVC Material
4 Bar / 6 Bar Medium Pressure Hose , Sprinkler Irrigation Hose PVC Material
4 Bar / 6 Bar Medium Pressure Hose , Sprinkler Irrigation Hose PVC Material
4 Bar / 6 Bar Medium Pressure Hose , Sprinkler Irrigation Hose PVC Material
Specifications
Brand Name :
ET
Model Number :
1''-16''
Certification :
ISO9001:2008;SGS
Place of Origin :
Shandong, China (Mainland)
MOQ :
1000m
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
4000tons / per year
Delivery Time :
10-15 work days
Packaging Details :
woven plastic cloth wrapped, covered by paper card
Material :
PVC
inner diameter :
25-203mm
application :
irrigation, mining, construction etc.
name :
sprinkler irrigation pipe
fittings :
available
temperature :
-5℃~65℃
Description

4bar, 6bar medium pressure pvc layflat hose / pipe / tuing for sprinker irrigation

size 1-8inch
Color Blue / Orange / Yellow / Red / Green or customized
Length: 10m/30m/50m/100m Or Customized
W.P 4bar-8bar
B.P 12bar-24bar
thickness 1.3mm-2.6mm

Product Features:

1. Use environmental high quality PVC particles, Eco-friendly PVC, non-toxic, no odor; Do not harm the plant when used for agriculture irrigation

2. W.P.: 4 Bar-8Bar, medium pressure resistance

3. Coat smooth impermeable without delamination and degumming, small flow resistance, light and soft

4. Aging resistant,4-6years service life, have a long service time.

5. cold resistance, do not harden and working normally in the four seasons

6. No short of length, in strict accordance with the standard of customer production

7. Clear logo packaging printing, perfect visual experience

Application Area:

1: Agricultural irrigation, mining, construction, gardening, building drainage

2: Fit for water pump with head below 40m lay length within 1000m

3: Home gardening, public green space, Agricultural production, Horticultural production

Notes:

1. Fit for water pump with head below 40m lay length

2. Recommend laying length within 500 meters

Our Services

1. Reply to your enquiry within 24 hours

2. OEM/ODM available

3. Answer all your questions with enthusiasm

4. Providing professional solutions

Specification:

Inner Diameter Wall Thickness Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
1 25 0.051 1.30 0.16 8 120 100 300
1-1/4 32 0.051 1.30 0.19 7 100 100 300
1-1/2 38 0.051 1.3 0.21 7 100 100 300
2 51 0.053 1.35 0.30 6 90 100 300
2-1/2 64 0.057 1.45 0.40 6 90 100 300
3 76 0.057 1.45 0.50 6 90 100 300
4 102 0.071 1.80 0.80 6 90 100 300
5 127 0.075 1.90 1.08 6 90 100 300
6 153 0.094 2.40 1.60 6 90 100 300
8 203 0.103 2.60 2.20 5 75 50 150
