Professional PVC Suction Hose Corrugated / Flat Surface Water Delivery Hose Pipe
Professional PVC Suction Hose Corrugated / Flat Surface Water Delivery Hose Pipe
Professional PVC Suction Hose Corrugated / Flat Surface Water Delivery Hose Pipe
Professional PVC Suction Hose Corrugated / Flat Surface Water Delivery Hose Pipe
Professional PVC Suction Hose Corrugated / Flat Surface Water Delivery Hose Pipe
Professional PVC Suction Hose Corrugated / Flat Surface Water Delivery Hose Pipe
Specifications
Brand Name :
ET
Model Number :
3/4"-16''
Certification :
ISO9001:2008,SGS,ROHS
Place of Origin :
Shandong, China
MOQ :
1000m
Price :
$0.03-$5 / meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
6000tons / year
Delivery Time :
10-15 work days
Packaging Details :
transparent plastic film wrapped
product name :
PVC helix suction hose
standard :
ISO; SGS etc.
material :
pvc
sample :
available
oem/odm :
available
thickness :
2.5mm-12mm
Description

corrugated or flat surface pvc helix suction water delivery hose / pipe / tube ​

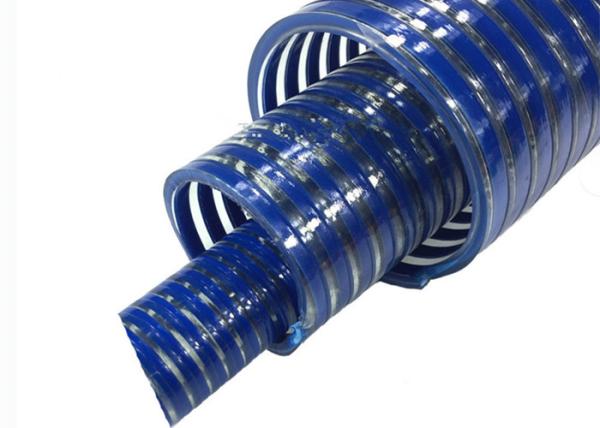

PVC Helix Suction Hose

C-Type

a. Made of quality PVC reinforced with an integral helix of rigid PVC.

b. Corrugated outer surface provide high flexibility and small bending radius.

c. Smooth inner surface is excellent for conveying liquid, air and powders.

d. High abrasion resistant.

F-Type

a. Smooth inner and outer surface.

b. Extensively used in industry and agriculture for pumping and transfer needs.

c. Suitable for conveying liquid and powder.

d. Excellent corrosion-proof protection for cable conduit and piping.

e. Excellent flexibility, light weight and small bending radius.

specification 3/4inch-16inch
color blue, red, orange, black etc.
length 10m, 20m, 30m, 50m/roll or as consumer's requst
working pressure 2bar to 6bar
features chemical resistance, non-toxic and odorless.
application suction seed, water, or powder

Product Description

1) The PVC hose is flexible, durable for hard weather and temperature, chemical resistance, non-toxic and odorless.
2) The food grade type can transport food, milk, drink, wine, etc.

3) It's with rib spiral to reinforce the pressure, when the hose suction seed, water, or powder, the hose will be no deformation.

4) Smooth or ribbed surface, bright outlook, the rib color can be different with the wall color.

5) Hose inner diameter size from 19mm--408mm.

6) Working Temperature: -5°C-65°C, we can do high-temperature resistant grade and low -temperature resistant grade.

Specification:

Inner Diameter Outer Diameter Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
3/4 19 0.945 24 0.25 6 90 50 150
1 25 1.181 30 0.33 6 90 50 150
1-1/4 32 1.457 37 0.38 6 90 50 150
1-1/2 38 1.732 44 0.58 6 90 50 150
2 51 2.284 58 0.82 5 75 50 150
2-1/2 64 2.835 72 1.17 5 75 30 90
3 76 3.307 84 1.40 4 60 30 90
4 102 4.488 114 2.70 4 60 30 90
5 127 5.512 140 3.60 4 60 30 90
6 153 6.575 167 5.00 3 45 20 60
8 203 8.543 217 6.25 3 45 10 30
10 254 10.787 270 10.00 2 30 10 30
12 305 12.953 329 18.00 2 30 10 30
14 358 15.039 382 20.00 2 30 50 150
16 408 17.008 432 23.00 2 30 50 150
