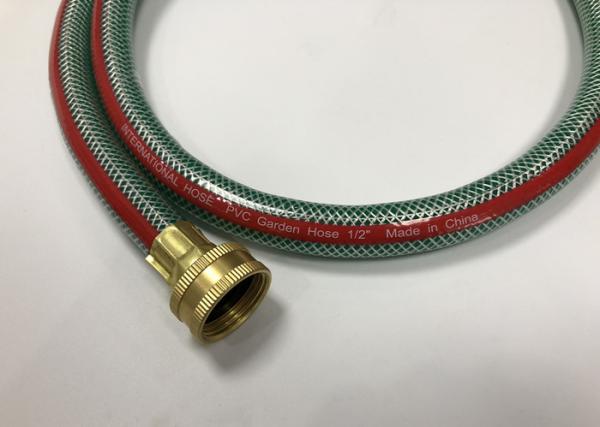

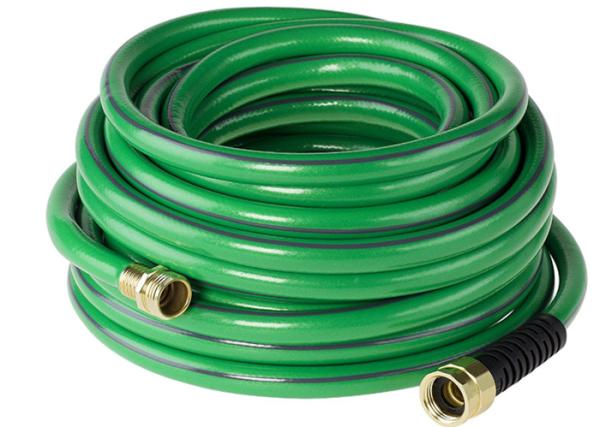

flex pvc garden water hose / pipe / tube with copper brass joint, metal fittings
name | pvc garden water hose |
specification | 1/2'', 5/8'', 3/4'', 1'' |
length | 20m / 30m / 50m or as consumer's requst |
working burst | 6bar, 8bar, 10bar |
features | light weight, high pressure resistant, high/low temperature resistant etc. |
applicaiton | pet/car washing and cleaning, garden irrigation etc. |
Construction:
Tube: smooth PVC compound
Reinforcement: high intensity polyester yarn.
Cover: Smooth transparent or opaque PVC compound, various color is available
Features:
1. Working Pressure:4 bar to 10bar depend on bore size and wall thickness.
2. Temperature: -5centigrade degree to +65 centigrade degree.
3. Knitted-polyester-reinforcement, anti-torsion
4. Non-toxic materials and high flexibility
5. Weather-resistant, can be in hot and cold weather
6. anti-age and anti-UV
7. Adapt to high pressure and hard weather conditions
8. Lightweight, easy to handle
9. Bright color, light, soft and elastic, mobile convenience, good weather resistance.
9. Flexible, portable, excellent function and adaptable to high pressure and tough weather.
10. Many colors available, can add new colors to satisfy customer’s request. The surface of the hose can be printing lettering according to the customer demand.
Application:
1. Gardening, Cleaning, parks, community
2. Irrigation flower garden and tress
3. Used for washing car
Customer Service:
1. Cover color: Blue, Green, Red, Orange, bright light green, etc. other colors are also welcomed
2. 10m, 20m, 30m, 50m, 100m Length/roll could be customized.
3. MOQ: 100meters. It could be MIXED by different size and colors as you need.
Specification:
Inner Diameter | Outer Diameter | Weight | W.P.(at 23℃) | Std Length | ||||
inch | mm | inch | mm | kg/m | bar | psi | m | ft |
1/2 | 12 | 0.606 | 15.4 | 0.09 | 8 | 120 | 50 | 150 |
0.629 | 16 | 0.12 | 10 | 145 | 50 | 150 | ||
5/8 | 15 | 0.748 | 19 | 0.15 | 8 | 120 | 50 | 150 |
0.787 | 20 | 0.19 | 10 | 145 | 50 | 150 | ||
3/4 | 19 | 0.905 | 23 | 0.18 | 6 | 90 | 30 | 90 |
0.945 | 24 | 0.23 | 8 | 120 | 30 | 90 | ||
1 | 25 | 1.181 | 30 | 0.29 | 6 | 90 | 30 | 90 |
