Flex PVC Suction Hose Sandblast Suction Discharge Vacuum Hose / Pipe
Flex PVC Suction Hose Sandblast Suction Discharge Vacuum Hose / Pipe
Flex PVC Suction Hose Sandblast Suction Discharge Vacuum Hose / Pipe
Flex PVC Suction Hose Sandblast Suction Discharge Vacuum Hose / Pipe
Flex PVC Suction Hose Sandblast Suction Discharge Vacuum Hose / Pipe
Flex PVC Suction Hose Sandblast Suction Discharge Vacuum Hose / Pipe
Specifications
Brand Name :
ET
Model Number :
1"-6''
Certification :
ISO9001:2008,SGS,ROHS
Place of Origin :
Shandong, China
MOQ :
1000m
Price :
$0.03-$5 / meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
6000tons / year
Delivery Time :
10-15 work days
Packaging Details :
transparent plastic film wrapped
product name :
sand blast suction hose
material :
pvc
working temperature :
-5℃-65℃
specification :
1''-6''
sample :
available
weight :
0.5kg/m - 5kg/m
Description

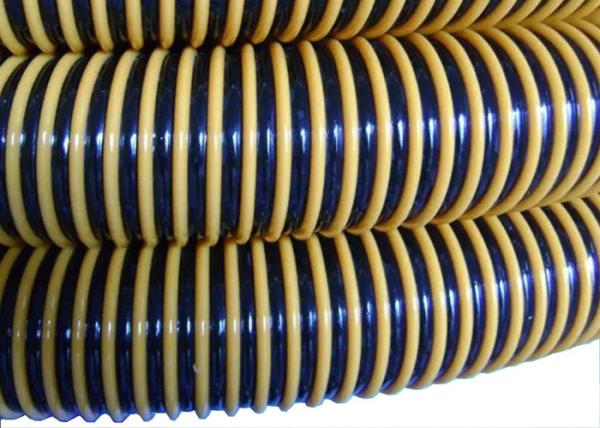

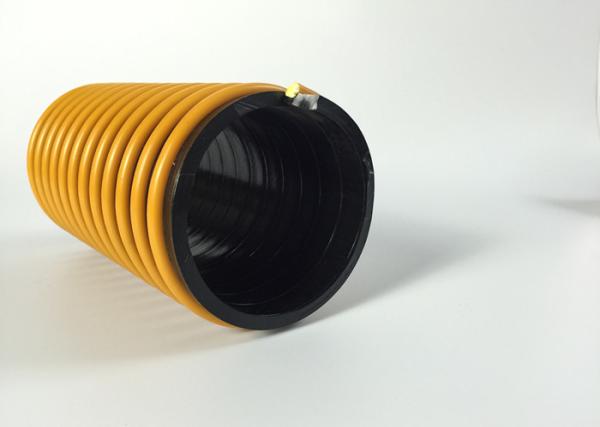

flex pvc sandblast suction discharge vacuum hose / pipe with long service time

specification 25mm to 152mm
color yellow, blue, gray, red, orange, black etc.
length 30m/roll to 50m/roll or customized
working pressure 4bar to 8bar
burst pressure 12bar to 24bar
usage convey water, oil and power, abrasive mineral sands

application

1.Very ideally for conveying water, oil and power, abrasive mineral sands, gravel, cement, chips, shavings, construction, agricultural, and industrial service applications.

2. Widely used for pumping and delivery fluids such as water, oil and powder in agriculture, factory and construction, can fit to PVC pipe by PVC glue.

3. Especially ideal for ventilation and air conditioning system, industrial vacuum cleaner, and granulate conveying systems.

As suction and transport hose suitable for below substance.

1) Gaseous medias such as vapors and smoke.

2) Liquid medias.

3) Small granules such as dusts, powders and etc.

4) Agriculture, fishing and construction.

4. Ideal substitute for rubber hose, cement hose and metal hose in many areas.

Feature:
Anti-abrasion, anti-corrosion, anti-aging
Super flexible, small bending radius, light weight
Smooth tube and excellent water supply and draining efficiency
High abrasion resistance and easy to transfer power
Coupling:
Camlock coupling and clamps are available separately or assembly with hose
Temperature range: -5℃ to +65℃

Specification:

Inner Diameter Outer Diameter Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
1 25 1.378 35 0.50 8 120 50 150
1-1/4 32 1.654 42 0.60 8 120 50 150
1-1/2 38 1.929 49 0.70 7 100 50 150
2 51 2.520 64 1.05 7 100 50 150
2-1/2 63 3.031 77 1.39 6 90 50 150
3 76 3.622 92 1.70 6 90 30 90
4 102 4.724 120 2.85 5 75 30 90
5 127 5.708 145 3.90 4 60 30 90
6 152 6.732 171 5.00 4 60 30 90
