High Pressure PVC Steel Wire Hose / Wire Reinforced Suction Hose UV Chemical Resistant
High Pressure PVC Steel Wire Hose / Wire Reinforced Suction Hose UV Chemical Resistant
High Pressure PVC Steel Wire Hose / Wire Reinforced Suction Hose UV Chemical Resistant
High Pressure PVC Steel Wire Hose / Wire Reinforced Suction Hose UV Chemical Resistant
High Pressure PVC Steel Wire Hose / Wire Reinforced Suction Hose UV Chemical Resistant
High Pressure PVC Steel Wire Hose / Wire Reinforced Suction Hose UV Chemical Resistant
High Pressure PVC Steel Wire Hose / Wire Reinforced Suction Hose UV Chemical Resistant
High Pressure PVC Steel Wire Hose / Wire Reinforced Suction Hose UV Chemical Resistant
Specifications
Brand Name :
ET
Model Number :
1/4"-10"
Certification :
ISO9001:2008,SGS,ROHS
Place of Origin :
Shandong, China (Mainland)
MOQ :
1000m
Price :
$0.1-$5 / meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
6000tons / year
Delivery Time :
10-15 work days
Packaging Details :
woven plastic cloth wrapped
Material :
PVC and Steel Wire
size :
1/4inch - 10inch
cover :
smooth
Working pressure: :
2bar-10bar
color :
transparent, yellow, green etc.
sample :
free available
Description

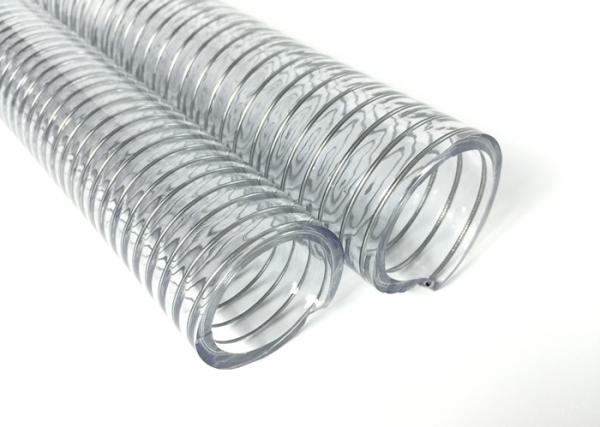

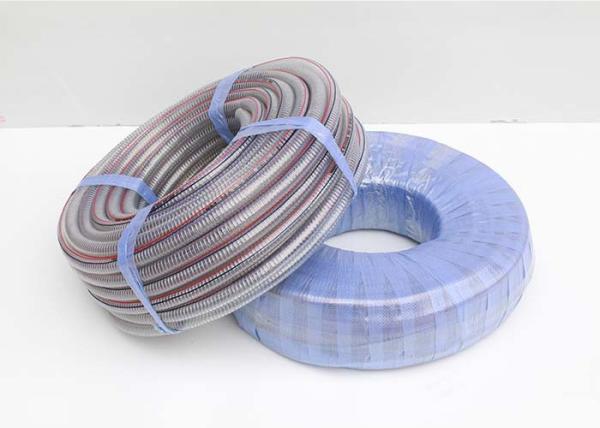

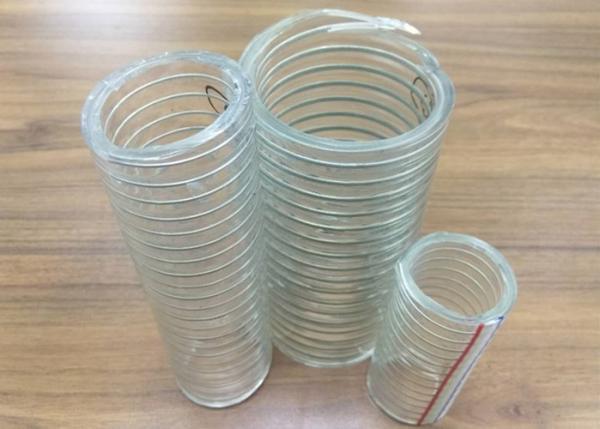

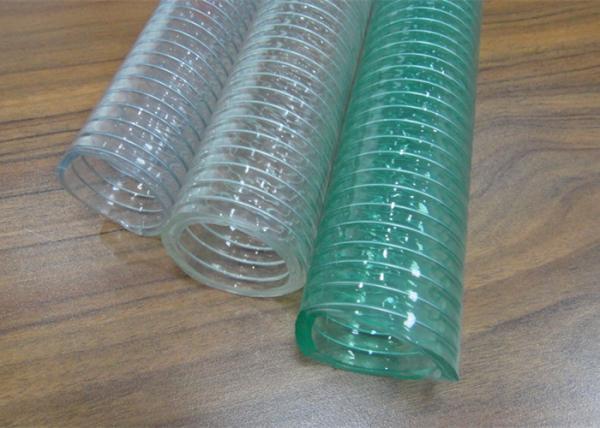

high pressure pvc spiral wire reinforced suction hose pipe with UV chemical resistant

Inner Diameter: 6mm-250mm
Outer diameter 11mm-276mm
Length: 20m/30m/50m/100m or customized
features Chemical Resistant, Weather Resistant, oil resistant
reinforced material spiral zinc-plated steel wire
working temperature -5℃ - 65℃

this pvc wire reinforced hose with good flexibility and transparency, it has low temperature resistance, acid-resisting, alkali-resisting, corrosivity resistance, anti-static, It is suitable for transportation of gasoline, diesel.

Features:

Used for drawing and conveying water, oil and powder in factory, agriculture.

Suitable for high strength working environment like suction and discharge for sand

Spiral steel wire reinforced incorporated within the wall of flexible PVC tubing

Good adaptability to hard weather condition and minus pressure, small bending radius, anti-abrasion

High-temperature resistant to 100℃

Low-temperature resistant to -40℃, keep good flexibility

​Application:

​used for drawing and conveying water, oil and powder in factory, agriculture.

Our Services

Quality & Service: our priority has always been providing our clients with great quality products and superior customer service.

Quick Lead Time: We're dedicated to providing the quickest turnaround times and work very hard to ensure that all of your deadlines are met.

Unbeatable Prices: we are manufacture, we continuously strive to find ways of reducing our production costs.

Special Offers: order to maintain our competitive edge, we are constantly running special offers on our promotion gifts, consumer goods, and design services.


Specification:

Inner Diameter Outer Diameter Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
1/4 6 0.433 11 0.12 10 145 100 300
5/16 8 0.551 14 0.15 10 145 100 300
3/8 10 0.629 16 0.20 10 145 100 300
1/2 12 0.708 18 0.22 8 120 100 300
5/8 15 0.866 22 0.31 8 120 100 300
3/4 19 0.984 25 0.36 8 120 50 150
1 25 1.299 33 0.54 8 120 50 150
1-1/4 32 1.614 41 0.78 7 100 40 120
1-1/2 38 1.889 48 1.05 6 90 40 120
1-3/4 45 2.204 56 1.30 6 90 40 120
1-7/8 48 2.322 59 1.40 6 90 40 120
2 50 2.441 62 1.60 5 75 40 120
2-1/4 58 2.755 70 2.00 5 75 30 90
2-1/2 63 3.149 80 2.80 5 75 30 90
3 75 3.582 91 3.50 4 60 30 90
3-1/2 90 4.251 108 4.50 4 60 20 60
4 100 4.645 118 4.80 3 45 20 60
5 127 5.629 143 6.00 3 45 20 60
6 152 6.692 170 9.00 3 45 10 30
8 200 8.818 224 12.00 3 45 10 30
10 250 10.866 276 23.00 2 30 10 30
