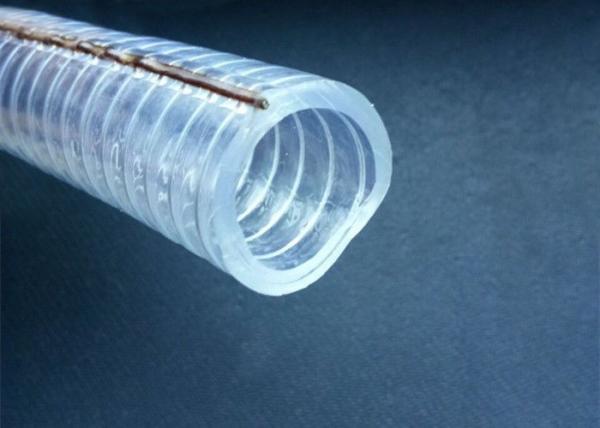

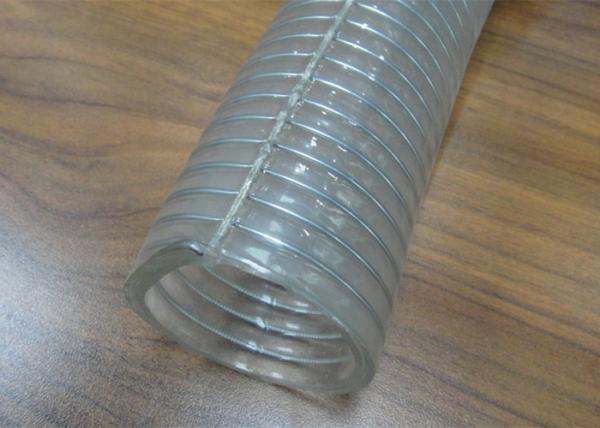

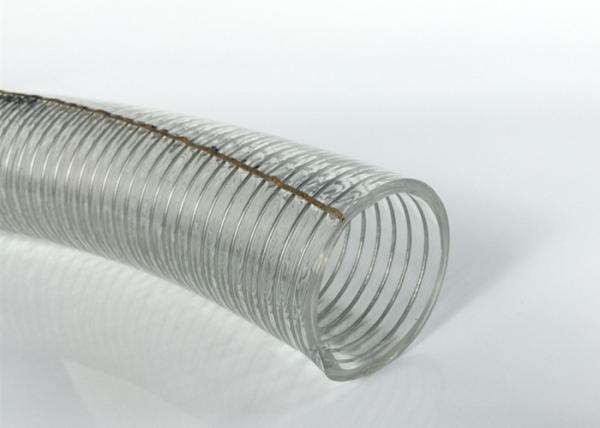

Anti Static PVC Steel Wire Hose / Clear Flex Hose For Convey Gas Liquid Powder
Anti Static PVC Steel Wire Hose / Clear Flex Hose For Convey Gas Liquid Powder
Anti Static PVC Steel Wire Hose / Clear Flex Hose For Convey Gas Liquid Powder
Anti Static PVC Steel Wire Hose / Clear Flex Hose For Convey Gas Liquid Powder
Anti Static PVC Steel Wire Hose / Clear Flex Hose For Convey Gas Liquid Powder
Anti Static PVC Steel Wire Hose / Clear Flex Hose For Convey Gas Liquid Powder
Anti Static PVC Steel Wire Hose / Clear Flex Hose For Convey Gas Liquid Powder
Anti Static PVC Steel Wire Hose / Clear Flex Hose For Convey Gas Liquid Powder
Anti Static PVC Steel Wire Hose / Clear Flex Hose For Convey Gas Liquid Powder
Anti Static PVC Steel Wire Hose / Clear Flex Hose For Convey Gas Liquid Powder
Specifications
Brand Name :
ET
Model Number :
1/4"-10"
Certification :
ISO9001:2008,SGS,ROHS
Place of Origin :
Shandong, China (Mainland)
MOQ :
1000m
Price :
$0.1-$5 / meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
6000tons / year
Delivery Time :
10-15 work days
Packaging Details :
woven plastic cloth wrapped
material :
PVC steel wire reinforced hose
size :
1''-4''
inner diameter :
25mm-100mm
thickness :
4mm-9mm
working temperature :
-5℃ - 65℃
quality grade :
anti-static grade
Description

anti static clear flex pvc steel wire reinforced hose for convey gas liquid powder

The anti static pvc steel wire reinforced hose is a three layer structure, inside and outside the two layers is PVC soft plastic, the middle layer is a steel wire reinforced structure, or steel wire or spiral steel wire, and copper wire inserted into the hose, the internal increase in the steel layer to cause PVC pipe strength, distortion, quality and other aspects of a change in the modified or enhanced PVC pipe.

working pressure ​3bar-8bar
Color Clear, Transparent, Orange, Yellow, Red and so on.
length 20m / 30m /40m / 50m or customized
burst pressure 9bar-24bar
application ​convey oil, gas, water, powder etc.
features
anti-static, flexible, durable, non smell, light weight

features:

PVC steel pipe for the embedded steel skeleton PVC hose. The inner and outer tube walls are transparent, smooth, no bubbles, fluid delivery is clearly visible; low concentration of acid and alkali, high elasticity, easy aging, long service life; high pressure, in high pressure vacuum to maintain the status quo.

1. available with various colors and markings

2. achieving both flexibility and high pressure resistance, light weight

3. proving long life through excellent adhesive strength between inner and outer tube.

4. no tearing off by excessive pressure and stretch.

production process

1. Material

2. Weaving steel wire

3. Cooling and Making line

4. PVC steel wire hose

5. Rolling

6. Packing

7. Waiting for loading

Specification:

Inner Diameter Outer Diameter Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
1 25 1.299 33 0.54 8 120 50 150
1-1/4 32 1.614 41 0.78 7 100 40 120
1-1/2 38 1.889 48 1.05 6 90 40 120
1-3/4 45 2.204 56 1.30 6 90 40 120
1-7/8 48 2.322 59 1.40 6 90 40 120
2 50 2.441 62 1.60 5 75 40 120
2-1/4 58 2.755 70 2.00 5 75 30 90
2-1/2 63 3.149 80 2.80 5 75 30 90
3 75 3.582 91 3.50 4 60 30 90
3-1/2 90 4.251 108 4.50 4 60 20 60
4 100 4.645 118 4.80 3 45 20 60
