PVC Steel Wire Reinforced Hose Polyester And Fiber Composite Hose Color Customized
PVC Steel Wire Reinforced Hose Polyester And Fiber Composite Hose Color Customized
PVC Steel Wire Reinforced Hose Polyester And Fiber Composite Hose Color Customized
PVC Steel Wire Reinforced Hose Polyester And Fiber Composite Hose Color Customized
PVC Steel Wire Reinforced Hose Polyester And Fiber Composite Hose Color Customized
PVC Steel Wire Reinforced Hose Polyester And Fiber Composite Hose Color Customized
PVC Steel Wire Reinforced Hose Polyester And Fiber Composite Hose Color Customized
PVC Steel Wire Reinforced Hose Polyester And Fiber Composite Hose Color Customized
Specifications
Brand Name :
ET
Model Number :
1/4"-10"
Certification :
ISO9001:2008,SGS,ROHS
Place of Origin :
Shandong, China (Mainland)
MOQ :
1000m
Price :
$0.1-$5 / meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
6000tons / year
Delivery Time :
10-15 work days
Packaging Details :
woven plastic cloth wrapped
material :
pvc, steel wire, fiber
size :
1inch-4inch
inner diameter :
25mm-100mm
thickness :
4mm-8mm
color :
transparent or customized
standard :
SGS;ISO
Description

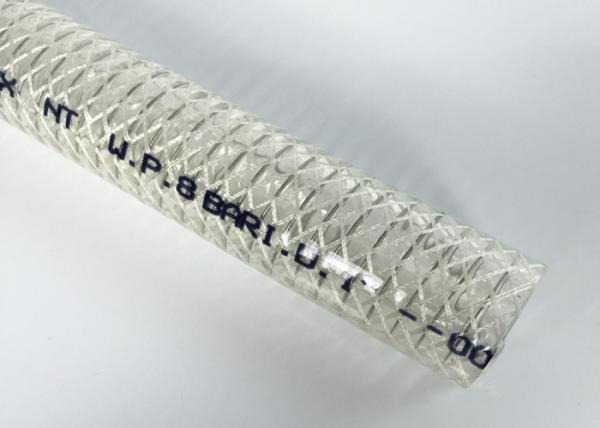

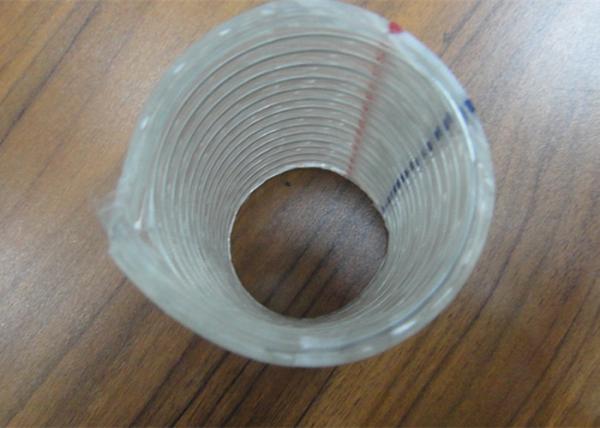

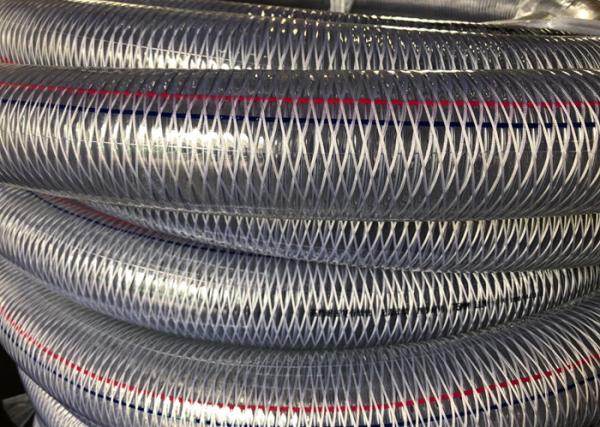

transparent flexible high pressure pvc steel wire fiber composite hose pipe tube

specification 1'' -4''
reinforced steel wire and fiber reinforce
length 20m/30m/40m/50m or customized
work pressure 4ar-8bar
application conveying liquid, gas and powder
features
flexible, durable, non smell, light weight

pvc steel wire and polyester fiber composite hose

Features:

1. Use high-strength fibers and high-quality galvanized spring steel wire as reinforcement.

2. The pressure resistance was enhanced 2-4 times than the single spiral wire reinforced hose

3. Inserted the copper into the hose can avoid blockage of the internal flow because of the static electricity.

4. This hose, with fiber and steel wire screwing inlaid in the hose, is light, transparent, with high pressure and small bending radius.

5. It has good adaptability to hard weather conditions and minus pressure.

6. With colorful symbol lines on the surface of the hose, it can be more beautiful.

7. non-toxic, without odor, anti-radiation

Applications:

1. This hose is widely used for drawing and conveying water, oil and powder in the factories, agriculture, engineering, foodstuffs and sanitation lines.

2. The hose used for foodstuffs is made of special materials. It is non-toxic, light, without odor and transparent. This hose can be used for conveying milk, beverage, distilled liquor, beer, jam and other foods.

3. We can also insert the copper wire into the hose. This hose can avoid the block of the flowing in the hose due to the static, and protect users from getting electric shock or electric current impingement.

Specification:

Inner Diameter Outer Diameter Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
1 25 1.299 33 0.54 8 120 50 150
1-1/4 32 1.614 41 0.78 8 120 40 120
1-1/2 38 1.889 47 1.05 7 105 40 120
2 50 2.441 61 1.60 7 105 40 120
2-1/2 64 3.149 78 2.80 7 105 30 90
3 75 3.582 90 3.50 6 90 30 90
3-1/2 90 4.251 106 4.50 5 75 20 60
4 100 4.645 116 4.80 4 60 20 60
