5 / 8 Inch 16mm Braided Flexible Water Hose Pipe Tube 2mm - 8mm Thickness
5 / 8 Inch 16mm Braided Flexible Water Hose Pipe Tube 2mm - 8mm Thickness
5 / 8 Inch 16mm Braided Flexible Water Hose Pipe Tube 2mm - 8mm Thickness
5 / 8 Inch 16mm Braided Flexible Water Hose Pipe Tube 2mm - 8mm Thickness
5 / 8 Inch 16mm Braided Flexible Water Hose Pipe Tube 2mm - 8mm Thickness
5 / 8 Inch 16mm Braided Flexible Water Hose Pipe Tube 2mm - 8mm Thickness
5 / 8 Inch 16mm Braided Flexible Water Hose Pipe Tube 2mm - 8mm Thickness
5 / 8 Inch 16mm Braided Flexible Water Hose Pipe Tube 2mm - 8mm Thickness
Specifications
Brand Name :
ET
Model Number :
1/8"-3''
Certification :
ISO9001:2008,SGS,ROHS
Place of Origin :
Shandong, China (Mainland)
MOQ :
1000m
Price :
$0.03-$5 / meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
6000tons / year
Delivery Time :
10-15 work days
Packaging Details :
transparent plastic film wrapped
material :
pvc
name :
pvc clear braided hose
specification :
1/8'' - 3''
thickness :
2mm-8mm
inner diameter :
4mm-76mm
work temperature :
-5℃ - 65℃
Description

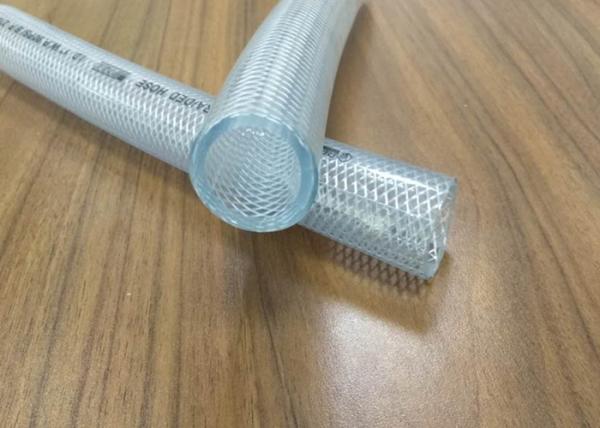

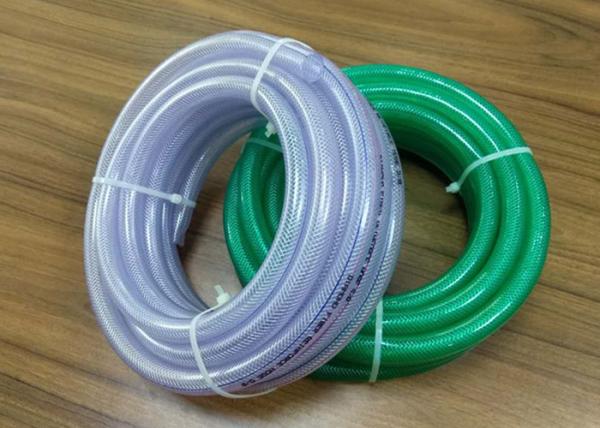

5/8 inch 16mm flexible pvc braided fiber strength water hose pipe tube

working pressure 2bar - 20bar
Color Clear, Transparent, Orange, Yellow, Red etc.
length 20m / 30m / 50m /100m or customized
standard SGS, ISO, ROHS
burst pressure 6bar - 60bar
reinforced
polyester yarn

The pvc braided hose pipe is ideal for liquids and air within 20 bar pressure, reinforced with high tensile polyester fibres, flexible and extremely durable under normal operating conditions and is resistant to a wide range of chemicals

Features:

Longitudinally-reinforced to reduce elongation under pressure

Light weight and self-extinguishing

Constructed with non-toxic compounds

Crystal clear allows visual confirmation of product flow

Description:

A lightweight standard wall crystal clear yarn reinforced hose suitable for a wide variety of food and beverage applications. Non-marking, silicone-free, non-conductive, one-piece lengths, resistant to chemicals, compound hardness 73 +/-3 shore "A".

Application:

food and beverage dispensing, deionized water, liquid food products, air and water lines, powdered food products, potable water transfer, air breathing lines, pneumatic lines, packaging machines. Working pressure: 200 psi at 70 degrees F and 100 psi at 122 degrees F. Compliance: 3A, FDA, NSF, RoHS, UL, USDA, and USP.

Specification:

Inner Diameter Wall Thickness Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
1/8 4 0.078 2.0 0.051 12 175 100 300
13/64 5 0.098 2.5 0.076 12 175 100 300
1/4 6 0.098 2.5 0.087 12 175 100 300
5/16 8 0.098 2.5 0.105 10 145 100 300
3/8 10 0.098 2.5 0.130 10 145 100 300
1/2 12 0.118 3 0.185 9 130 100 300
5/8 16 0.118 3 0.230 8 116 100 300
3/4 19 0.118 3 0.270 6 87 100 300
7/8 22 0.118 3 0.305 5 73 100 300
1 25 0.118 3 0.340 4 60 100 300
1-1/4 32 0.157 4 0.590 4 60 100 300
1-1/2 38 0.157 4 0.690 4 60 50 150
1-3/4 45 0.217 5.5 1.140 4 60 50 150
2 50 0.236 6 1.380 4 60 50 150
2-1/2 64 0.276 7 2.030 4 60 50 150
3 76 0.630 8 2.750 4 60 50 150
